Name: IRFU9024NPBF
Brand: Infineon Technologies
SKU: IRFU9024NPBF-ND
Price: 0.8211 EUR
Availability: InStock

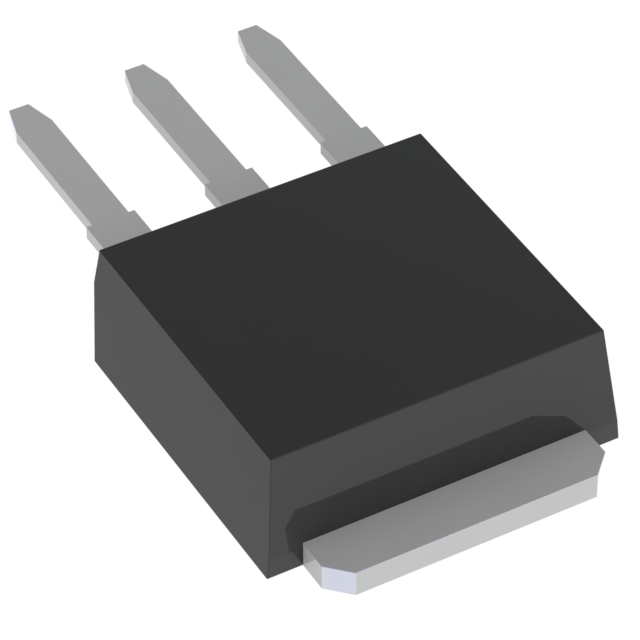

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

IRFU9024NPBF
DigiKey Part Number	IRFU9024NPBF-ND
Manufacturer	Infineon Technologies
Manufacturer Product Number	IRFU9024NPBF
Description	MOSFET P-CH 55V 11A IPAK
Manufacturer Standard Lead Time	26 Weeks
Customer Reference
Detailed Description	P-Channel 55 V 11A (Tc) 38W (Tc) Through Hole IPAK (TO-251AA)
Datasheet	Datasheet
EDA/CAD Models	IRFU9024NPBF Models

Product Attributes

Type	Description	Select All
Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Mfr	Infineon Technologies
Series	HEXFET®
Packaging	Tube
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	11A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	175mOhm @ 6.6A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	350 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	38W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-
Qualification	-
Mounting Type	Through Hole
Supplier Device Package	IPAK (TO-251AA)
Package / Case	TO-251-3 Short Leads, IPAK, TO-251AA
Base Product Number	IRFU9024
