Name: DAK-68A
Brand: Power Integrations
SKU: 596-1007-ND
Price: 32.4989 EUR
Availability: OutOfStock

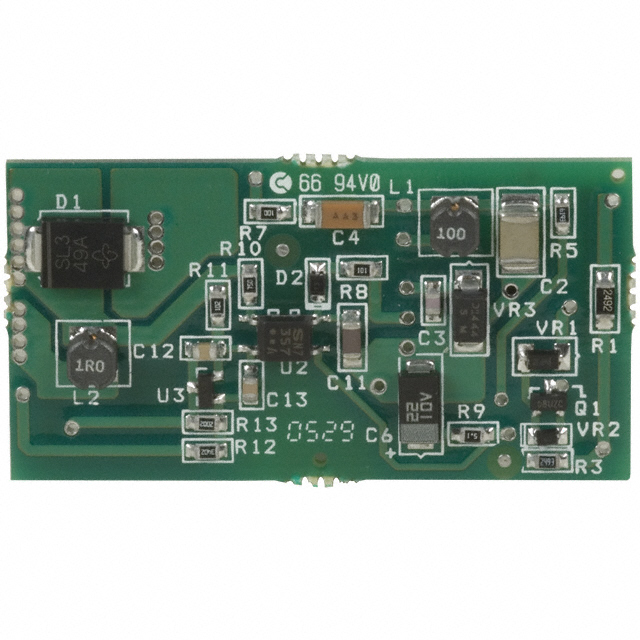

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

DAK-68A
Digi-Key Part Number	596-1007-ND
Manufacturer	Power Integrations
Manufacturer Product Number	DAK-68A
Description	KIT DESIGN ACCELERATOR POE CONV
Manufacturer Standard Lead Time	12 Weeks
Detailed Description	DPA423, DPA424, DPA425 DPA-Switch® Special Purpose DC/DC, Power Over Ethernet 1, Non-Isolated Outputs Evaluation Board
Customer Reference
Datasheet	Datasheet

Product Attributes

Type	Description	Select All
Category	Development Boards, Kits, Programmers Evaluation Boards DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Mfr	Power Integrations
Series	DPA-Switch®
Package	Box
Product Status	Active
Main Purpose	Special Purpose DC/DC, Power Over Ethernet
Outputs and Type	1, Non-Isolated
Power - Output	6.6 W
Voltage - Output	3.3V
Current - Output	2A
Voltage - Input	36V ~ 57V
Regulator Topology	Flyback
Frequency - Switching	400kHz
Board Type	Bare (Unpopulated) and Fully Populated
Supplied Contents	Board(s)
Utilized IC / Part	DPA423, DPA424, DPA425
Base Product Number	DAK-68

Documents & Media

Resource Type	Link
Datasheets	EPR-68 DC-DC Products, Selector Guide DPA422-426 DPA Switch Family
Reference Design Library	DER-096: 3.3V @ 2A, 5 & 12V @ 200mA, 48V in DER-112(#1): 500mA @ 40V Max, 24V in, Boost DER-112(#2): 500mA @ 60V Max, 24V in, Boost
HTML Datasheet	EPR-68
