Motion SPM® Smart Power Modules |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed-Up Design Time and Increase ReliabilityMotion SPM® modules integrate drive and protection circuitry into a single package. Simplify and accelerate your design as you optimize efficiency. These devices are sometimes referred to as Intelligent Power Modules (IPM) by the market. Integrated Motor Drive + Protection
ON Semiconductor offers a full line of highly integrated smart power modules that provide efficient motor control for a wide range of energy-savvy applications. The SPM series provides solutions that drive efficiency while simplifying system design, reducing board space, improving system reliability, and speeding time-to-market. Why choose SPM® product? Motion SPM® Smart Power Modules integrate discrete devices into one highly efficient and reliable package. Our SPM® packaging and process technology is a critical differentiator in high power motor control applications
SPM 2 Series ModulesTargets high-power applications up to 75 A/600 V and up to 35 A/1200 V Sense-IGBT’s on low-side for over-current protection and a built-in thermistor for temperature monitoring. Modules are 15 A – 30 A in ceramic substrate packaging and 50 A, 75 A, 600 V and 1200 V in Direct Bond Copper (DBC) substrate packaging to reduce thermal impedance.
SPM 3 Eval Board
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Part Number | Description | Current | Voltage | Configuration | |
|---|---|---|---|---|---|
 |
FSBB20CH120D | SPM3V 1200V V2 20A | 20 A | 1200 V | 3 Phase Inverter |
|
|
FSBB15CH120D | SPM3V 1200V V2 15A | 15 A | 1200 V | 3 Phase Inverter |
|
|
FNB35060T | POWER DRVR MOD 600V 50A 27DIP | 50 A | 600 V | 3 Phase Inverter |
|
|
FNB34060T | POWER DRVR MOD 600V 40A 27DIP | 40 A | 600 V | 3 Phase Inverter |
|
|
FNB33060T | Power Driver Module SPM27-RA | 30 A | 600 V | 3 Phase |
|
|
FNB33060T | Power Driver Module SPM27-RA | 30 A | 600 V | 3 Phase |
|
|
FPAB20BH60B | Power Driver Module 27-DIP | 20 A | 600 V | 1 Phase |
|
|
FPDB30PH60 | Power Driver Module SPM27GA | 20 A | 600 V | 2 Phase |
|
|
FPDB40PH60B | Power Driver Module SPM27GC | 40 A | 600 V | 2 Phase |
|
|
FPDB50PH60 | Power Driver Module SPM27HA | 30 A | 600 V | 2 Phase |
|
|
FPDB60PH60B | Power Driver Module SPM27-HC | 60 A | 600 V | 2 Phase |
|
|
FSBS3CH60 | Power Driver Module SPM27BA | 3 A | 600 V | 3 Phase |
|
|
FSBS15CH60F | Power Driver Module SPM27BA | 15 A | 600 V | 3 Phase |
|
|
FSBB10CH120D | Power Driver Module | 10 A | 1200 V | 3 Phase |
|
|
FSBB10CH120DF | Power Driver Module 27-DIP | 10 A | 1200 V | 3 Phase |
|
|
FSBB15CH60D | Power Driver Module SPM27CC | 15 A | 600 V | 3 Phase Inverter |
|
|
FSBB20CH60D | Power Driver Module SPM27CC | 20 A | 600 V | 3 Phase Inverter |
|
|
FSBB30CH60D | Power Driver Module SPM27CC | 30 A | 600 V | 3 Phase Inverter |
|
|
FSBB30CH60DF | Power Driver Module | 30 A | 600 V | 3 Phase Inverter |
|
|
FSBF15CH60BT | Power Driver Module SPM27JA | 15 A | 600 V | 3 Phase |
|
|
FSBF10CH60B | Power Driver Module SPM27JA | 10 A | 600 V | 3 Phase |
|
|
FSBF10CH60BT | Power Driver Module SPM27JA | 10 A | 600 V | 3 Phase |
|
|
FSBF5CH60B | Power Driver Module SPM27JA | 5 A | 600 V | 3 Phase |
|
|
FSBB30CH60CT | Power Driver Module | 30 A | 600 V | 3 Phase |
|
|
FSBB20CH60CT | Power Driver Module SPM27CC | 20 A | 600 V | 3 Phase |
|
|
FSBB20CH60C | Power Driver Module SPM27CC | 20 A | 600 V | 3 Phase |
|
|
FSBB30CH60C | Power Driver Module SPM27CC | 30 A | 600 V | 3 Phase |
|
|
FSBB15CH60C | Power Driver Module SPM27CC | 15 A | 600 V | 3 Phase |
SPM Evaluation Boards

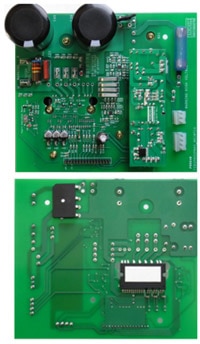

FEBSPM3SPM45_M01MTCA - Motion SPM3/45H Evaluation Board
Compatible with: SPM3V2_V4 & SPM45H Modules
Key Features
- AC Line Input Connection
- On-Board Bulk Capacitors
- Bulk Capacitor Charge Indicator
- On-Board High-Voltage SMPS
- +15.75 VDC, +5 VDC, +3.3 VDC Outputs
- Short-Circuit Current Protection
- Triple Open-Emitter Connections to Negative DC Link
- MCU Interface Connections
- 3 High-Side, 3 Low-Side Gate Drive Inputs
- Fault Output
- Bus Voltage Sense Output
- 3-Phase Current Sensing, Amplified
- NTC Output Signal (when applicable)
- Current Sense Resistors (when applicable)
SPM 45 Eval Board
SPM 45 Series Modules
Targets cost-sensitive applications below 20 A in ceramic substrate packaging with built-in bootstrap diodes and thermistor for temperature monitoring. Input gate signals are active high.
| Part Number | Description | Current | Voltage | Configuration | |
|---|---|---|---|---|---|
|
|
FBA42060 | Power Driver Module 23-DIP | 20 A | 600 V | 1 Phase |
|
|
FNC42060F | Power Driver Module SPM26-AA | 20 A | 600 V | 3 Phase |
|
|
FNC42060F2 | Power Driver Module 26-DIP | 20 A | 600 V | 3 Phase |
|
|
FNA41060B2 | Power Driver Module SPM26-AAC | 10 A | 600 V | 3 Phase |
|
|
FNA41560B2 | Power Driver Module 26-DIP | 15 A | 600 V | 3 Phase |
|
|
FNA41060 | Power Driver Module SPM26-AA | 10 A | 600 V | 3 Phase |
|
|
FNA40560 | Power Driver Module SPM26-AA | 5 A | 600 V | 3 Phase |
|
|
FNA40860 | Power Driver Module SPM26-AA | 8 A | 600 V | 3 Phase |
|
|
FNA41560 | Power Driver Module SPM26-AA | 15 A | 600 V | 3 Phase |
|
|
FNB41560B2 | Power Driver Module | 15 A | 600 V | 3 Phase |
|
|
FNB40560 | Power Driver Module SPM26-AA | 5 A | 600 V | 3 Phase |
|
|
FNB41060 | Power Driver Module SPM26-AA | 10 A | 600 V | 3 Phase |
|
|
FNB41560 | Power Driver Module | 500mA | 600 V | 3 Phase |
|
|
FNB40560B2 | Power Driver Module 26-DIP | 5 A | 600 V | 3 Phase |
|
|
FNB43060T2 | Power Driver Module SPMAB-C26 | 30 A | 600 V | 3 Phase |
|
|
FSB43004A | Motor Driver Power 22-DIP | 3 Phase | ||
|
|
FSB44104A | Motor Driver Power 22-DIP | 3 Phase |
SPM Evaluation Boards
FEBSPM3SPM45_M01MTCA - Motion SPM3/45H Evaluation Board
Compatible with: SPM3V2_V4 & SPM45H Modules
Key Features
- AC Line Input Connection
- On-Board Bulk Capacitors
- Bulk Capacitor Charge Indicator
- On-Board High-Voltage SMPS
- +15.75 VDC, +5 VDC, +3.3 VDC Outputs
- Short-Circuit Current Protection
- Triple Open-Emitter Connections to Negative DC Link
- MCU Interface Connections
- 3 High-Side, 3 Low-Side Gate Drive Inputs
- Fault Output
- Bus Voltage Sense Output
- 3-Phase Current Sensing, Amplified
- NTC Output Signal (when applicable)
- Current Sense Resistors (when applicable)
SPM 5 Series Modules
Motion SPM® 5 series modules are based on fast-recovery MOSFET (FRFET®) technology as a compact inverter solution for small power motor drive applications such as fans and pumps. These modules contains six FRFET MOSFETs, three half-bridge gate driver HVICs, temperature sensing, and three bootstrap diodes in a compact package, fully isolated and optimized for thermal performance. Electromagnetic interference (EMI) characteristics are optimized via tuned switching and reduced parasitic inductance. Employing MOSFETs, they provide much more ruggedness and a larger safe operating area (SOA) than IGBT-based power modules. These modules are ideal for compact and reliable inverter designs where assembly space is constrained. Applications includes dishwashers, ceiling fans and pumps.
| Part Number | Description | Current | Voltage | Configuration | |
|---|---|---|---|---|---|
|
|
FSB52006S | Power Driver Module SPM23BA | 2.6 A | 60 V | 3 Phase |
|
|
FSB50450A | Power Driver Module 23-DIP | 1.5 A | 500 V | 3 Phase |
|
|
FSB50550A | Power Driver Module 23-DIP | 2 A | 500 V | 3 Phase |
|
|
FSB50450AS | Power Driver Module | 1.5 A | 500 V | 3 Phase |
|
|
FSB50250AS | Power Driver Module | 1.2 A | 500 V | 3 Phase |
|
|
FSB50550AS | Power Driver Module | 2 A | 500 V | 3 Phase |
|
FSB50550ASE | Power Driver Module 23-SMD | 2 A | 500 V | 3 Phase |
|
|
FSB50825AS | Power Driver Module | 3.6 A | 250 V | 3 Phase |
|
|
FSB50325AS | Power Driver Module 21-SMD | 1.7 A | 250 V | 3 Phase |
|
|
FSB50250A | Power Driver Module 23-DIP | 1.2 A | 500 V | 3 Phase |
|
|
FSB50325A | Power Driver Module 23-DIP | 1.7 A | 250 V | 3 Phase |
|
|
FSB50825A | Power Driver Module | 3.6 A | 250 V | 3 Phase |
|
|
FSB50325AT | Power Driver Module 23-DIP | 1.7 A | 250 V | 3 Phase |
|
|
FSB50250AT | Power Driver Module 23-DIP | 1.2 A | 500 V | 3 Phase |
|
|
FSB50550AT | Power Driver Module 23-DIP | 2 A | 500 V | 3 Phase |
|
|
FSB50450AT | Power Driver Module | 1.5 A | 500 V | 3 Phase |
|
|
FSB50660SF | Power Driver Module 23-DIP | 3.1 A | 600 V | 3 Phase |
|
|
FSB50760SF | Power Driver Module 23-DIP | 3.6 A | 600 V | 3 Phase |
|
|
FSB50660SFS | Power Driver Module | 3.1 A | 600 V | 3 Phase |
|
|
FSB50760SFS | Power Driver Module | 3.6 A | 600 V | 3 Phase |
|
|
FSB50660SFT | Power Driver Module 23-DIP | 3.1 A | 600 V | 3 Phase |
|
|
FSB50760SFT | Power Driver Module 23-DIP | 3.6 A | 600 V | 3 Phase |
SPM 55 Series Modules
Motion SPM® 55 modules provide fully-featured, highperformance inverter output stages for AC Induction, BLDC controller, and PMSM motors. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockouts, interlock function, over-current shutdown, thermal monitoring, and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module’s robust short-circuit-rated IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms. Application includes washing machines, refrgerators, dishwashers, pumps, consumer and industrial fans.
| Part Number | Description | Current | Voltage | Configuration | |
|---|---|---|---|---|---|
|
|
FNA51060T3 | Power Driver Module 20-DIP | 10 A | 600 V | 3 Phase Inverter |
|
|
FNA51560T3 | Power Driver Module | 15 A | 600 V | 3 Phase |
|
|
FNA51560TD3 | Power Driver Module 20-DIP | 15 A | 600 V | 3 Phase Inverter |
|
|
FNB50560T1 | Power Driver Module 20-DIP | 5 A | 600 V | 3 Phase Inverter |
|
|
FNB51060T1 | Power Driver Module 20-DIP | 10 A | 600 V | 3 Phase Inverter |
|
|
FNB51560T1 | Power Driver Module 20-DIP | 15 A | 600 V | 3 Phase Inverter |
|
|
FNB50560TD1 | Power Driver Module 20-DIP | 5 A | 600 V | 3 Phase Inverter |
|
|
FNB51060TD1 | Power Driver Module 20-DIP | 10 A | 600 V | 3 Phase Inverter |
|
|
FNB51560TD1 | Power Driver Module | 15 A | 600 V | 3 Phase Inverter |
|
|
FNF50560TD1 | Power Driver Module 20-DIP | 5 A | 600 V | 3 Phase |
|
|
FNF51060TD1 | Power Driver Module 20-DIP | 10 A | 600 V | 3 Phase Inverter |
|
|
FNF51560TD1 | Power Driver Module 20-DIP | 15 A | 600 V | 3 Phase Inverter |
SPM 7 Series Modules
Targets compact lower power motor control applications up to 50 W; e.g. small (pedestal and ceiling) fan motors, air conditioner indoor/outdoor fans, and water pump. The SPM 7 series is composed of FRFET® MOSFET and half-bridge gate driver ICs. Available modules include 250 V and 500 V in PQFN package to save up to 50% board space, minimize EMI and losses.
| Part Number | Description | Current | Voltage | Configuration | |
|---|---|---|---|---|---|
|
|
FSB70250 | Power Driver Module 27-LGA | 3.3 A | 500 V | 3 Phase |
|
|
FSB70325 | Power Driver Module 27-LGA | 4.1 A | 250 V | 3 Phase |
|
|
FSB70450 | Power Driver Module 27-PowerLQFN | 4.8 A | 500 V | 3 Phase |
|
|
FSB70550 | Power Driver Module 27-PowerLQFN | 5.3 A | 500 V | 3 Phase |
|
|
FSB70625 | Power Driver Module 27-LGA | 6.9 A | 250 V | 3 Phase |
SPM 8 Series Modules
Motion SPM® 8 three-phase Smart Power Modules deliver highest performance, full protection, and packaging advancements for consumer and industrial motion control applications.
Motion SPM 8 modules provide a full-featured, high-performance inverter stage for AC Induction, BLDC, and PMSM motors. These modules integrate optimized IGBTs and Gate Drivers for delivering highest performance whilst minimizing EMI and losses. To ensure highest reliability and robustness, multiple protection features include under-voltage lockouts, cross-conduction prevention, over-current shutdown, thermal monitoring, and fault reporting.
| Part Number | Description | Current | Voltage | Configuration | |
|---|---|---|---|---|---|
|
|
FNB81060T3 | Power Driver Module SPM25-FAA | 10 A | 600 V | 3 Phase |
Resources
Application Notes
- NEW! SPM® 2 Series Thermal Peformance by Mounting Torque
- NEW! Smart Power Module, Motion 1200 V SPM 2 Series User's Guide
- NEW! Motion SPM® 7 Series User’s Guide
- NEW! Surface Mount Guidelines for Motion SPM® 7 Series
- Smart Power Module Motion SPM® Device in DIP (SPM2 V1) User’s Guide
- New SPM® 2 Package Mounting Guidance
- Smart Power Module Motion-SPM in Mini-DIP User's Guide
- Smart Power Module Motion SPM® Device in Tiny DIP (SPM5 V1) User's Guide
- Smart Power Module Motion SPM® in Mini DIP (SPM3 V4) User's Guide
- Smart Power Module Motion SPM® Products in SPM45H Packages
- Smart Power Module Motion SPM® in SPM45H Thermal Performance Information
- Smart Power Module Motion SPM® in SPM45H Mounting Guidance
- Motion SPM® 5 Series Version 2 User's Guide
- Motion SPM® 5 Series Thermal Performance Information by Contact Pressure
- PCB Design Guidance for SPM®
Reference Designs
- Motion-SPM FNA41560 – One-Shunt Design
- Motion-SPM FNA41560 - Three-Shunt Design
- Motion SPM 5 Series Ver. 2
- Motion SPM 5 SuperFET Series
- Reference Design
Support and Tools
Motion Control Design Tool
This design tool provides motion control design engineers with efficient means of calculating the power losses and temperature rise in ON Semiconductor motor drive SPM modules. The tool addresses three-phase inverter sinusoidal modulation for variable speed drive applications powering permanent magnet synchronous motor (PMSM) and AC induction motors.
