Preliminary Data Sheet
BCM43455
Single-Chip 5G WiFi IEEE 802.11ac MAC/Baseband/
Radio with Integrated Bluetooth 4.1 and FM
Receiver

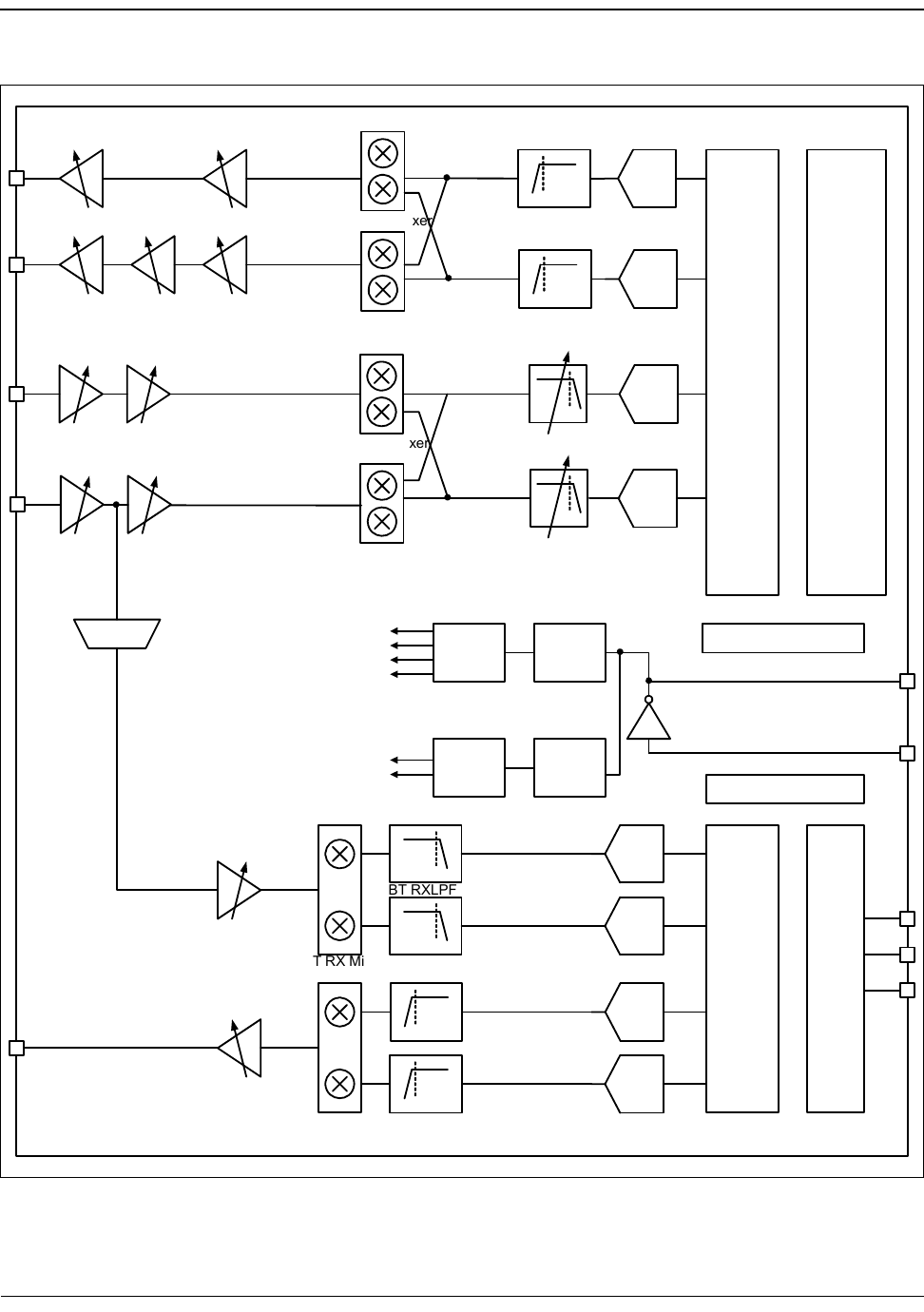

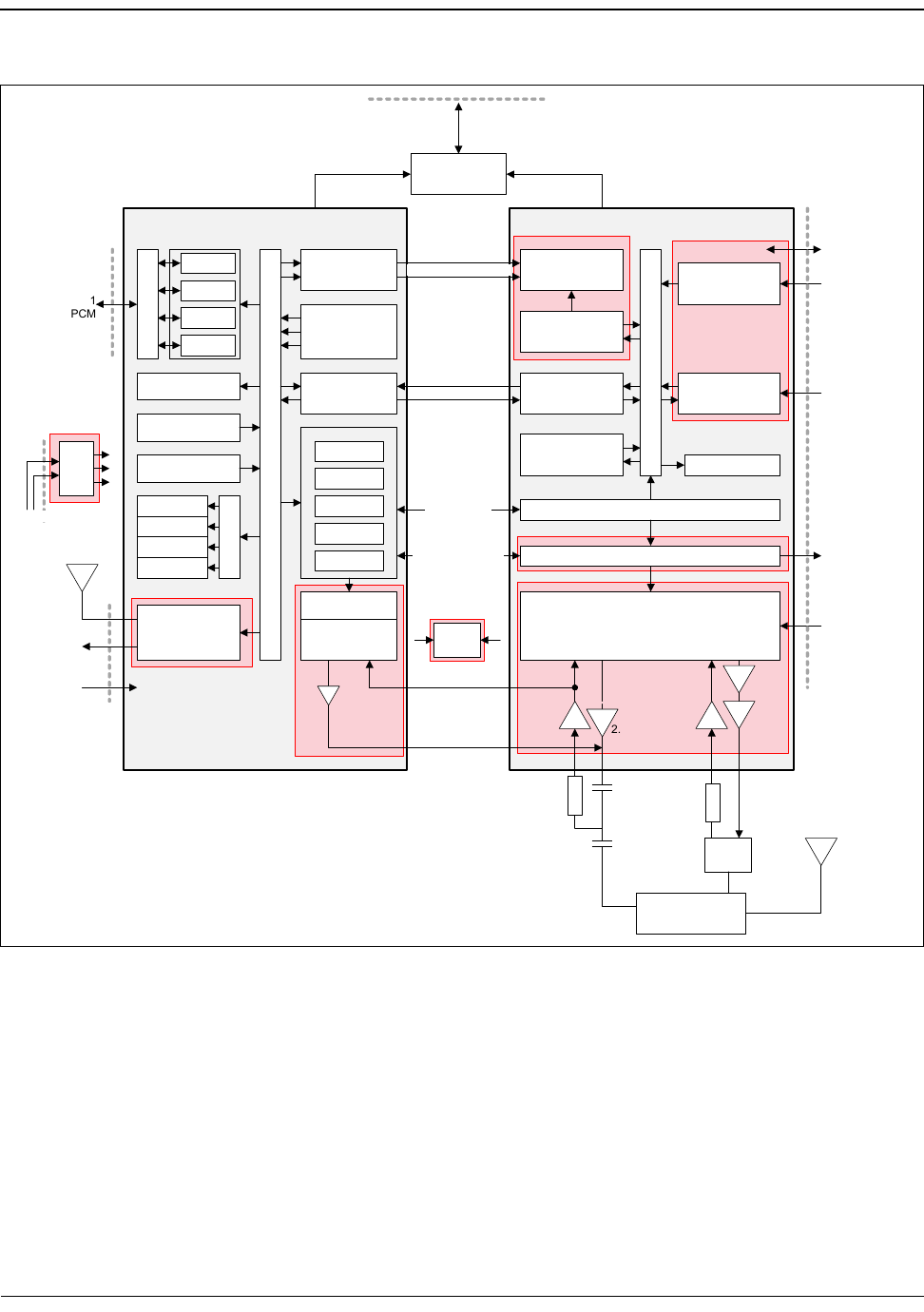

Figure 1: Functional Block Diagram
GENERAL DESCRIPTION
The Broadcom® BCM43455 single-chip device
provides the highest level of integration for a mobile or
handheld wireless system with integrated single-
stream IEEE 802.11ac MAC/baseband/radio,
Bluetooth 4.1,and FM receiver.
In IEEE 802.11ac mode, the WLAN operation
supports rates of MCS0–MCS9 (up to 256 QAM) in
20 MHz, 40 MHz, and 80 MHz channels for data rates
of up to 433.3 Mbps. All rates specified in the IEEE
802.11a/b/g/n are supported. Included on-chip are
2.4 GHz and 5 GHz transmit amplifiers and receive
low-noise amplifiers. Optional external PAs and LNAs
are also supported.
The WLAN section supports the following host
interface options: an SDIO v3.0 interface that can
operate in 4b or 1b mode, a high-speed 4-wire UART,
and a PCIe Gen1 (3.0 compliant) interface. The
Bluetooth section supports a high-speed 4-wire UART
interface.
Using advanced design techniques and process
technology to reduce active and idle power, the
BCM43455 is designed to address the needs of
mobile devices that require minimal power
consumption and compact size. It includes a power
management unit which simplifies the system power
topology and allows for direct operation from a mobile
platform battery while maximizing battery life.
The BCM43455 implements highly sophisticated
enhanced collaborative coexistence hardware
mechanisms and algorithms, which ensure that
WLAN and Bluetooth collaboration is optimized for
maximum performance. In addition, coexistence
support for external radios (such as LTE cellular and
GPS) is provided via an external interface. As a result,
enhanced overall quality for simultaneous voice,
video, and data transmission on a handheld system is
achieved.
FEM or
T/R
Switch
VIO VBAT
5 GHz WLAN Tx
5 GHz WLAN Rx
2.4 GHz WLAN Tx
2.4 GHz WLAN/BT Rx
Bluetooth Tx
FM Rx
WLAN
Host I/F
Bluetooth
Host I/F FM
Rx Host I/F
WL_REG_ON
SDIO
PCIe
BT_REG_ON
UART
BT_DEV_WAKE
BT_HOST_WAKE
CBF
I2S
FM Audio Out
I2S
PCM
COEX
External
Coexistence I/F
FEM or
Optional
T/R
Switch
FM I/F
UART
BCM43455
Revision HistoryBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 2
BROADCOM CONFIDENTIAL
FEATURES
IEEE 802.11x Key Features
• IEEE 802.11ac compliant.
• Support for TurboQAM® (MCS0–MCS8
86 Mbps and MCS0–MCS9 96 Mbps) HT20,
20 MHz channel bandwidth.
• Single-stream spatial multiplexing up to
433.3 Mbps data rate.
• Supports 20, 40, and 80 MHz channels with
optional SGI (256 QAM modulation).
• Full IEEE 802.11a/b/g/n legacy compatibility with
enhanced performance.
• Supports explicit IEEE 802.11ac transmit
beamforming.
• TX and RX low-density parity check (LDPC)
support for improved range and power efficiency.
• On-chip power amplifiers and low-noise amplifiers
for both bands.
• Support for optional front-end modules (FEM) with
external PAs and LNAs.
• Supports optional integrated T/R switch for
2.4 GHz band.
• Supports RF front-end architecture with a single
dual-band antenna shared between Bluetooth
and WLAN for lowest system cost.
• Shared Bluetooth and WLAN receive signal path
eliminates the need for an external power splitter
while maintaining excellent sensitivity for both
Bluetooth and WLAN.
• Internal fractional-n PLL allows support for a wide
range of reference clock frequencies.
• Supports IEEE 802.15.2 external coexistence
interface to optimize bandwidth utilization with
other co-located wireless technologies such as
LTE or GPS.
• Supports standard SDIO v3.0 (including DDR50
mode at 50 MHz and SDR104 mode at 208 MHz,
4-bit and 1-bit) interfaces.
Bluetooth Key Features
• Complies with Bluetooth Core Specification
Version 4.1 with provisions for supporting future
specifications.
• Bluetooth Class 1 or Class 2 transmitter
operation.
• Supports extended synchronous connections
(eSCO), for enhanced voice quality by allowing for
retransmission of dropped packets.
• Adaptive frequency hopping (AFH) for reducing
radio frequency interference.
• Interface support, host controller interface (HCI)
using a high-speed UART interface and PCM for
audio data.
• FM unit supports HCI for communication.
• FM receiver: 65 MHz to 108 MHz FM bands;
supports the European radio data systems (RDS)
and the North American radio broadcast data
system (RBDS) standards.
• Low power consumption improves battery life of
handheld devices.
• Supports multiple simultaneous Advanced Audio
Distribution Profiles (A2DP) for stereo sound.
• Automatic frequency detection for standard
crystal and TCXO values.
General Features
• Supports battery voltage range from 3.0V to 5.25V
supplies with internal switching regulator.
• Programmable dynamic power management
• 6 Kbit OTP for storing board parameters.
•GPIOs: 15
• 140-ball WLBGA package (4.47 mm × 5.27 mm,
0.4 mm pitch).
•
Broadcom Corporation
5300 California Avenue
Irvine, CA 92617
© 2015 by Broadcom Corporation
All rights reserved
Printed in the U.S.A.
Broadcom®, the pulse logo, Connecting everything®, the Connecting everything logo, OneDriver™,
SmartAudio®, and TurboQAM® are among the trademarks of Broadcom Corporation and/or its affiliates in the
United States, certain other countries and/or the EU. Any other trademarks or trade names mentioned are the
property of their respective owners.
This data sheet (including, without limitation, the Broadcom component(s) identified herein) is not designed,
intended, or certified for use in any military, nuclear, medical, mass transportation, aviation, navigations,
pollution control, hazardous substances management, or other high-risk application. BROADCOM
PROVIDES THIS DATA SHEET “AS-IS,” WITHOUT WARRANTY OF ANY KIND. BROADCOM DISCLAIMS
ALL WARRANTIES, EXPRESSED AND IMPLIED, INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-
INFRINGEMENT.
FEATURES
IEEE 802.11x Key Features (Cont.)
• Backward compatible with SDIO v2.0 host
interfaces.
• PCIe mode complies with PCI Express base
specification revision 3.0 compliant Gen1
interface for ×1 lane and power management
base specification.
• Integrated ARMCR4 processor with tightly
coupled memory for complete WLAN subsystem
functionality and minimizing the need to wake-up
the applications processor for standard WLAN
functions. This allows for further minimization of
power consumption, while maintaining the ability
to field upgrade with future features. On-chip
memory includes 800 KB SRAM and 704 KB
ROM.
• OneDriver™ software architecture for easy
migration from existing embedded WLAN and
Bluetooth devices as well as future devices.
General Features (Cont.)
• Security:
– WPA and WPA2 (Personal) support for
powerful encryption and authentication
– AES and TKIP in hardware for faster data
encryption and IEEE 802.11i compatibility
– Reference WLAN subsystem provides Cisco
Compatible Extensions (CCX, CCX 2.0, CCX
3.0, and CCX 4.0)
– Reference WLAN subsystem provides Wi-Fi
Protected Setup (WPS)
• Worldwide regulatory support: Global products
supported with worldwide homologated design.
Revision HistoryBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 4
BROADCOM CONFIDENTIAL
Revision History
Revision Date Change Description
43455-DS109-R 11/05/15 Updated:
•Table 17: “WLBGA Pin List by Pin Number,” on page 81.
•Table 18: “WLBGA Pin List by Pin Name,” on page 83.
•Table 19: “Signal Descriptions,” on page 85.
43455-DS108-R 09/25/15 Updated:
• Figure 55: “140-Ball WLBGA Package Mechanical Information,” on page
24: nominal height (A) is 0.55 mm.
43455-DS107-R 07/29/15 Updated:
• Figure 56: “140-Balls WLBGA Keep-out Areas for PCB Layout —Top
View with Balls Facing Down,” on page 169
43455-DS106-R 07/09/15 Updated:
• Table 22: “WLBGA Signal Descriptions,” on page 97.
• Table 26: “I/O States,” on page 106.
• Table 37: “WLAN 2.4 GHz Receiver Performance Specifications,” on
page 125.
• Table 39: “WLAN 5 GHz Receiver Performance Specifications,” on
page 130.
• Figure 56: “140-Balls WLBGA Keep-out Areas for PCB Layout—Top
View with Balls Facing Down,” on page 168.
43455-DS105-R 04/06/15 Updated:
• Table 36: “WLAN 2.4 GHz Transmitter Performance Specifications,” on
page 122.
• Table 38: “WLAN 5 GHz Transmitter Performance Specifications,” on
page 128.
Revision HistoryBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 5
BROADCOM CONFIDENTIAL
43455-DS104-R 03/31/15 Updated:
• “JTAG/SWD Interface” on page 73.
• Table 22: “WLBGA Signal Descriptions,” on page 97: WLAN GPIO
interface and JTAG interface.
• Table 29: “ESD Specifications,” on page 110.
• Table 31: “Bluetooth Receiver RF Specifications,” on page 113.
• Table 32: “Bluetooth Transmitter RF Specifications,” on page 116.
• Table 33: “Local Oscillator Performance,” on page 118.
• Table 34: “BLE RF Specifications,” on page 118.
• Table 36: “2.4 GHz Band General RF Specifications,” on page 125.
• Table 37: “WLAN 2.4 GHz Receiver Performance Specifications,” on
page 125.
• Table 38: “WLAN 2.4 GHz Transmitter Performance Specifications,” on
page 129.
• Table 40: “WLAN 5 GHz Transmitter Performance Specifications,” on
page 135.
• “Transmitter Spurious Emissions Specifications” on page 137.
• Section 18: “Internal Regulator Electrical Specifications,” on page 141.
• Table 53: “2.4 GHz Mode WLAN Power Consumption,” on page 147.
• Table 54: “5 GHz Mode WLAN Power Consumption,” on page 148.
• Table 55: “Bluetooth and BLE Current Consumption,” on page 149.
Added:
• “SWD Timing” on page 161.
Revision Date Change Description
Revision HistoryBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 6
BROADCOM CONFIDENTIAL
43455-DS103-R 02/04/15 Updated:
• “External Coexistence Interface” on page 72.
• Table 31: “Bluetooth Receiver RF Specifications,” on page 113.
• Table 32: “Bluetooth Transmitter RF Specifications,” on page 116.
• Table 33: “Local Oscillator Performance,” on page 118.
• Table 34: “BLE RF Specifications,” on page 118.
• Table 35: “FM Receiver Specifications,” on page 119.
• Table 37: “WLAN 2.4 GHz Receiver Performance Specifications,” on
page 125.
• Table 38: “WLAN 2.4 GHz Transmitter Performance Specifications,” on
page 128.
• Table 39: “WLAN 5 GHz Receiver Performance Specifications,” on page
129.
• Table 40: “WLAN 5 GHz Transmitter Performance Specifications,” on
page 133.
• Table 42: “2.4 GHz Band, 20 MHz Channel Spacing TX Spurious
Emissions Specifications,” on page 135.
• Table 43: “5 GHz Band, 20 MHz Channel Spacing TX Spurious
Emissions Specifications,” on page 136.
• Table 44: “5 GHz Band, 40 MHz Channel Spacing TX Spurious
Emissions Specifications,” on page 137.
• Table 45: “5 GHz Band, 80 MHz Channel Spacing TX Spurious
Emissions Specifications,” on page 138.
• Table 46: “2G and 5G General Receiver Spurious Emissions,” on page
139.
• Table 53: “2.4 GHz Mode WLAN Power Consumption,” on page 146.
• Table 54: “5 GHz Mode WLAN Power Consumption,” on page 147.
43455-DS102-R 11/20/14 Updated:
• Table 26: “ESD Specifications,” on page 104.
43455-DS101-R 11/06/14 Updated:
• Figure 3: “Typical Power Topology (Page 1 of 2),” on page 22 and
Figure 4: “Typical Power Topology (Page 2 of 2),” on page 23.
• Figure 38: “Port Locations for Bluetooth Testing,” on page 109.
• Figure 39: “Port Locations for WLAN Testing,” on page 121.
43455-DS100-R 10/27/14 Initial release.
Revision Date Change Description
Table of ContentsBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 7
BROADCOM CONFIDENTIAL
Table of Contents
About This Document ................................................................................................................................17
Purpose and Audience.......................................................................................................................... 17
Acronyms and Abbreviations................................................................................................................. 17
Document Conventions......................................................................................................................... 17
References............................................................................................................................................ 17
Technical Support ...................................................................................................................................... 18
Section 1: BCM43455 Overview ....................................................................................... 19
Overview...................................................................................................................................................... 19
Standards Compliance............................................................................................................................... 21
Mobile Phone Usage Model ....................................................................................................................... 22
Section 2: Power Supplies and Power Management ..................................................... 23
Power Supply Topology............................................................................................................................. 23
BCM43455 PMU Features .......................................................................................................................... 23
WLAN Power Management ........................................................................................................................ 26
PMU Sequencing ........................................................................................................................................ 26
Power-Off Shutdown.................................................................................................................................. 27
Power-Up/Power-Down/Reset Circuits..................................................................................................... 28
Section 3: Frequency References.................................................................................... 29
Crystal Interface and Clock Generation ................................................................................................... 29
External Frequency Reference.................................................................................................................. 30
Frequency Selection .................................................................................................................................. 32
External 32.768 kHz Low-Power Oscillator .............................................................................................. 33
Section 4: Bluetooth and FM Subsystem Overview....................................................... 34
Features....................................................................................................................................................... 34
Bluetooth Radio.......................................................................................................................................... 36
Transmit ................................................................................................................................................ 36
Digital Modulator ................................................................................................................................... 36
Digital Demodulator and Bit Synchronizer............................................................................................. 36
Power Amplifier ..................................................................................................................................... 36
Receiver ................................................................................................................................................ 37
Digital Demodulator and Bit Synchronizer............................................................................................. 37
Receiver Signal Strength Indicator........................................................................................................ 37
Local Oscillator Generation ................................................................................................................... 37
Calibration ............................................................................................................................................. 37
Section 5: Bluetooth Baseband Core .............................................................................. 38
Bluetooth 4.0 Features............................................................................................................................... 38
Table of ContentsBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 8
BROADCOM CONFIDENTIAL
Bluetooth 4.1 Features............................................................................................................................... 39
Bluetooth Low Energy ............................................................................................................................... 39
Link Control Layer...................................................................................................................................... 39
Test Mode Support..................................................................................................................................... 40
Bluetooth Power Management Unit .......................................................................................................... 40
RF Power Management ........................................................................................................................ 40
Host Controller Power Management ..................................................................................................... 40
BBC Power Management...................................................................................................................... 43
Wideband Speech.......................................................................................................................... 43
Packet Loss Concealment ............................................................................................................. 43
Audio Rate-Matching Algorithms.................................................................................................... 44
Codec Encoding............................................................................................................................. 44
Multiple Simultaneous A2DP Audio Stream................................................................................... 44
FM Over Bluetooth ................................................................................................................................ 44
Burst Buffer Operation ................................................................................................................... 44
Adaptive Frequency Hopping.................................................................................................................... 45
Advanced Bluetooth/WLAN Coexistence................................................................................................. 45
Fast Connection (Interlaced Page and Inquiry Scans) ........................................................................... 45
Section 6: Microprocessor and Memory Unit for Bluetooth.......................................... 46
RAM, ROM, and Patch Memory ................................................................................................................. 46
Reset............................................................................................................................................................ 46
Section 7: Bluetooth Peripheral Transport Unit ............................................................. 47
SPI Interface................................................................................................................................................ 47
SPI/UART Transport Detection.................................................................................................................. 47
PCM Interface.............................................................................................................................................. 48
Slot Mapping ......................................................................................................................................... 48
Frame Synchronization ......................................................................................................................... 48
Data Formatting..................................................................................................................................... 48
Wideband Speech Support ................................................................................................................... 49
Multiplexed Bluetooth Over PCM .......................................................................................................... 49
Burst PCM Mode................................................................................................................................... 49
PCM Interface Timing............................................................................................................................ 50
Short Frame Sync, Master Mode ...................................................................................................50
Short Frame Sync, Slave Mode ..................................................................................................... 51
Long Frame Sync, Master Mode....................................................................................................52
Long Frame Sync, Slave Mode...................................................................................................... 53
Short Frame Sync, Burst Mode...................................................................................................... 54
Long Frame Sync, Burst Mode ...................................................................................................... 55
Table of ContentsBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 9
BROADCOM CONFIDENTIAL
UART Interface............................................................................................................................................ 56
I2S Interface................................................................................................................................................. 57
I2S Timing.............................................................................................................................................. 58
Section 8: FM Receiver Subsystem ................................................................................. 60
FM Radio ..................................................................................................................................................... 60
Digital FM Audio Interfaces ....................................................................................................................... 60
FM Over Bluetooth ..................................................................................................................................... 60
eSCO............................................................................................................................................................ 60
Wideband Speech Link .............................................................................................................................. 61
A2DP ............................................................................................................................................................ 61
Autotune and Search Algorithms ............................................................................................................. 61
Audio Features ........................................................................................................................................... 62
RDS/RBDS................................................................................................................................................... 64
Section 9: WLAN Global Functions ................................................................................. 65
WLAN CPU and Memory Subsystem........................................................................................................ 65
One-Time Programmable Memory ............................................................................................................ 65
GPIO Interface............................................................................................................................................. 65
External Coexistence Interface ................................................................................................................. 66
UART Interface............................................................................................................................................ 67
JTAG/SWD Interface................................................................................................................................... 67
Section 10: WLAN Host Interfaces................................................................................... 68
SDIO v3.0..................................................................................................................................................... 68
SDIO Pins.............................................................................................................................................. 69
PCI Express Interface................................................................................................................................. 70
Transaction Layer Interface................................................................................................................... 71
Data Link Layer ..................................................................................................................................... 71
Physical Layer ....................................................................................................................................... 71
Logical Subblock ................................................................................................................................... 71
Scrambler/Descrambler......................................................................................................................... 71
8B/10B Encoder/Decoder...................................................................................................................... 72
Elastic FIFO........................................................................................................................................... 72
Electrical Subblock ................................................................................................................................ 72
Configuration Space.............................................................................................................................. 72
Section 11: Wireless LAN MAC and PHY ........................................................................ 73
IEEE 802.11ac MAC .................................................................................................................................... 73
PSM....................................................................................................................................................... 74
WEP ...................................................................................................................................................... 75
TXE ....................................................................................................................................................... 75
Table of ContentsBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 10
BROADCOM CONFIDENTIAL
RXE....................................................................................................................................................... 75
IFS......................................................................................................................................................... 75
TSF........................................................................................................................................................ 76
NAV....................................................................................................................................................... 76
MAC-PHY Interface............................................................................................................................... 76
IEEE 802.11ac PHY ..................................................................................................................................... 76
Section 12: WLAN Radio Subsystem ............................................................................. 78
Receiver Path.............................................................................................................................................. 78
Transmit Path.............................................................................................................................................. 78
Calibration................................................................................................................................................... 78
Section 13: Ball Map and Pin Descriptions..................................................................... 80
Ball Map....................................................................................................................................................... 80
Pin List by Pin Number .............................................................................................................................. 81
Pin List by Pin Name .................................................................................................................................. 83
Pin Descriptions ......................................................................................................................................... 85
WLAN GPIO Signals and Strapping Options ........................................................................................... 91
Multiplexed Bluetooth GPIO Signals ..................................................................................................... 92
I/O States ..................................................................................................................................................... 94
Section 14: DC Characteristics ........................................................................................ 97
Absolute Maximum Ratings ...................................................................................................................... 97
Environmental Ratings .............................................................................................................................. 98
Electrostatic Discharge Specifications .................................................................................................... 98
Recommended Operating Conditions and DC Characteristics ............................................................. 99
Section 15: Bluetooth RF Specifications ...................................................................... 100
Section 16: FM Receiver Specifications........................................................................ 107
Section 17: WLAN RF Specifications ............................................................................ 112
Introduction............................................................................................................................................... 112
2.4 GHz Band General RF Specifications............................................................................................... 113
WLAN 2.4 GHz Receiver Performance Specifications .......................................................................... 113
WLAN 2.4 GHz Transmitter Performance Specifications ..................................................................... 117
WLAN 5 GHz Receiver Performance Specifications ............................................................................. 118
WLAN 5 GHz Transmitter Performance Specifications ........................................................................ 124
General Spurious Emissions Specifications ......................................................................................... 125
Transmitter Spurious Emissions Specifications .................................................................................. 125
2.4 GHz Band Spurious Emissions .............................................................................................. 126
20 MHz Channel Spacing .................................................................................................... 126
5 GHz Band Spurious Emissions ................................................................................................. 127
Table of ContentsBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 11
BROADCOM CONFIDENTIAL
20 MHz Channel Spacing .................................................................................................... 127
40 MHz Channel Spacing .................................................................................................... 128
80 MHz Channel Spacing .................................................................................................... 129
Receiver Spurious Emissions Specifications ......................................................................................129
Section 18: Internal Regulator Electrical Specifications ............................................. 130
Core Buck Switching Regulator.............................................................................................................. 130
3.3V LDO (LDO3P3) .................................................................................................................................. 131
2.5V LDO (BTLDO2P5) ............................................................................................................................. 132
CLDO ......................................................................................................................................................... 133
LNLDO ....................................................................................................................................................... 134
PCIe LDO ................................................................................................................................................... 135
Section 19: System Power Consumption...................................................................... 136
WLAN Current Consumption................................................................................................................... 136
2.4 GHz Mode ..................................................................................................................................... 136
5 GHz Mode ........................................................................................................................................ 137
Bluetooth Current Consumption............................................................................................................. 138
Section 20: Interface Timing and AC Characteristics .................................................. 139
SDIO Timing.............................................................................................................................................. 139
SDIO Default Mode Timing ................................................................................................................. 139
SDIO High-Speed Mode Timing.......................................................................................................... 141
SDIO Bus Timing Specifications in SDR Modes ................................................................................. 142
Clock Timing ................................................................................................................................ 142
Card Input Timing......................................................................................................................... 143
Card Output Timing...................................................................................................................... 144
SDIO Bus Timing Specifications in DDR50 Mode............................................................................... 146
Data Timing.................................................................................................................................. 147
PCI Express Interface Parameters .......................................................................................................... 148
JTAG Timing ............................................................................................................................................. 150
SWD Timing .............................................................................................................................................. 150
Section 21: Power-Up Sequence and Timing ............................................................... 151
Sequencing of Reset and Regulator Control Signals ........................................................................... 151
Description of Control Signals ............................................................................................................. 151
Control Signal Timing Diagrams.......................................................................................................... 152
Section 22: Package Information ................................................................................... 154
Package Thermal Characteristics ........................................................................................................... 154
Junction Temperature Estimation and PSIJT Versus THETAJC ........................................................... 154
Environmental Characteristics................................................................................................................ 154
Table of ContentsBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 12
BROADCOM CONFIDENTIAL
Section 23: Mechanical Information .............................................................................. 155
Section 24: Ordering Information .................................................................................. 157
List of FiguresBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 13
BROADCOM CONFIDENTIAL
List of Figures
Figure 1: Functional Block Diagram................................................................................................................... 1
Figure 2: BCM43455 Block Diagram ............................................................................................................... 20
Figure 3: Typical Power Topology (Page 1 of 2).............................................................................................. 24
Figure 4: Typical Power Topology (Page 2 of 2).............................................................................................. 25
Figure 5: Recommended Oscillator Configuration ........................................................................................... 29
Figure 6: Recommended Circuit to Use With an External Reference Clock .................................................... 30
Figure 7: Startup Signaling Sequence Prior to Software Download ................................................................ 42
Figure 8: CVSD Decoder Output Waveform Without PLC ...............................................................................44
Figure 9: CVSD Decoder Output Waveform After Applying PLC..................................................................... 44
Figure 10: Functional Multiplex Data Diagram................................................................................................. 49
Figure 11: PCM Timing Diagram (Short Frame Sync, Master Mode) .............................................................. 50
Figure 12: PCM Timing Diagram (Short Frame Sync, Slave Mode) ................................................................ 51
Figure 13: PCM Timing Diagram (Long Frame Sync, Master Mode)............................................................... 52
Figure 14: PCM Timing Diagram (Long Frame Sync, Slave Mode)................................................................. 53
Figure 15: PCM Burst Mode Timing (Receive Only, Short Frame Sync) ......................................................... 54
Figure 16: PCM Burst Mode Timing (Receive Only, Long Frame Sync) ......................................................... 55
Figure 17: UART Timing .................................................................................................................................. 57
Figure 18: I2S Transmitter Timing .................................................................................................................... 59
Figure 19: I2S Receiver Timing........................................................................................................................ 59
Figure 20: Audio SNR for Blend, Switch, and FME Modes.............................................................................. 62
Figure 21: Stereo Separation for Blend, Switch, and FME Modes .................................................................. 63
Figure 22: Example Soft Mute Characteristic .................................................................................................. 63
Figure 23: Broadcom GCI or BT-SIG WCI-2 LTE Coexistence Interface ........................................................ 66
Figure 24: 3-Wire LTE Coexistence Interface.................................................................................................. 66
Figure 25: Signal Connections to SDIO Host (SD 4-Bit Mode)........................................................................ 69
Figure 26: Signal Connections to SDIO Host (SD 1-Bit Mode)........................................................................ 69
Figure 27: PCI Express Layer Model ............................................................................................................... 70
Figure 28: WLAN MAC Architecture ................................................................................................................ 73
Figure 29: WLAN PHY Block Diagram............................................................................................................. 77
Figure 30: Radio Functional Block Diagram .................................................................................................... 79
Figure 31: 140-Ball WLBGA Map—Bottom View (Balls Facing Up) ............................................................... 80
Figure 32: Port Locations for Bluetooth Testing............................................................................................. 100
Figure 33: Port Locations for WLAN Testing ................................................................................................. 112
Figure 34: SDIO Bus Timing (Default Mode) ................................................................................................. 139
Figure 35: SDIO Bus Timing (High-Speed Mode).......................................................................................... 141
List of FiguresBCM43455 Preliminary Data Sheet
Broadcom®
November 5, 2015 • 43455-DS109-R Page 14
BROADCOM CONFIDENTIAL
Figure 36: SDIO Clock Timing (SDR Modes) ................................................................................................ 142
Figure 37: SDIO Bus Input Timing (SDR Modes) .......................................................................................... 143
Figure 38: SDIO Bus Output Timing (SDR Modes up to 100 MHz) ............................................................... 144
Figure 39: SDIO Bus Output Timing (SDR Modes 100 MHz to 208 MHz)..................................................... 144
Figure 40: tOP Consideration for Variable Data Window (SDR 104 Mode) ................................................ 145
Figure 41: SDIO Clock Timing (DDR50 Mode) .............................................................................................. 146
Figure 42: SDIO Data Timing (DDR50 Mode) ............................................................................................... 147
Figure 43: SWD Read and Write Timing........................................................................................................ 150
Figure 44: WLAN = ON, Bluetooth = ON ....................................................................................................... 152
Figure 45: WLAN = OFF, Bluetooth = OFF.................................................................................................... 152
Figure 46: WLAN = ON, Bluetooth = OFF ..................................................................................................... 153
Figure 47: WLAN = OFF, Bluetooth = ON ..................................................................................................... 153
Figure 48: 140-Ball WLBGA Package Mechanical Information ..................................................................... 155
Figure 49: 140-Balls WLBGA Keep-out Areas for PCB Layout—Top View with Balls Facing Down ............ 156
List of TablesBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 15
List of Tables
Table 1: Power-Up/Power-Down/Reset Control Signals.................................................................................. 28
Table 2: Crystal Oscillator and External Clock—Requirements and Performance ......................................... 30
Table 3: External 32.768 kHz Sleep Clock Specifications ............................................................................... 33
Table 4: Power Control Pin Description ........................................................................................................... 41
Table 5: SPI-to-UART Signal Mapping ............................................................................................................ 47
Table 6: PCM Interface Timing Specifications (Short Frame Sync, Master Mode).......................................... 50
Table 7: PCM Interface Timing Specifications (Short Frame Sync, Slave Mode)............................................ 51
Table 8: PCM Interface Timing Specifications (Long Frame Sync, Master Mode) .......................................... 52
Table 9: PCM Interface Timing Specifications (Long Frame Sync, Slave Mode) ............................................ 53
Table 10: PCM Burst Mode (Receive Only, Short Frame Sync) ...................................................................... 54
Table 11: PCM Burst Mode (Receive Only, Long Frame Sync) ...................................................................... 55
Table 12: Example of Common Baud Rates.................................................................................................... 56
Table 13: UART Timing Specifications ............................................................................................................ 57
Table 14: Timing for I2S Transmitters and Receivers ...................................................................................... 58
Table 15: 3-Wire External Coexistence Interface ............................................................................................ 66
Table 16: SDIO Pin Description ....................................................................................................................... 69
Table 17: WLBGA Pin List by Pin Number ...................................................................................................... 81
Table 18: WLBGA Pin List by Pin Name.......................................................................................................... 83
Table 19: Signal Descriptions .......................................................................................................................... 85
Table 20: Strapping Options ............................................................................................................................ 91
Table 21: GPIO Multiplexing Matrix ................................................................................................................. 92
Table 22: Multiplexed GPIO Signals ................................................................................................................ 93
Table 23: I/O States ......................................................................................................................................... 94
Table 24: Absolute Maximum Ratings ............................................................................................................. 97
Table 25: Environmental Ratings..................................................................................................................... 98
Table 26: ESD Specifications .......................................................................................................................... 98
Table 27: Recommended Operating Conditions and DC Characteristics ........................................................ 99
Table 28: Bluetooth Receiver RF Specifications............................................................................................ 101
Table 29: Bluetooth Transmitter RF Specifications....................................................................................... 104
Table 30: Local Oscillator Performance......................................................................................................... 106
Table 31: BLE RF Specifications ................................................................................................................... 106
Table 32: FM Receiver Specifications ........................................................................................................... 107
Table 33: 2.4 GHz Band General RF Specifications...................................................................................... 113
Table 34: WLAN 2.4 GHz Receiver Performance Specifications .................................................................. 113
Table 35: WLAN 2.4 GHz Transmitter Performance Specifications .............................................................. 117
List of TablesBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 16
Table 36: WLAN 5 GHz Receiver Performance Specifications ..................................................................... 118
Table 37: WLAN 5 GHz Transmitter Performance Specifications ................................................................. 124
Table 38: Recommended Spectrum Analyzer Settings .................................................................................125
Table 39: 2.4 GHz Band, 20 MHz Channel Spacing TX Spurious Emissions Specifications ........................ 126
Table 40: 5 GHz Band, 20 MHz Channel Spacing TX Spurious Emissions Specifications ........................... 127
Table 41: 5 GHz Band, 40 MHz Channel Spacing TX Spurious Emissions Specifications ........................... 128
Table 42: 5 GHz Band, 80 MHz Channel Spacing TX Spurious Emissions Specifications ........................... 129
Table 43: 2G and 5G General Receiver Spurious Emissions........................................................................ 129
Table 44: Core Buck Switching Regulator (CBUCK) Specifications .............................................................. 130
Table 45: LDO3P3 Specifications .................................................................................................................. 131
Table 46: BTLDO2P5 Specifications ............................................................................................................. 132
Table 47: CLDO Specifications...................................................................................................................... 133
Table 48: LNLDO Specifications.................................................................................................................... 134
Table 49: PCIe LDO Specifications ............................................................................................................... 135
Table 50: 2.4 GHz Mode WLAN Power Consumption ................................................................................... 136
Table 51: 5 GHz Mode WLAN Power Consumption ......................................................................................137
Table 52: Bluetooth and BLE Current Consumption...................................................................................... 138
Table 53: SDIO Bus Timing Parameters (Default Mode)............................................................................... 139
Table 54: SDIO Bus Timing Parameters (High-Speed Mode)....................................................................... 141
Table 55: SDIO Bus Clock Timing Parameters (SDR Modes) ....................................................................... 142
Table 56: SDIO Bus Input Timing Parameters (SDR Modes) ........................................................................ 143
Table 57: SDIO Bus Output Timing Parameters (SDR Modes up to 100 MHz)............................................. 144
Table 58: SDIO Bus Output Timing Parameters (SDR Modes 100 MHz to 208 MHz) .................................. 145
Table 59: SDIO Bus Clock Timing Parameters (DDR50 Mode) .................................................................... 146
Table 60: SDIO Bus Timing Parameters (DDR50 Mode) .............................................................................. 147
Table 61: PCI Express Interface Parameters ................................................................................................ 148
Table 62: JTAG Timing Characteristics ......................................................................................................... 150
Table 63: SWD Read and Write Timing Parameters ..................................................................................... 150
Table 64: Package Thermal Characteristics .................................................................................................. 154
Table 65: Part Ordering Information .............................................................................................................. 157
www.b\uetooth.com
wwwgcxsigcom
wwwgcxsigcom
About This Document
Broadcom®
November 5, 2015 • 43455-DS109-R Page 17
BCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
About This Document
Purpose and Audience
This data sheet provides details on the functional, operational, and electrical characteristics for the Broadcom®
BCM43455. It is intended for hardware design, application, and OEM engineers.
Acronyms and Abbreviations
In most cases, acronyms and abbreviations are defined on first use.
For a comprehensive list of acronyms and other terms used in Broadcom documents, go to:
http://www.broadcom.com/press/glossary.php.
Document Conventions
The following conventions may be used in this document:
References
The references in this section may be used in conjunction with this document.
For Broadcom documents, replace the “xx” in the document number with the largest number available in the
repository to ensure that you have the most current version of the document.
Convention Description
Bold User input and actions: for example, type exit, click OK, press ALT+C
Monospace Code: #include <iostream>
HTML: <td rowspan = 3>
Command line commands and parameters: wl [-l] <command>
< > Placeholders for required elements: enter your <username> or wl <command>
[ ] Indicates optional command-line parameters: wl [-l]
Indicates bit and byte ranges (inclusive): [0:3] or [7:0]
Note: Broadcom provides customer access to technical documentation and software through its
Customer Support Portal (CSP) and Downloads & Support site (see Technical Support).
Document (or Item) Name Number Source
[1] Bluetooth MWS Coexistence 2-wire Transport Interface
Specification –www.bluetooth.com
[2] PCI Bus Local Bus Specification, Revision 2.3 –www.pcisig.com
[3] PCIe Base Specification Version 1.1 –www.pcisig.com
htlgszllsuggonbroadcom .com
hug://www.broadcomcom/suggon/
Technical Support
Broadcom®
November 5, 2015 • 43455-DS109-R Page 18
BCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Technical Support
Broadcom provides customer access to a wide range of information, including technical documentation,
schematic diagrams, product bill of materials, PCB layout information, and software updates through its
customer support portal (https://support.broadcom.com). For a CSP account, contact your Sales or Engineering
support representative.
In addition, Broadcom provides other product support through its Downloads & Support site
(http://www.broadcom.com/support/).
BCM43455 OverviewBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 19
Section 1: BCM43455 Overview
Overview
The Broadcom BCM43455 single-chip device provides the highest level of integration for a mobile or handheld
wireless system, with integrated IEEE 802.1 a/b/g/n/ac MAC/baseband/radio, Bluetooth 4.1 + EDR (enhanced
data rate), and FM receiver. It provides a small form-factor solution with minimal external components to drive
down cost for mass volumes and allows for handheld device flexibility in size, form, and function.
Comprehensive power management circuitry and software ensure the system can meet the needs of highly
mobile devices that require minimal power consumption and reliable operation.
Figure 2 on page 20 shows the interconnect of all the major physical blocks in the BCM43455 and their
associated external interfaces, which are described in greater detail in the following sections.
OverviewBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 20

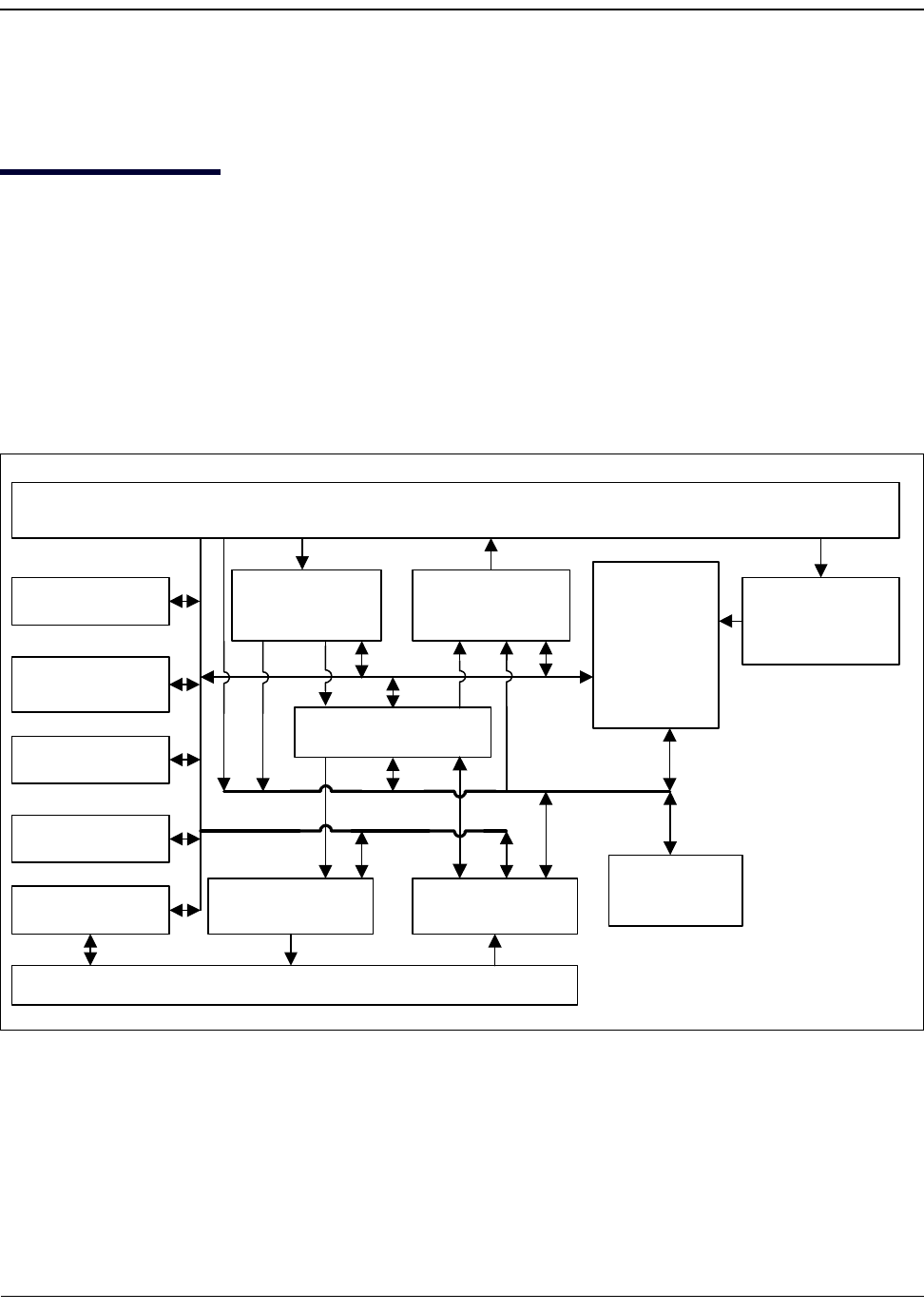

Figure 2: BCM43455 Block Diagram
WLANBTFM
RX/TX
LCU
BLE
APU
BlueRF
UART
PCM
I2S
USB
Port Control
GPIO
Timers
WD
Pause
AHB2APB
Registers
DMA
JTAG Master
AHB Bus Matrix
RAM
ROM
ARMCM3
WLAN
Master Slave
FM RX
Modem
BT RF
NIC-301 AXI Backplane
TCM
RAM 800 KB
ROM 704 KB
AXI2ANB
AHB2AXI
WLAN BT Access
WLAN RAM Sharing
ARMCR4
Chip Common
(OTP) AXI2APB
PCIE
SDIOD
DOT11MAC (D11)GCI Coex I/F
1×1 IEEE 802.11ac PHY (Rev. 4)
Shared LNA
Control and Other
Coex I/F
2.4 GHz/5 GHz
TINY Radio
WL_HOST_WAKE
UART
WL_DEV_WKAE
JTAG
Other GPIOs
SDIO 3.0
PCIE
RF
Switch
Controls
XTAL
FM Analog
Audio
32 kHz
External
LPO
BT_HOST_WAKE
BT_DEV_WAKE
UART
USB 1.1
PCM
I2S
Other GPIOs
PMU
VBAT
WL_REG_ON
BT_REG_ON
GCI
SECI UART and GCI GPIOs
BT PA
CLB
Shared
2.4 LNA
2.4 GHz
PA
WLAN:
5 GHz: iPA, iLNA, eLG, eTR
2 GHz: iPA, iLNA, eLG, iTR
BT:
Shared LNA, iTR eTR
5 GHz
PA
LNA
L
L
Diplexer
LNA
5 GHz
PA Driver
Standards ComplianceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 21
Standards Compliance
The BCM43455 supports the following standards:
• Bluetooth 2.1 + EDR
• Bluetooth 3.0
• Bluetooth 4.1 (Bluetooth Low Energy)
• IEEE 802.11ac single-stream mandatory and optional requirements for 20, 40, and 80 MHz channels
• IEEE 802.11n (Handheld Device Class, Section 11)
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11d
• IEEE 802.11h
• IEEE 802.11i
• Security:
–WEP
– WPA Personal
– WPA2 Personal
–WMM
– WMM-PS (U-APSD)
–WMM-SA
– AES (hardware accelerator)
– TKIP (hardware accelerator)
– CKIP (software support)
• Proprietary protocols:
– CCXv2
– CCXv3
– CCXv4
– CCXv5
–WFAEC
• IEEE 802.15.2 Coexistence Compliance (on-silicon solution compliant with IEEE 3-wire requirements)
The BCM43455 supports the following future drafts/standards:
• IEEE 802.11r (fast roaming between APs)
• IEEE 802.11w (secure management frames)
Mobile Phone Usage ModelBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 22
• IEEE 802.11 Extensions:
– IEEE 802.11e QoS Enhancements (as per the WMM specification is already supported)
– IEEE 802.11h 5 GHz Extensions
– IEEE 802.11i MAC Enhancements
– IEEE 802.11k Radio Resource Measurement
Mobile Phone Usage Model
The BCM43455 incorporates a number of unique features to simplify integration into mobile phone platforms.
Its flexible PCM and UART interfaces enable it to transparently connect with the existing circuits. In addition, the
TCXO and LPO inputs allow the use of existing handset features to further minimize the size, power, and cost
of the complete system.
• The PCM interface provides multiple modes of operation to support both master and slave as well as hybrid
interfacing to single or multiple external codec devices.
• The UART interface supports hardware flow control with tight integration to power control sideband
signaling to support the lowest power operation.
• The crystal oscillator interface accommodates any of the typical reference frequencies used by cell phones.
• FM digital interfaces can use either I2S or PCM.
• The highly linear design of the radio transceiver ensures that the device has the lowest spurious emissions
output regardless of the state of operation. It has been fully characterized in the global cellular bands.
• The transceiver design has excellent blocking and intermodulation performance in the presence of a
cellular transmission (LTE, GSM, GPRS, CDMA, WCDMA, or iDEN).
The BCM43455 is designed to directly interface with new and existing handset designs.
Power Supplies and Power ManagementBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 23
Section 2: Power Supplies and Power
Management
Power Supply Topology
One Buck regulator, multiple LDO regulators, and a power management unit (PMU) are integrated into the
BCM43455. All regulators are programmable via the PMU. These blocks simplify power supply design for
Bluetooth, and WLAN functions in embedded designs.
A single VBAT (3.0V to 5.25V DC max.) and VIO supply (1.8V to 3.3V) can be used, with all additional voltages
being provided by the regulators in the BCM43455.
Two control signals, BT_REG_ON and WL_REG_ON, are used to power-up the regulators and take the
respective section out of reset. The CBUCK CLDO and LNLDO power-up when any of the reset signals are
deasserted. All regulators are powered down only when both BT_REG_ON and WL_REG_ON are deasserted.
The CLDO and LNLDO may be turned off/on based on the dynamic demands of the digital baseband.
The BCM43455 allows for an extremely low power-consumption mode by completely shutting down the
CBUCK, CLDO, and LNLDO regulators. When in this state, the LPLDO1 (which is the low-power linear regulator
that is supplied by the system VIO supply) provides the BCM43455 with all required voltage, further reducing
leakage currents.
BCM43455 PMU Features
• VBAT to 1.35Vout (170 mA nominal, 600 mA maximum) Core-Buck (CBUCK) switching regulator
• VBAT to 3.3Vout (200 mA nominal, 450 mA–850 mA maximum) LDO3P3
• VBAT to 2.5Vout (15 mA nominal, 70 mA maximum) BTLDO2P5
• 1.35V to 1.2Vout (100 mA nominal, 150 mA maximum) LNLDO
• 1.35V to 1.2Vout (80 mA nominal, 200 mA maximum) CLDO with bypass mode for deep-sleep
• 1.35V to 1.2Vout (35 mA nominal, 55 mA maximum) LDO for PCIE
• Additional internal LDOs (not externally accessible)
• PMU internal timer auto-calibration by the crystal clock for precise wake-up timing from extremely low
power-consumption mode.
m REG m
mm
Maximum
7 m am:
(mam
dlepi‘eepv
[WEN
fik
_
[ME
Broadcom®
November 5, 2015 • 43455-DS109-R Page 24
BCM43455 PMU Features
BROADCOM CONFIDENTIAL
BCM43455 Preliminary Data Sheet
Figure 3 and Figure 4 on page 25 show the regulators and a typical power topology.

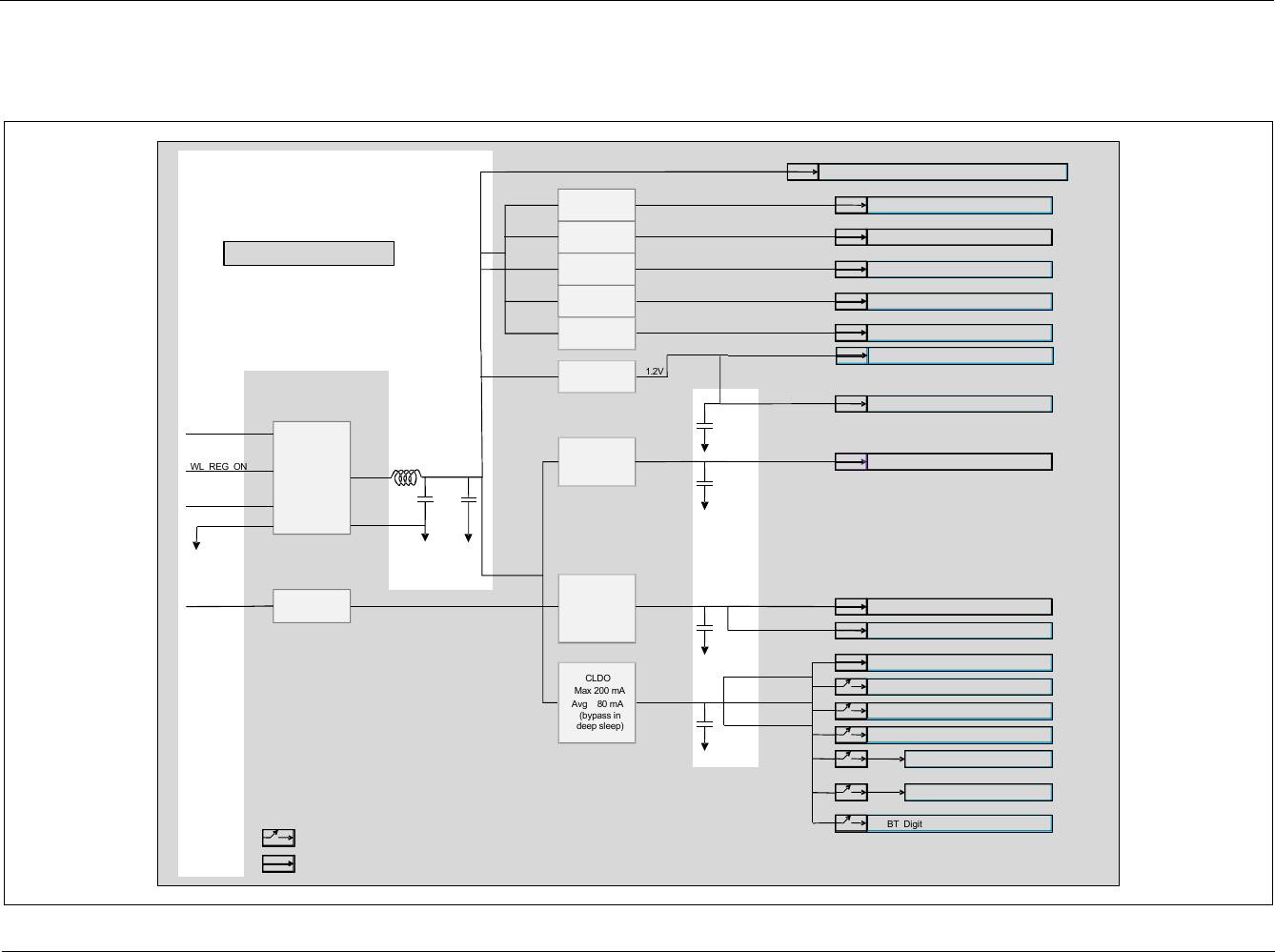

Figure 3: Typical Power Topology (Page 1 of 2)
WLAN/BT/CLB/Top, Always ON
WL Subcore
BT Digital
WL RF – XTAL
BT RF
LNLDO
100 mA
Internal LNLDO
10 mA
Internal VCOLDO
80 mA
Internal LNLDO
80 mA
Internal LNLDO
80 mA
WL RF - LOGEN
WL RF – LNA
WL RF – AFE and TIA
WL RF – TX
CORE BUCK
REGULATOR
CBUCK
Max 600 mA
Avg 170 mA
LPLDO1
3 mA
VBAT
VDDIO 1.1V
1.35V
1.3V- 1.2V- 0.95V
(AVS)
1.2V
1.2V
1.2V
1.2V
2.2 µH
0806
0603
4.7 µF
0402
4.7 µF
0402
2.2 µF
0402
1.2V
WL RF – RFPLL PFD and MMD
XTAL LDO
30 mA
1.2V
1 µF
0402
PCIE PLL, RXTX
WL_REG_ON
BT_REG_ON
WL BBPLL/DFLL
WL VDDM (SRAMs + AOS)
WL PHY
WL OTP
BT VDDM
CLDO
Max 200 mA
Avg 80 mA
(bypass in
deep sleep)
PCIe LDO
Max 55 mA
Avg 35 mA
(bypass/off in
deepsleep) 0.47 µF
0201
1.2V
Internal LNLDO
10 mA WL RF – ADC REF
1.2V
WL RF - TX MIXER and PA (not all versions)
GND
0.1
µF
0201
Shaded areas are internal to the device.
No power switch
Power switch
BCM43455
WL RF 7 Von
25v
m Wm mum
Am
wLRLcP
PEI
E
Broadcom®
November 5, 2015 • 43455-DS109-R Page 25
BCM43455 PMU Features
BROADCOM CONFIDENTIAL
BCM43455 Preliminary Data Sheet
Figure 4: Typical Power Topology (Page 2 of 2)
2.5V Internal LNLDO
8 mA WL RF – CP
BTLDO2P5
Max 70 mA
Avg 15 mA
BT CLASS 1 PA
LDO3P3
Spike 800 mA
Max 450 mA
Avg 200 mA
WL RF – PAD (2.4 GHz, 5 GHz)
WL OTP 3.3V
VDDIO_RF
VBAT 3.3V
4.7 µF
0402
2.5V
WL RF – PA (2.4 GHz, 5 GHz)
WL RF – VCO
2.5V Internal LNLDO
25 mA
2.5V
2.2 µF
0402
2.5V Internal LNLDO
10 mA WL RF – RX, TX, NMOS miniPMU LDOs
2.5V
10 pF
0201
2.5V
Shaded areas are internal to the device.
No power switch
Power switch No dedicated power switch, but
internal power-down modes and
block-specific power switches.
BCM43455
WLAN Power ManagementBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 26
WLAN Power Management
The BCM43455 has been designed with the stringent power consumption requirements of mobile devices in
mind. All areas of the chip design are optimized to minimize power consumption. Silicon processes and cell
libraries were chosen to reduce leakage current and supply voltages. Additionally, the BCM43455 integrated
RAM is a high Vt memory with dynamic clock control. The dominant supply current consumed by the RAM is
leakage current only. Additionally, the BCM43455 includes an advanced WLAN power management unit (PMU)
sequencer. The PMU sequencer provides significant power savings by putting the BCM43455 into various
power management states appropriate to the current environment and activities that are being performed. The
power management unit enables and disables internal regulators, switches, and other blocks based on a
computation of the required resources and a table that describes the relationship between resources and the
time needed to enable and disable them. Power-up sequences are fully programmable. Configurable, free-
running counters (running at 32.768 kHz LPO clock) in the PMU sequencer are used to turn on/turn off individual
regulators and power switches. Clock speeds are dynamically changed (or gated altogether) for the current
mode. Slower clock speeds are used wherever possible.
The BCM43455 WLAN power states are described as follows:
• Active mode— All WLAN blocks in the BCM43455 are powered up and fully functional with active carrier
sensing and frame transmission and receiving. All required regulators are enabled and put in the most
efficient mode based on the load current. Clock speeds are dynamically adjusted by the PMU sequencer.
• Doze mode—The radio, analog domains, and most of the linear regulators are powered down. The rest of
the BCM43455 remains powered up in an IDLE state. All main clocks (PLL, crystal oscillator or TCXO) are
shut down to reduce active power to the minimum. The 32.768 kHz LPO clock is available only for the PMU
sequencer. This condition is necessary to allow the PMU sequencer to wake-up the chip and transition to
Active mode. In Doze mode, the primary power consumed is due to leakage current.
• Deep-sleep mode—Most of the chip including both analog and digital domains and most of the regulators
are powered off. Logic states in the digital core are saved and preserved into a retention memory in the
always-ON domain before the digital core is powered off. Upon a wake-up event triggered by the PMU
timers, an external interrupt or a host resume through the PCIe bus, logic states in the digital core are
restored to their pre-deep-sleep settings to avoid lengthy HW reinitialization.
• Power-down mode—The BCM43455 is effectively powered off by shutting down all internal regulators. The
chip is brought out of this mode by external logic re-enabling the internal regulators.
PMU Sequencing
The PMU sequencer is used to minimize system power consumption. It enables and disables various system
resources based on a computation of required resources and a table that describes the relationship between
resources and the time required to enable and disable them.
Resource requests may derive from several sources: clock requests from cores, the minimum resources defined
in the ResourceMin register, and the resources requested by any active resource request timers. The PMU
sequencer maps clock requests into a set of resources required to produce the requested clocks.
Power-Off ShutdownBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 27
Each resource is in one of four states:
• enabled
•disabled
• transition_on
• transition_off
The timer contains 0 when the resource is enabled or disabled and a non-zero value in the transition states. The
timer is loaded with the time_on or time_off value of the resource when the PMU determines that the resource
must be enabled or disabled. That timer decrements on each 32.768 kHz PMU clock. When it reaches 0, the
state changes from transition_off to disabled or transition_on to enabled. If the time_on value is 0, the resource
can transition immediately from disabled to enabled. Similarly, a time_off value of 0 indicates that the resource
can transition immediately from enabled to disabled. The terms enable sequence and disable sequence refer
to either the immediate transition or the timer load-decrement sequence.
During each clock cycle, the PMU sequencer performs the following actions:
• Computes the required resource set based on requests and the resource dependency table.
• Decrements all timers whose values are non zero. If a timer reaches 0, the PMU clears the
ResourcePending bit for the resource and inverts the ResourceState bit.
• Compares the request with the current resource status and determines which resources must be enabled
or disabled.
• Initiates a disable sequence for each resource that is enabled, no longer being requested, and has no
powered up dependents.
• Initiates an enable sequence for each resource that is disabled, is being requested, and has all of its
dependencies enabled.
Power-Off Shutdown
The BCM43455 provides a low-power shutdown feature that allows the device to be turned off while the host,
and any other devices in the system, remain operational. When the BCM43455 is not needed in the system,
VDDIO_RF and VDDC are shut down while VDDIO remains powered. This allows the BCM43455 to be
effectively off while keeping the I/O pins powered so that they do not draw extra current from any other devices
connected to the I/O.
During a low-power shutdown state, provided VDDIO remains applied to the BCM43455, all outputs are
tristated, and most inputs signals are disabled. Input voltages must remain within the limits defined for normal
operation. This is done to prevent current paths or create loading on any digital signals in the system, and
enables the BCM43455 to be fully integrated in an embedded device and take full advantage of the lowest
power-savings modes.
When the BCM43455 is powered on from this state, it is the same as a normal power-up and the device does
not retain any information about its state from before it was powered down.
Power-Up/Power-Down/Reset CircuitsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 28
Power-Up/Power-Down/Reset Circuits
The BCM43455 has two signals (see Table 1) that enable or disable the Bluetooth and WLAN circuits and the
internal regulator blocks, allowing the host to control power consumption. For timing diagrams of these signals
and the required power-up sequences, see Section 21: “Power-Up Sequence and Timing,” on page 151.
Table 1: Power-Up/Power-Down/Reset Control Signals
Signal Description
WL_REG_ON This signal is used by the PMU (with BT_REG_ON) to power-up the WLAN section. It is also
OR-gated with the BT_REG_ON input to control the internal BCM43455 regulators. When this
pin is high, the regulators are enabled and the WLAN section is out of reset. When this pin is
low, the WLAN section is in reset. If BT_REG_ON and WL_REG_ON are both low, the
regulators are disabled. This pin has an internal 200 k pull-down resistor that is enabled by
default. It can be disabled through programming.
BT_REG_ON This signal is used by the PMU (with WL_REG_ON) to decide whether or not to power down
the internal BCM43455 regulators. If BT_REG_ON and WL_REG_ON are low, the regulators
will be disabled. This pin has an internal 200 k pull-down resistor that is enabled by default.
It can be disabled through programming.
Frequency ReferencesBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 29
Section 3: Frequency References
An external crystal is used for generating all radio frequencies and normal operation clocking. As an alternative,
an external frequency reference may be used. In addition, a low-power oscillator (LPO) is provided for lower
power mode timing.
Crystal Interface and Clock Generation
The BCM43455 can use an external crystal to provide a frequency reference. The recommended configuration
for the crystal oscillator including all external components is shown in Figure 5. Consult the reference
schematics for the latest configuration.
Figure 5: Recommended Oscillator Configuration
A fractional-N synthesizer in the BCM43455 generates the radio frequencies, clocks, and data/packet timing,
enabling it to operate using a wide selection of frequency references.
The recommended default frequency reference is a 37.4 MHz crystal. The signal characteristics for the crystal
interface are listed in Table 2 on page 30.
Note: Although the fractional-N synthesizer can support alternative reference frequencies,
frequencies other than the default require support to be added in the driver, plus additional extensive
system testing. Contact Broadcom for further details.
WRF_XTAL_XON
WRF_XTAL_XOP
C
C
37.4 MHz
x ohms
27 pF
27 pF
Note: A reference schematic is available for further details.
Contact your Broadcom FAE.
External Frequency ReferenceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 30
External Frequency Reference
As an alternative to a crystal, an external precision frequency reference can be used, provided that it meets the
Phase Noise requirements listed in Ta b l e 2 .
If used, the external clock should be connected to the WRF_XTAL_XOP pin through an external 1000 pF
coupling capacitor, as shown in Figure 6. The internal clock buffer connected to this pin will be turned OFF when
the BCM43455 goes into sleep mode. When the clock buffer turns ON and OFF there will be a small impedance
variation. Power must be supplied to the WRF_XTAL_VDD1P35 pin.

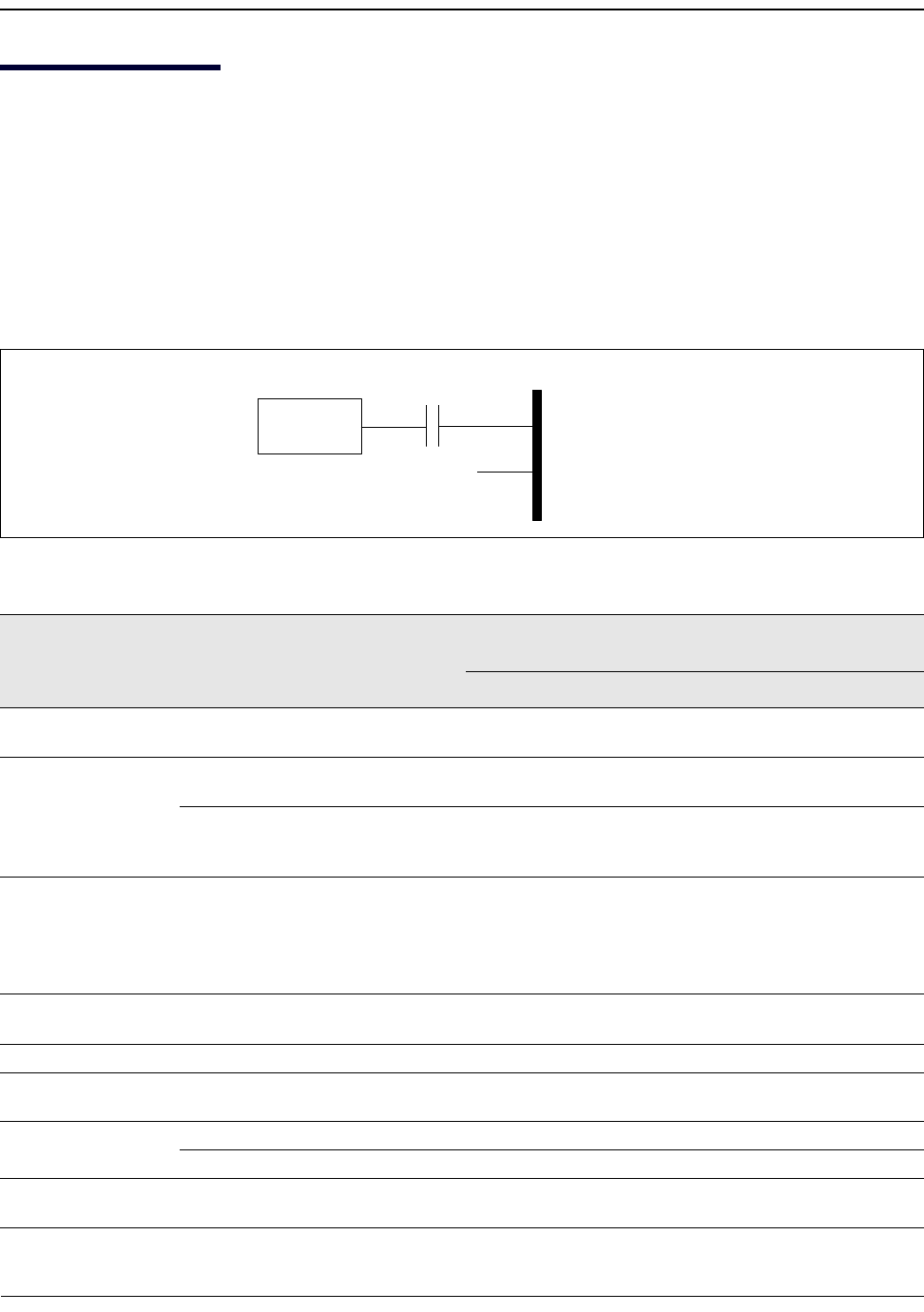

Figure 6: Recommended Circuit to Use With an External Reference Clock
Table 2: Crystal Oscillator and External Clock—Requirements and Performance
Parameter Conditions/Notes
CrystalaExternal Frequency
Referenceb c
Min. Typ. Max. Min. Typ. Max. Units
Frequency 2.4G and 5G bands,
IEEE 802.11ac operation
35 – 52 – 52 – MHz
Frequency 5G Band,
IEEE 802.11n operation only
19– 5235– 52MHz
2.4G band IEEE 802.11n
operation, and both bands legacy
IEEE 802.11a/b/g operation only
Between 19 MHz and 52 MHz d, e
Frequency tolerance
over the lifetime of
the equipment,
including
temperaturef
Without trimming –20 – 20 –20 – 20 ppm
Crystal load
capacitance
– –16––––pF
ESR – ––60–––
Drive level External crystal must be able to
tolerate this drive level.
200–––––W
Input impedance
(WRF_XTAL_XOP)
Resistive – – – 30k 100k –
Capacitive ––7.5––7.5pF
WRF_XTAL_XOP
Input low level
DC-coupled digital signal –––0–0.2V
Reference
Clock
NC
1000 pF
WRF_XTAL_XOP
WRF_XTAL_XON
External Frequency ReferenceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 31
WRF_XTAL_XOP
Input high level
DC-coupled digital signal –––1.0–1.26V
WRF_XTAL_XOP
input voltage
(see Figure 6 on
page 30)
IEEE 802.11a/b/g operation only – – – 400 – 1200 mVp-p
WRF_XTAL_XOP
input voltage
(see Figure 6 on
page 30)
IEEE 802.11n/ac AC-coupled
analog input
–––1––V
p-p
Duty cycle 37.4 MHz clock –––405060%
Phase Noiseg
(IEEE 802.11b/g)
37.4 MHz clock at 10 kHz offset––––––129dBc/Hz
37.4 MHz clock at 100 kHz offset––––––136dBc/Hz
Phase Noiseg
(IEEE 802.11a)
37.4 MHz clock at 10 kHz offset––––––137dBc/Hz
37.4 MHz clock at 100 kHz offset––––––144dBc/Hz
Phase Noiseg
(IEEE 802.11n,
2.4 GHz)
37.4 MHz clock at 10 kHz offset––––––134dBc/Hz
37.4 MHz clock at 100 kHz offset––––––141dBc/Hz
Phase Noiseg
(IEEE 802.11n,
5GHz)
37.4 MHz clock at 10 kHz offset––––––142dBc/Hz
37.4 MHz clock at 100 kHz offset––––––149dBc/Hz
Phase Noiseg
(IEEE 802.11ac,
5GHz)
37.4 MHz clock at 10 kHz offset––––––148dBc/Hz
37.4 MHz clock at 100 kHz offset––––––155dBc/Hz
a. (Crystal) Use WRF_XTAL_XON and WRF_XTAL_XOP.
b. See “External Frequency Reference” on page 30 for alternative connection methods.
c. For a clock reference other than 37.4 MHz, 20 × log10(f/ 37.4) dB should be added to the limits, where f = the
reference clock frequency in MHz.
d. BT_TM6 should be tied low for a 52 MHz clock reference. For other frequencies, BT_TM6 should be tied high.
Note that 52 MHz is not an auto-detected frequency using the LPO clock.
e. The frequency step size is approximately 80 Hz resolution.
f. It is the responsibility of the equipment designer to select oscillator components that comply with these
specifications.
g. Assumes that external clock has a flat phase noise response above 100 kHz.
Table 2: Crystal Oscillator and External Clock—Requirements and Performance (Cont.)
Parameter Conditions/Notes
CrystalaExternal Frequency
Referenceb c
Min. Typ. Max. Min. Typ. Max. Units
Frequency SelectionBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 32
Frequency Selection
Any frequency within the ranges specified for the crystal and TCXO reference may be used. These include not
only the standard handset reference frequencies of 19.2, 19.8, 24, 26, 33.6, 37.4, 38.4, and 52 MHz, but also
other frequencies in this range, with approximately 80 Hz resolution. The BCM43455 must have the reference
frequency set correctly in order for any of the UART or PCM interfaces to function correctly, since all bit timing
is derived from the reference frequency.
The reference frequency for the BCM43455 may be set in the following ways:
•Set the xtalfreq=xxxxx parameter in the nvram.txt file (used to load the driver) to correctly match the crystal
frequency.
• Auto-detect any of the standard handset reference frequencies using an external LPO clock.
For applications such as handsets and portable smart communication devices, where the reference frequency
is one of the standard frequencies commonly used, the BCM43455 automatically detects the reference
frequency and programs itself to the correct reference frequency. In order for auto frequency detection to work
correctly, the BCM43455 must have a valid and stable 32.768 kHz LPO clock that meets the requirements listed
in Table 3 on page 33 and is present during power-on reset.
Note: The fractional-N synthesizer can support many reference frequencies. However, frequencies
other than the default require support to be added in the driver plus additional, extensive system
testing. Contact Broadcom for further details.
External 32.768 kHz Low-Power OscillatorBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 33
External 32.768 kHz Low-Power Oscillator
The BCM43455 uses a secondary low frequency clock for low-power-mode timing. Either the internal low-
precision LPO or an external 32.768 kHz precision oscillator is required. The internal LPO frequency range is
approximately 33 kHz ± 30% over process, voltage, and temperature, which is adequate for some applications.
However, one trade-off caused by this wide LPO tolerance is a small current consumption increase during power
save mode that is incurred by the need to wake-up earlier to avoid missing beacons.
Whenever possible, the preferred approach is to use a precision external 32.768 kHz clock that meets the
requirements listed in Table 3.
Table 3: External 32.768 kHz Sleep Clock Specifications
Parameter LPO Clock Units
Nominal input frequency 32.768 kHz
Frequency accuracy ±200 ppm
Duty cycle 30–70 %
Input signal amplitude 200–3300 mV, p-p
Signal type Square-wave or sine-wave –
Input impedancea
a. When power is applied or switched off.
>100k
<5
pF
Clock jitter (during initial start-up) <10,000 ppm
Bluetooth and FM Subsystem OverviewBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 34
Section 4: Bluetooth and FM Subsystem
Overview
The BCM43455 is a Bluetooth 4.1 + EDR-compliant, baseband processor with 2.4 GHz transceiver with an
integrated FM/RDS/RBDS receiver. It features the highest level of integration and eliminates all critical external
components, thus minimizing the footprint, power consumption, and system cost of a Bluetooth plus FM radio
solution.
The BCM43455 is the optimal solution for any Bluetooth voice and/or data application that also requires an FM
radio receiver. The Bluetooth subsystem presents a standard host controller interface (HCI) via a high-speed
UART and PCM for audio. The FM subsystem supports the HCI control interface, analog output, as well as I2S
and PCM interfaces. The BCM43455 incorporates all Bluetooth 4.1 features including secure simple pairing,
sniff subrating, and encryption pause and resume.
The BCM43455 Bluetooth radio transceiver provides enhanced radio performance to meet the most stringent
mobile phone temperature applications and the tightest integration into mobile handsets and portable devices.
It provides full radio compatibility to operate simultaneously with GPS, WLAN, and cellular radios.
The Bluetooth transmitter also features a Class 1 power amplifier with Class 2 capability.
Features
Primary BCM43455 Bluetooth features include:
• Supports key features of upcoming Bluetooth standards
• Fully supports Bluetooth Core Specification version 4.1 + EDR features:
– Adaptive frequency hopping (AFH)
– Quality of service (QoS)
– Extended synchronous connections (eSCO)—voice connections
– Fast connect (interlaced page and inquiry scans)
– Secure simple pairing (SSP)
– Sniff subrating (SSR)
– Encryption pause resume (EPR)
– Extended inquiry response (EIR)
– Link supervision timeout (LST)
• UART baud rates up to 4 Mbps
• Supports all Bluetooth 4.1 + HS packet types
• Supports maximum Bluetooth data rates over HCI UART
• Multipoint operation with up to seven active slaves
– Maximum of seven simultaneous active ACL links
– Maximum of three simultaneous active SCO and eSCO connections with scatternet support
FeaturesBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 35
• Trigger Broadcom fast connect (TBFC)
• Narrowband and wideband packet loss concealment
• Scatternet operation with up to four active piconets with background scan and support for scatter mode
• High-speed HCI UART transport support with low-power out-of-band BT_DEV_WAKE and
BT_HOST_WAKE signaling (see “Host Controller Power Management” on page 40)
• Channel quality driven data rate and packet type selection
• Standard Bluetooth test modes
• Extended radio and production test mode features
• Full support for power savings modes
– Bluetooth clock request
– Bluetooth standard sniff
– Deep-sleep modes and software regulator shutdown
• Supports a low-power crystal, which can be used during power save mode for better timing accuracy.
Major FM radio features include:
• 65 MHz to 108 MHz FM bands supported (US, Europe, and Japan)
• FM subsystem control using the Bluetooth HCI interface
• FM subsystem operates from reference clock inputs.
• Improved audio interface capabilities with full-featured bidirectional PCM and I2S
•I
2S can be master or slave.
FM receiver-specific features include:
• Excellent FM radio performance with 1 V sensitivity for 26 dB (S + N) ÷ N
• Signal-dependent stereo/mono blending
• Signal dependent soft mute
• Auto search and tuning modes
• Audio silence detection
• RSSI, IF frequency, status indicators
• RDS and RBDS demodulator and decoder with filter and buffering functions
• Automatic frequency jump
Bluetooth RadioBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 36
Bluetooth Radio
The BCM43455 has an integrated radio transceiver that has been optimized for use in 2.4 GHz Bluetooth
wireless systems. It has been designed to provide low-power, low-cost, robust communications for applications
operating in the globally available 2.4 GHz unlicensed ISM band. It is fully compliant with the Bluetooth Radio
Specification and EDR specification and meets or exceeds the requirements to provide the highest
communication link quality of service.
Transmit
The BCM43455 features a fully integrated zero-IF transmitter. The baseband transmit data is GFSK-modulated
in the modem block and upconverted to the 2.4 GHz ISM band in the transmitter path. The transmitter path
consists of signal filtering, I/Q upconversion, output power amplifier, and RF filtering. The transmitter path also
incorporates /4-DQPSK for 2 Mbps and 8-DPSK for 3 Mbps to support EDR. The transmitter section is
compatible to the Bluetooth Low Energy specification. The transmitter PA bias can also be adjusted to provide
Bluetooth class 1 or class 2 operation.
Digital Modulator
The digital modulator performs the data modulation and filtering required for the GFSK, /4-DQPSK, and
8-DPSK signal. The fully digital modulator minimizes any frequency drift or anomalies in the modulation
characteristics of the transmitted signal and is much more stable than direct VCO modulation schemes.
Digital Demodulator and Bit Synchronizer
The digital demodulator and bit synchronizer take the low-IF received signal and perform an optimal frequency
tracking and bit-synchronization algorithm.
Power Amplifier
The fully integrated PA supports Class 1 or Class 2 output using a highly linearized, temperature-compensated
design. This provides greater flexibility in front-end matching and filtering. Due to the linear nature of the PA
combined with some integrated filtering, external filtering is required to meet the Bluetooth and regulatory
harmonic and spurious requirements. For integrated mobile handset applications in which Bluetooth is
integrated next to the cellular radio, external filtering can be applied to achieve near thermal noise levels for
spurious and radiated noise emissions. The transmitter features a sophisticated on-chip transmit signal strength
indicator (TSSI) block to keep the absolute output power variation within a tight range across process, voltage,
and temperature.
Bluetooth RadioBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 37
Receiver
The receiver path uses a low-IF scheme to downconvert the received signal for demodulation in the digital
demodulator and bit synchronizer. The receiver path provides a high degree of linearity, an extended dynamic
range, and high-order on-chip channel filtering to ensure reliable operation in the noisy 2.4 GHz ISM band. The
front-end topology with built-in out-of-band attenuation enables the BCM43455 to be used in most applications
with minimal off-chip filtering. For integrated handset operation, in which the Bluetooth function is integrated
close to the cellular transmitter, external filtering is required to eliminate the desensitization of the receiver by
the cellular transmit signal.
Digital Demodulator and Bit Synchronizer
The digital demodulator and bit synchronizer take the low-IF received signal and perform an optimal frequency
tracking and bit synchronization algorithm.
Receiver Signal Strength Indicator
The radio portion of the BCM43455 provides a receiver signal strength indicator (RSSI) signal to the baseband,
so that the controller can take part in a Bluetooth power-controlled link by providing a metric of its own receiver
signal strength to determine whether the transmitter should increase or decrease its output power.
Local Oscillator Generation
A local oscillator (LO) generation provides fast frequency hopping (1600 hops/second) across the 79 maximum
available channels. The LO generation subblock employs an architecture for high immunity to LO pulling during
PA operation. The BCM43455 uses an internal RF and IF loop filter.
Calibration
The BCM43455 radio transceiver features an automated calibration scheme that is fully self contained in the
radio. No user interaction is required during normal operation or during manufacturing to provide the optimal
performance. Calibration optimizes the performance of all the major blocks within the radio to within 2% of
optimal conditions, including gain and phase characteristics of filters, matching between key components, and
key gain blocks. This takes into account process variation and temperature variation. Calibration occurs
transparently during normal operation during the settling time of the hops and calibrates for temperature
variations as the device cools and heats during normal operation in its environment.
Bluetooth Baseband CoreBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 38
Section 5: Bluetooth Baseband Core
The Bluetooth Baseband Core (BBC) implements all of the time critical functions required for high-performance
Bluetooth operation. The BBC manages the buffering, segmentation, and routing of data for all connections. It
also buffers data that passes through it, handles data flow control, schedules SCO/ACL TX/RX transactions,
monitors Bluetooth slot usage, optimally segments and packages data into baseband packets, manages
connection status indicators, and composes and decodes HCI packets. In addition to these functions, it
independently handles HCI event types, and HCI command types.
The following transmit and receive functions are also implemented in the BBC hardware to increase reliability
and security of the TX/RX data before sending over the air:
• Symbol timing recovery, data deframing, forward error correction (FEC), header error control (HEC), cyclic
redundancy check (CRC), data decryption, and data dewhitening in the receiver.
• Data framing, FEC generation, HEC generation, CRC generation, key generation, data encryption, and
data whitening in the transmitter.
Bluetooth 4.0 Features
The BBC supports all Bluetooth 4.0 features, with the following benefits:
• Dual-mode Bluetooth Low Energy (BT and BLE operation)
• Extended Inquiry Response (EIR): Shortens the time to retrieve the device name, specific profile, and
operating mode.
• Encryption Pause Resume (EPR): Enables the use of Bluetooth technology in a much more secure
environment.
• Sniff Subrating (SSR): Optimizes power consumption for low duty cycle asymmetric data flow, which
subsequently extends battery life.
• Secure Simple Pairing (SSP): Reduces the number of steps for connecting two devices, with minimal or no
user interaction required.
• Link Supervision Time Out (LSTO): Additional commands added to HCI and Link Management Protocol
(LMP) for improved link time-out supervision.
• QoS enhancements: Changes to data traffic control, which results in better link performance. Audio, human
interface device (HID), bulk traffic, SCO, and enhanced SCO (eSCO) are improved with the erroneous data
(ED) and packet boundary flag (PBF) enhancements.
Bluetooth 4.1 FeaturesBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 39
Bluetooth 4.1 Features
The BBC supports all Bluetooth 4.1 features, with the following benefits:
• Dual-mode classic Bluetooth and classic low energy (BT and BLE) operation
• Low-energy physical layer
• Low-energy link layer
• Enhancements to HCI for low energy
• Low-energy direct test mode
• 128 AES-CCM secure connection for both BT and BLE
Bluetooth Low Energy
The BCM43455 supports the Bluetooth Low Energy operating mode.
Link Control Layer
The link control layer is part of the Bluetooth link control functions that are implemented in dedicated logic in the
link control unit (LCU). This layer consists of the command controller that takes commands from the software,
and other controllers that are activated or configured by the command controller, to perform the link control
tasks. Each task performs a different state in the Bluetooth Link Controller.
• Major states:
– Standby
– Connection
• Substates:
–Page
– Page Scan
– Inquiry
– Inquiry Scan
–Sniff
Note: The BCM43455 is compatible with the Bluetooth Low Energy operating mode, which provides
a dramatic reduction in the power consumption of the Bluetooth radio and baseband. The primary
application for this mode is to provide support for low data rate devices, such as sensors and remote
controls.
Test Mode SupportBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 40
Test Mode Support
The BCM43455 fully supports Bluetooth Test mode as described in Part I:1 of the Specification of the Bluetooth
System Version 3.0. This includes the transmitter tests, normal and delayed loopback tests, and reduced
hopping sequence.
In addition to the standard Bluetooth Test Mode, the BCM43455 also supports enhanced testing features to
simplify RF debugging and qualification and type-approval testing. These features include:
• Fixed frequency carrier wave (unmodulated) transmission
– Simplifies some type-approval measurements (Japan)
– Aids in transmitter performance analysis
• Fixed frequency constant receiver mode
– Receiver output directed to I/O pin
– Allows for direct BER measurements using standard RF test equipment
– Facilitates spurious emissions testing for receive mode
• Fixed frequency constant transmission
– 8-bit fixed pattern or PRBS-9
– Enables modulated signal measurements with standard RF test equipment
Bluetooth Power Management Unit
The Bluetooth Power Management Unit (PMU) provides power management features that can be invoked by
either software through power management registers or packet handling in the baseband core.
The power management functions provided by the BCM43455 are:
•RF Power Management
•Host Controller Power Management
•“BBC Power Management” on page 43
•“FM Over Bluetooth” on page 44
RF Power Management
The BBC generates power-down control signals for the transmit path, receive path, PLL, and power amplifier to
the 2.4 GHz transceiver. The transceiver then processes the power-down functions accordingly.
Host Controller Power Management
When running in UART mode, the BCM43455 may be configured so that dedicated signals are used for power
management hand-shaking between the BCM43455 and the host. The basic power saving functions supported
by those hand-shaking signals include the standard Bluetooth defined power savings modes and standby
modes of operation. Table 4 on page 41 describes the power-control handshake signals used with the UART
interface.
Bluetooth Power Management UnitBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 41
Note: Pad function Control Register is set to 0 for these pins. See “DC Characteristics” on page 97 for
more details.
Table 4: Power Control Pin Description
Signal Mapped to Pin Type Description
BT_DEV_WAKE BT_GPIO_0 I Bluetooth device wake-up: Signal from the host to the
BCM43455 indicating that the host requires attention.
• Asserted: The Bluetooth device must wake-up or
remain awake.
• Deasserted: The Bluetooth device may sleep when
sleep criteria are met.
The polarity of this signal is software configurable and
can be asserted high or low.
BT_HOST_WAKE BT_GPIO_1 O Host wake-up. Signal from the BCM43455 to the host
indicating that the BCM43455 requires attention.
• Asserted: host device must wake-up or remain
awake.
• Deasserted: host device may sleep when sleep
criteria are met.
The polarity of this signal is software configurable and
can be asserted high or low.
BT_CLK_REQ BT_CLK_REQ_OUT
WL_CLK_REQ_OUT
O The BCM43455 asserts BT_CLK_REQ when Bluetooth
or WLAN wants the host to turn on the reference clock.
The BT_CLK_REQ polarity is active-high. Add an
external 100 k pull-down resistor to ensure the signal
is deasserted when the BCM43455 powers up or resets
when VDDIO is present.
BTH
F
L-—_____|.________|____J__________________
Rm
|
Bluetooth Power Management UnitBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 42
Figure 7 shows the startup signaling sequence prior to software download.

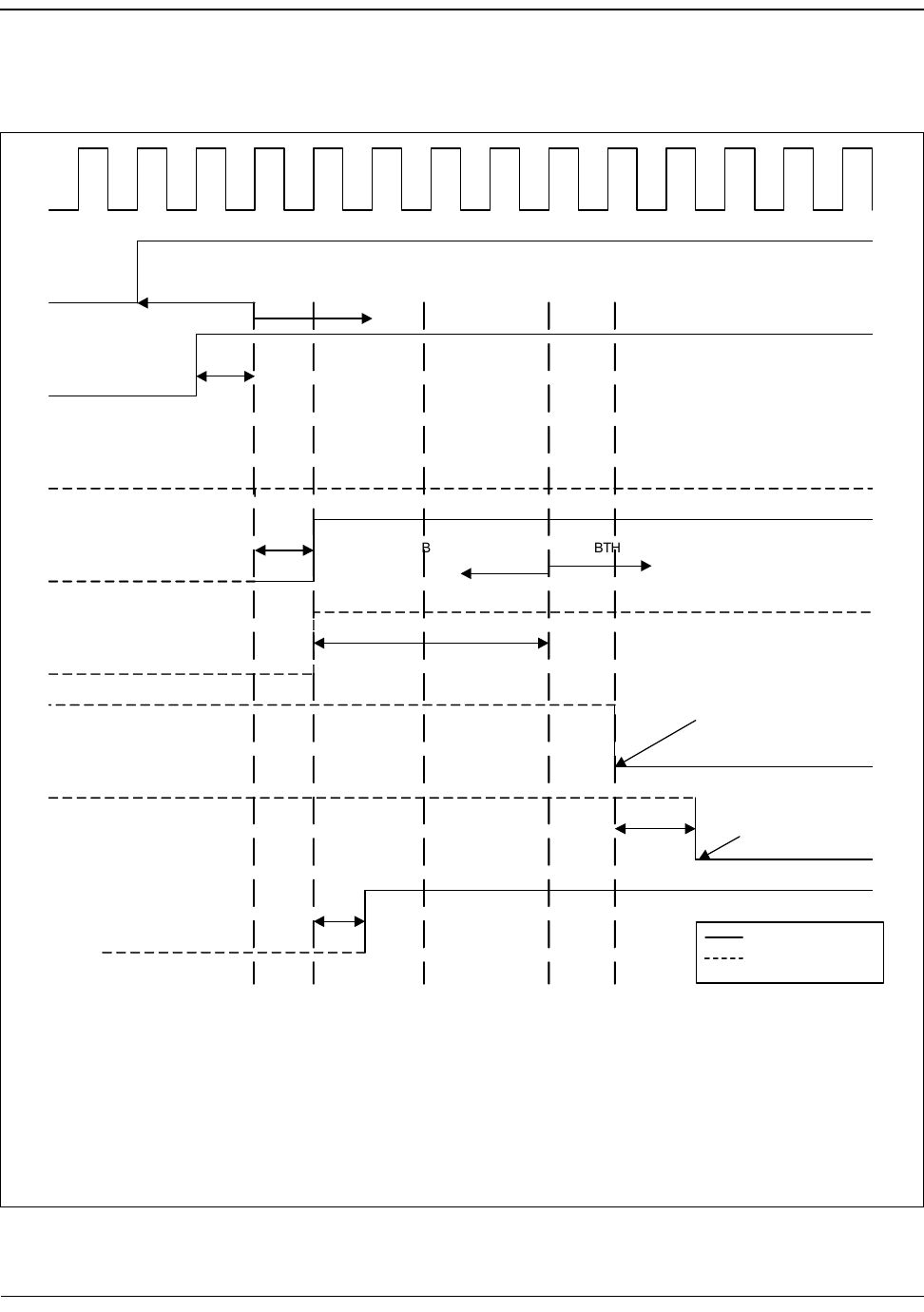

Figure 7: Startup Signaling Sequence Prior to Software Download
HostResetX
VDDIO
LPO
BT_DEV_WAKE
BT_UART_CTS_N
CLK_REQ_OUT
BT_HOST_WAKE
BT_REG_ON
BT_UART_RTS_N
Host IOs configured
Host IOs unconfigured
BTH IOs configuredBTH IOs unconfigured
T4
T5
T3
T2
T1
Notes :
T1 is the time for Host to settle it’s IOs after a reset.
T2 is the time for Host to drive BT_REG_ON high after the Host IOs are configured.
T3 is the time for BTH (Bluetooth) device to settle its IOs after a reset and reference clock settling time has elapsed.
T4 is the time for BTH device to drive BT_UART_RTS_N low after the Host drives BT_UART_CTS_N low. This assumes the BTH device has already
completed initialization.
T5 is the time for BTH device to drive CLK_REQ_OUT high after BT_REG_ON goes high. Note this pin is used for designs that use an external reference
clock source from the Host. This pin is irrelevant for Crystal reference clock based designs where the BTH device generates it’s own reference clock from
an external crystal connected to it’s oscillator circuit.
Timing diagram assumes VBAT is present.
Driven
Pulled
BTH device drives this line low
indicating transport is ready
Host side drives this line
low
Bluetooth Power Management UnitBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 43
BBC Power Management
The following are low-power operations for the BBC:
• Physical layer packet-handling turns the RF on and off dynamically within transmit/receive packets.
• Bluetooth-specified low-power connection modes: sniff, hold, and park. While in these modes, the
BCM43455 runs on the low-power oscillator and wakes up after a predefined time period.
• A low-power shutdown feature allows the device to be turned off while the host and any other devices in the
system remain operational. When the BCM43455 is not needed in the system, the RF and core supplies
are shut down while the I/O remains powered. This allows the BCM43455 to effectively be off while keeping
the I/O pins powered so they do not draw extra current from any other devices connected to the I/O.
During the low-power shutdown state, provided VDDIO remains applied to the BCM43455, all outputs are
tristated, and most input signals are disabled. Input voltages must remain within the limits defined for normal
operation. This is done to prevent current paths or create loading on any digital signals in the system and
enables the BCM43455 to be fully integrated in an embedded device to take full advantage of the lowest
power-saving modes.
Two BCM43455 input signals are designed to be high-impedance inputs that do not load the driving signal
even if the chip does not have VDDIO power supplied to it: the frequency reference input (WRF_TCXO_IN)
and the 32.768 kHz input (LPO). When the BCM43455 is powered on from this state, it is the same as a
normal power-up, and the device does not contain any information about its state from the time before it was
powered down.
Wideband Speech
The BCM43455 provides support for wideband speech (WBS) using on-chip Broadcom SmartAudio®
technology. The BCM43455 can perform subband-codec (SBC), as well as mSBC, encoding and decoding of
linear 16 bits at 16 kHz (256 Kbps rate) transferred over the PCM bus.
Packet Loss Concealment
Packet Loss Concealment (PLC) improves apparent audio quality for systems with marginal link performance.
Bluetooth messages are sent in packets. When a packet is lost, it creates a gap in the received audio bit-stream.
Packet loss can be mitigated in several ways:
• Fill in zeros.
• Ramp down the output audio signal toward zero (this is the method used in current Bluetooth headsets).
• Repeat the last frame (or packet) of the received bit-stream and decode it as usual (frame repeat).
These techniques cause distortion and popping in the audio stream. The BCM43455 uses a proprietary
waveform extension algorithm to provide dramatic improvement in the audio quality. Figure 8 and Figure 9 on
page 44 show audio waveforms with and without Packet Loss Concealment. Broadcom PLC/BEC algorithms
also support wideband speech.
Bluetooth Power Management UnitBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 44
Figure 8: CVSD Decoder Output Waveform Without PLC
Figure 9: CVSD Decoder Output Waveform After Applying PLC
Audio Rate-Matching Algorithms
The BCM43455 has an enhanced rate-matching algorithm that uses interpolation algorithms to reduce audio
stream jitter that may be present when the rate of audio data coming from the host is not the same as the
Bluetooth audio data rates.
Codec Encoding
The BCM43455 can support SBC and mSBC encoding and decoding for wideband speech.
Multiple Simultaneous A2DP Audio Stream
The BCM43455 has the ability to take a single audio stream and output it to multiple Bluetooth devices
simultaneously. This allows a user to share his or her music (or any audio stream) with a friend.
FM Over Bluetooth
FM Over Bluetooth enables the BCM43455 to stream data from FM over Bluetooth without requiring the host to
be awake. This can significantly extend battery life for usage cases where someone is listening to FM radio on
a Bluetooth headset.
Burst Buffer Operation
The BCM43455 has a data buffer that can buffer data being sent over the HCI and audio transports, then send
the data at an increased rate. This mode of operation allows the host to sleep for the maximum amount of time,
dramatically reducing system current consumption.
Packet Loss Causes Ramp-down
Adaptive Frequency HoppingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 45
Adaptive Frequency Hopping
The BCM43455 gathers link quality statistics on a channel by channel basis to facilitate channel assessment
and channel map selection. The link quality is determined using both RF and baseband signal processing to
provide a more accurate frequency-hop map.
Advanced Bluetooth/WLAN Coexistence
The BCM43455 includes advanced coexistence technologies that are only possible with a Bluetooth/WLAN
integrated die solution. These coexistence technologies are targeted at small form-factor platforms, such as cell
phones and media players, including applications such as VoWLAN + SCO and Video-over-WLAN + High
Fidelity BT Stereo.
Support is provided for platforms that share a single antenna between Bluetooth and WLAN. Dual-antenna
applications are also supported. The BCM43455 radio architecture allows for lossless simultaneous Bluetooth
and WLAN reception for shared antenna applications. This is possible only via an integrated solution (shared
LNA and joint AGC algorithm). It has superior performance versus implementations that need to arbitrate
between Bluetooth and WLAN reception.
The BCM43455 integrated solution enables MAC-layer signaling (firmware) and a greater degree of sharing via
an enhanced coexistence interface. Information is exchanged between the Bluetooth and WLAN cores without
host processor involvement.
The BCM43455 also supports Transmit Power Control on the STA together with standard Bluetooth TPC to limit
mutual interference and receiver desensitization. Preemption mechanisms are utilized to prevent AP
transmissions from colliding with Bluetooth frames. Improved channel classification techniques have been
implemented in Bluetooth for faster and more accurate detection and elimination of interferers (including non-
WLAN 2.4 GHz interference).
The Bluetooth AFH classification is also enhanced by the WLAN core’s channel information.
Fast Connection (Interlaced Page and Inquiry Scans)
The BCM43455 supports page scan and inquiry scan modes that significantly reduce the average inquiry
response and connection times. These scanning modes are compatible with the Bluetooth version 2.1 page and
inquiry procedures.
Microprocessor and Memory Unit for BluetoothBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 46
Section 6: Microprocessor and Memory
Unit for Bluetooth
The Bluetooth microprocessor core is based on the ARM Cortex-M3 32-bit RISC processor with embedded ICE-
RT debug and JTAG interface units. It runs software from the link control (LC) layer, up to the host controller
interface (HCI).
The ARM core is paired with a memory unit that contains 845 KB of ROM memory for program storage and boot
ROM, 270 KB of RAM for data scratchpad and patch RAM code. The internal ROM allows for flexibility during
power-on reset to enable the same device to be used in various configurations. At power-up, the lower-layer
protocol stack is executed from the internal ROM memory.
External patches may be applied to the ROM-based firmware to provide flexibility for bug fixes or features
additions. These patches may be downloaded from the host to the BCM43455 through the UART transports.
The mechanism for downloading via UART is identical to the proven interface of the BCM4329 and BCM4330
devices.
RAM, ROM, and Patch Memory
The BCM43455 Bluetooth core has 270 KB of internal RAM which is mapped between general purpose scratch
pad memory and patch memory and 845 KB of ROM used for the lower-layer protocol stack, test mode software,
and boot ROM. The patch memory capability enables the addition of code changes for purposes of feature
additions and bug fixes to the ROM memory.
Reset
The BCM43455 has an integrated power-on reset circuit that resets all circuits to a known power-on state. The
BT power-on reset (POR) circuit is out of reset after BT_REG_ON goes High. If BT_REG_ON is low, then the
POR circuit is held in reset.
Bluetooth Peripheral Transport UnitBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 47
Section 7: Bluetooth Peripheral Transport Unit
SPI Interface
The BCM43455 supports a slave SPI HCI transport with an input clock range of up to 16 MHz. Higher clock rates
can be possible. The physical interface between the SPI master and the BCM43455 consists of the four SPI
signals (SPI_CSB, SPI_CLK, SPI_SI, and SPI_SO) and one interrupt signal (SPI_INT). The SPI signals are
muxed onto the UART signals (see Tab le 5). The BCM43455 can be configured to accept active-low or active-
high polarity on the SPI_CSB chip select signal. It can also be configured to drive an active-low or active-high
SPI_INT interrupt signal. Bit ordering on the SPI_SI and SPI_SO data lines can be configured as either little-
endian or big-endian. Additionally, proprietary sleep mode and half-duplex handshaking is implemented
between the SPI master and the BCM43455. The SPI_INT is required to negotiate the start of a transaction. The
SPI interface does not require flow control in the middle of a payload. The FIFO is large enough to handle the
largest packet size. Only the SPI master can stop the flow of bytes on the data lines, since it controls SPI_CSB
and SPI_CLK. Flow control should be implemented in the higher layer protocols.
SPI/UART Transport Detection
The BT_HOST_WAKE (BT_GPIO1) pin is also used for BT transport detection. The transport detection occurs
during the power-up sequence. It selects either UART or SPI transport operation based on the following pin
state:
• If the BT_HOST_WAKE (BT_GPIO1) pin is pulled low by an external pull-down during power-up, it selects
the SPI transport interface.
• If the BT_HOST_WAKE (BT_GPIO1) pin is not pulled low externally during power-up, then the default
internal pull-up is detected as a high and it selects the UART transport interface.
Table 5: SPI-to-UART Signal Mapping
SPI Signals UART Signals
SPI_CLK BT_UART_CTS_N
SPI_CSB BT_UART_RTS_N
SPI_MISO BT_UART_RXD
SPI_MOSI BT_UART_TXD
SPI_INT BT_HOST_WAKE
PCM InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 48
PCM Interface
The BCM43455 supports two independent PCM interfaces that share the pins with the I2S interfaces. The PCM
Interface on the BCM43455 can connect to linear PCM Codec devices in master or slave mode. In master mode,
the BCM43455 generates the PCM_CLK and PCM_SYNC signals, and in slave mode, these signals are
provided by another master on the PCM interface and are inputs to the BCM43455.
The configuration of the PCM interface may be adjusted by the host through the use of vendor-specific HCI
commands.
Slot Mapping
The BCM43455 supports up to three simultaneous full-duplex SCO or eSCO channels through the PCM
interface. These three channels are time-multiplexed onto the single PCM interface by using a time-slotting
scheme where the 8 kHz or 16 kHz audio sample interval is divided into as many as 16 slots. The number of
slots is dependent on the selected interface rate of 128 kHz, 512 kHz, or 1024 kHz. The corresponding number
of slots for these interface rate is 1, 2, 4, 8, and 16, respectively. Transmit and receive PCM data from an SCO
channel is always mapped to the same slot. The PCM data output driver tristates its output on unused slots to
allow other devices to share the same PCM interface signals. The data output driver tristates its output after the
falling edge of the PCM clock during the last bit of the slot.
Frame Synchronization
The BCM43455 supports both short- and long-frame synchronization in both master and slave modes. In short-
frame synchronization mode, the frame synchronization signal is an active-high pulse at the audio frame rate
that is a single-bit period in width and is synchronized to the rising edge of the bit clock. The PCM slave looks
for a high on the falling edge of the bit clock and expects the first bit of the first slot to start at the next rising edge
of the clock. In long-frame synchronization mode, the frame synchronization signal is again an active-high pulse
at the audio frame rate; however, the duration is three bit periods and the pulse starts coincident with the first
bit of the first slot.
Data Formatting
The BCM43455 may be configured to generate and accept several different data formats. For conventional
narrowband speech mode, the BCM43455 uses 13 of the 16 bits in each PCM frame. The location and order of
these 13 bits can be configured to support various data formats on the PCM interface. The remaining three bits
are ignored on the input and may be filled with 0s, 1s, a sign bit, or a programmed value on the output. The
default format is 13-bit 2’s complement data, left justified, and clocked MSB first.
WHHMHHH HHHH
nnnnnmnnnni
PCM InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 49
Wideband Speech Support
When the host encodes Wideband Speech (WBS) packets in transparent mode, the encoded packets are
transferred over the PCM bus for an eSCO voice connection. In this mode, the PCM bus is typically configured
in master mode for a 4 kHz sync rate with 16-bit samples, resulting in a 64 Kbps bit rate. The BCM43455 also
supports slave transparent mode using a proprietary rate-matching scheme. In SBC-code mode, linear 16-bit
data at 16 kHz (256 Kbps rate) is transferred over the PCM bus.
Multiplexed Bluetooth Over PCM
Bluetooth supports multiple audio streams within the Bluetooth channel and both 16 kHz and 8 kHz streams can
be multiplexed. This mode of operation is only supported when the Bluetooth host is the master. Figure 10
shows the operation of the multiplexed transport with three simultaneous SCO connections. To accommodate
additional SCO channels, the transport clock speed is increased. To change between modes of operation, the
transport must be halted and restarted in the new configuration.

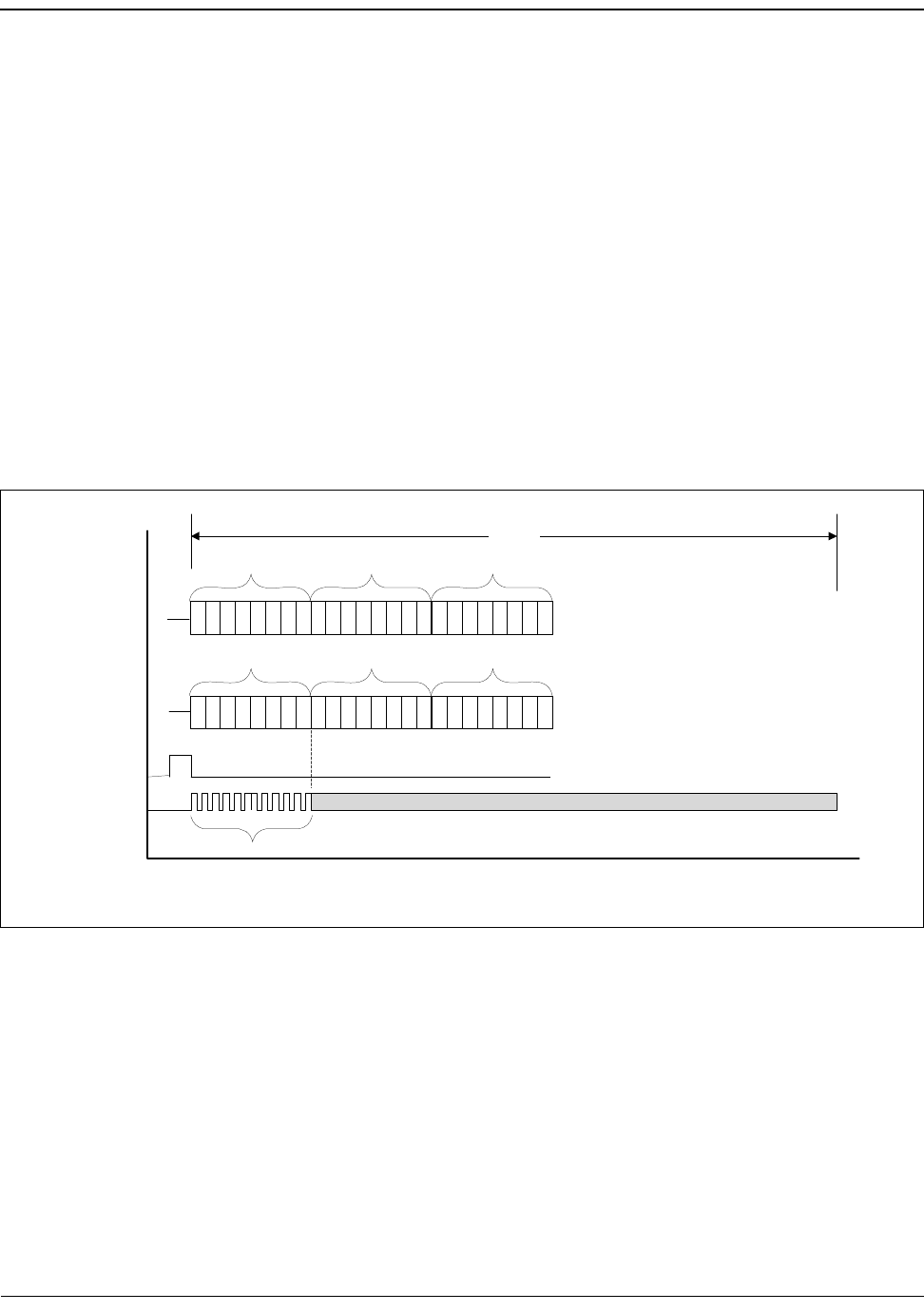

Figure 10: Functional Multiplex Data Diagram
Burst PCM Mode
In this mode of operation, the PCM bus runs at a significantly higher rate of operation to allow the host to duty
cycle its operation and save current. In this mode of operation, the PCM bus can operate at a rate of up to
24 MHz. This mode of operation is initiated with an HCI command from the host.
PCM_SYNC
PCM_IN
PCM_OUT
BT SCO 1 Tx BT SCO 2 Tx BT SCO 3 Tx
BT SCO 1 Rx BT SCO 2 Rx BT SCO 3 Rx
1 frame
PCM_CLK
16 bits per SCO frame
CLK
Each SCO channel duplicates the data 6 times. Each
WBS frame duplicates the data 3 times per frame
><>PCM InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 50
PCM Interface Timing
Short Frame Sync, Master Mode

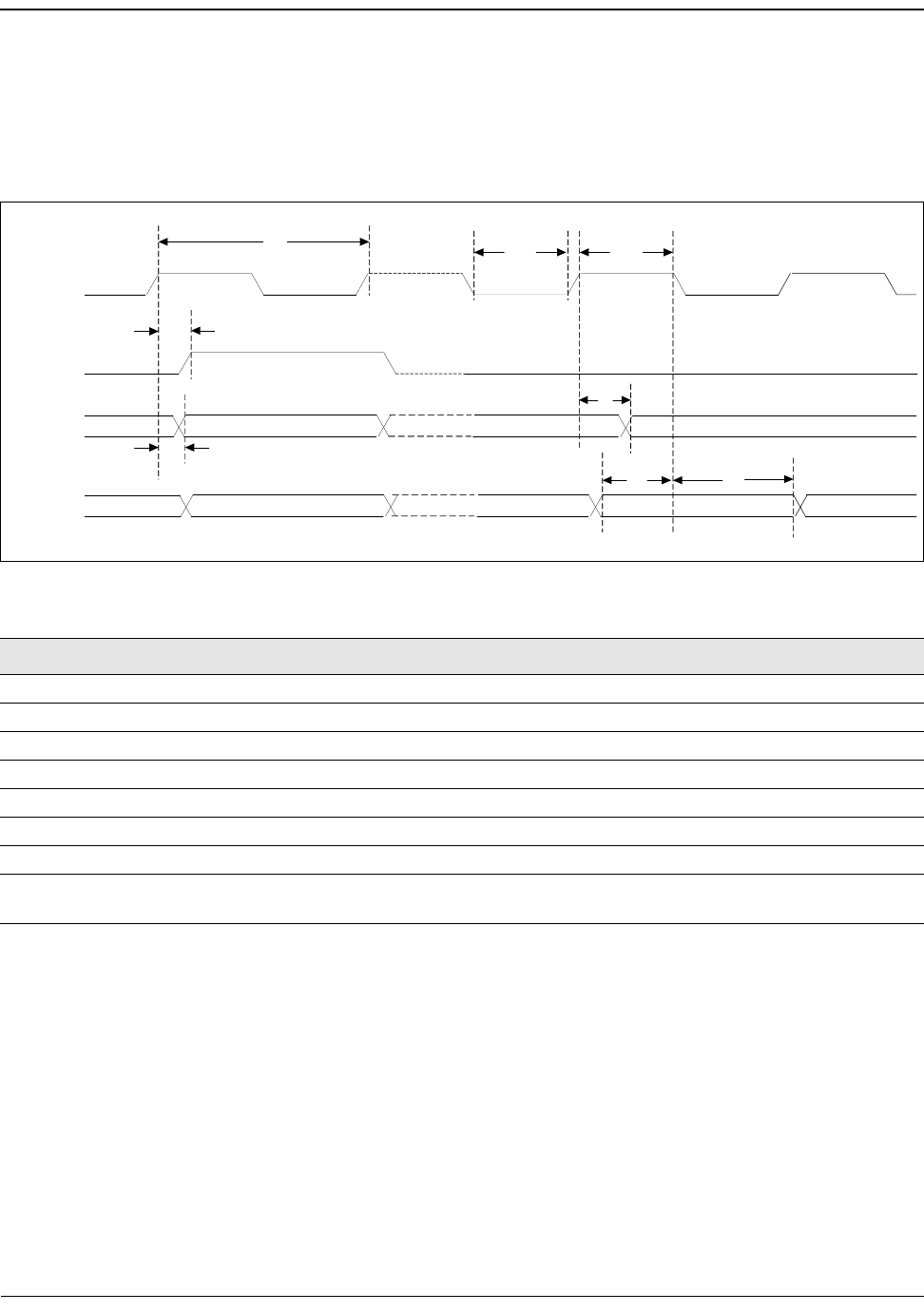

Figure 11: PCM Timing Diagram (Short Frame Sync, Master Mode)
Table 6: PCM Interface Timing Specifications (Short Frame Sync, Master Mode)
Reference Characteristics Minimum Typical Maximum Unit
1 PCM bit clock frequency – – 12 MHz
2 PCM bit clock LOW 41 – – ns
3 PCM bit clock HIGH 41 – – ns
4 PCM_SYNC delay 0 – 25 ns
5 PCM_OUT delay 0 – 25 ns
6 PCM_IN setup 8 – – ns
7 PCM_IN hold 8 – – ns
8 Delay from rising edge of PCM_BCLK during last bit
period to PCM_OUT becoming high impedance
0 – 25 ns
PCM_BCLK
PCM_SYNC
PCM_OUT
123
4
5
PCM_IN
6
8
HIGH IMPEDANCE
7
PCM InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 51
Short Frame Sync, Slave Mode

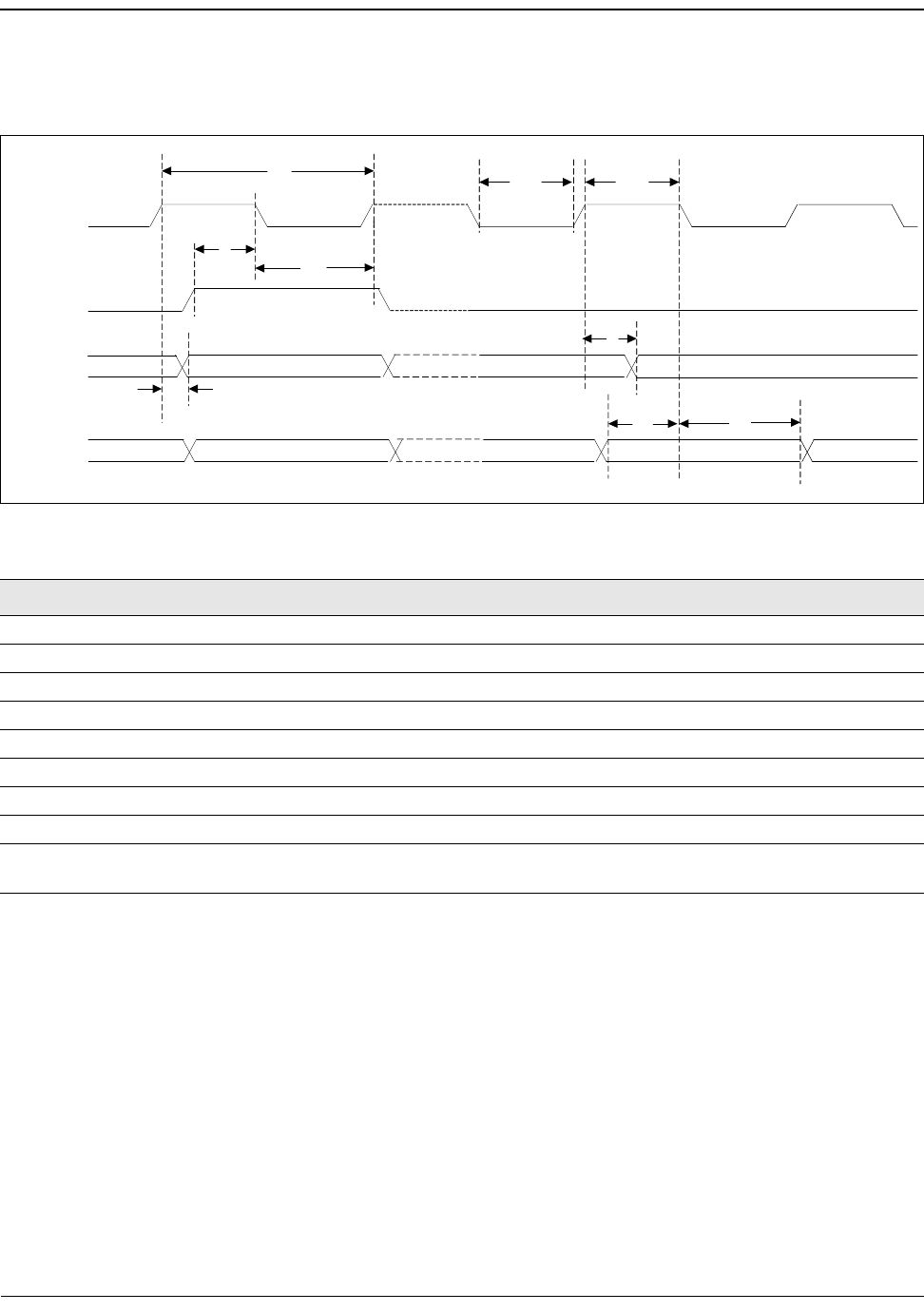

Figure 12: PCM Timing Diagram (Short Frame Sync, Slave Mode)
Table 7: PCM Interface Timing Specifications (Short Frame Sync, Slave Mode)
Reference Characteristics Minimum Typical Maximum Unit
1 PCM bit clock frequency – – 12 MHz
2 PCM bit clock LOW 41 – – ns
3 PCM bit clock HIGH 41 – – ns
4 PCM_SYNC setup 8 – – ns
5 PCM_SYNC hold 8 – – ns
6 PCM_OUT delay 0 – 25 ns
7 PCM_IN setup 8 – – ns
8 PCM_IN hold 8 – – ns
9 Delay from rising edge of PCM_BCLK during last bit
period to PCM_OUT becoming high impedance
0–25ns
PCM_BCLK
PCM_SYNC
PCM_OUT
123
4
5
6
PCM_IN
7
9
HIGH IMPEDANCE
8
PCM InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 52
Long Frame Sync, Master Mode
Figure 13: PCM Timing Diagram (Long Frame Sync, Master Mode)
Table 8: PCM Interface Timing Specifications (Long Frame Sync, Master Mode)
Reference Characteristics Minimum Typical Maximum Unit
1 PCM bit clock frequency – – 12 MHz
2 PCM bit clock LOW 41 – – ns
3 PCM bit clock HIGH 41 – – ns
4 PCM_SYNC delay 0 – 25 ns
5 PCM_OUT delay 0 – 25 ns
6 PCM_IN setup 8 – – ns
7 PCM_IN hold 8 – – ns
8 Delay from rising edge of PCM_BCLK during last bit
period to PCM_OUT becoming high impedance
0–25ns
PCM_BCLK
PCM_SYNC
PCM_OUT
123
4
5
PCM_IN
6
8
HIGH IMPEDANCE
7
Bit 0
Bit 0
Bit 1
Bit 1
PCM InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 53
Long Frame Sync, Slave Mode

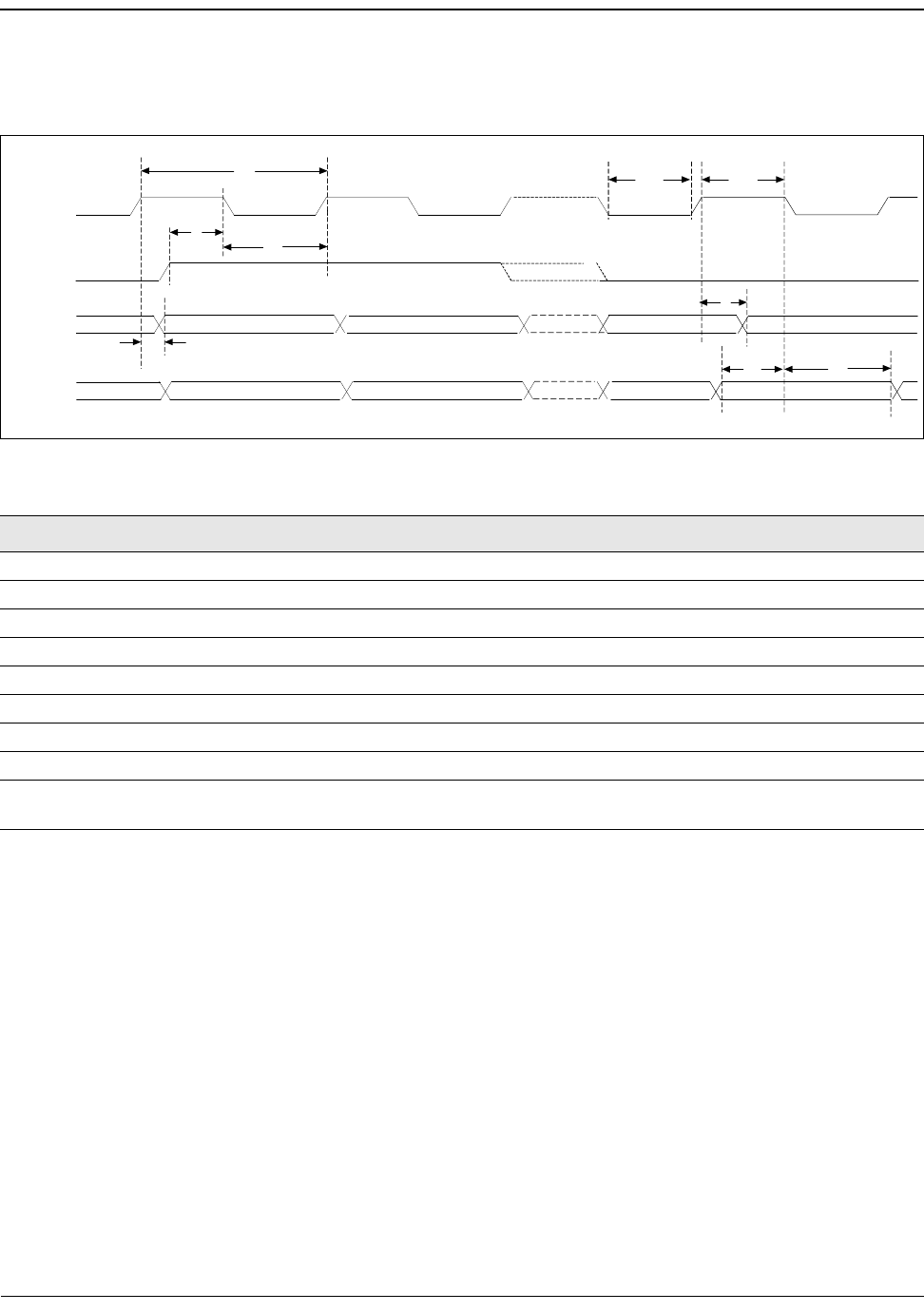

Figure 14: PCM Timing Diagram (Long Frame Sync, Slave Mode)
Table 9: PCM Interface Timing Specifications (Long Frame Sync, Slave Mode)
Reference Characteristics Minimum Typical Maximum Unit
1 PCM bit clock frequency – – 12 MHz
2 PCM bit clock LOW 41 – – ns
3 PCM bit clock HIGH 41 – – ns
4 PCM_SYNC setup 8 – – ns
5 PCM_SYNC hold 8 – – ns
6 PCM_OUT delay 0 – 25 ns
7 PCM_IN setup 8 – – ns
8 PCM_IN hold 8 – – ns
9 Delay from rising edge of PCM_BCLK during last bit
period to PCM_OUT becoming high impedance
0 – 25 ns
PCM_BCLK
PCM_SYNC
PCM_OUT
123
4
5
6
PCM_IN
7
9
HIGH IMPEDANCE
8
Bit 0
Bit 0
Bit 1
Bit 1
PCM InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 54
Short Frame Sync, Burst Mode

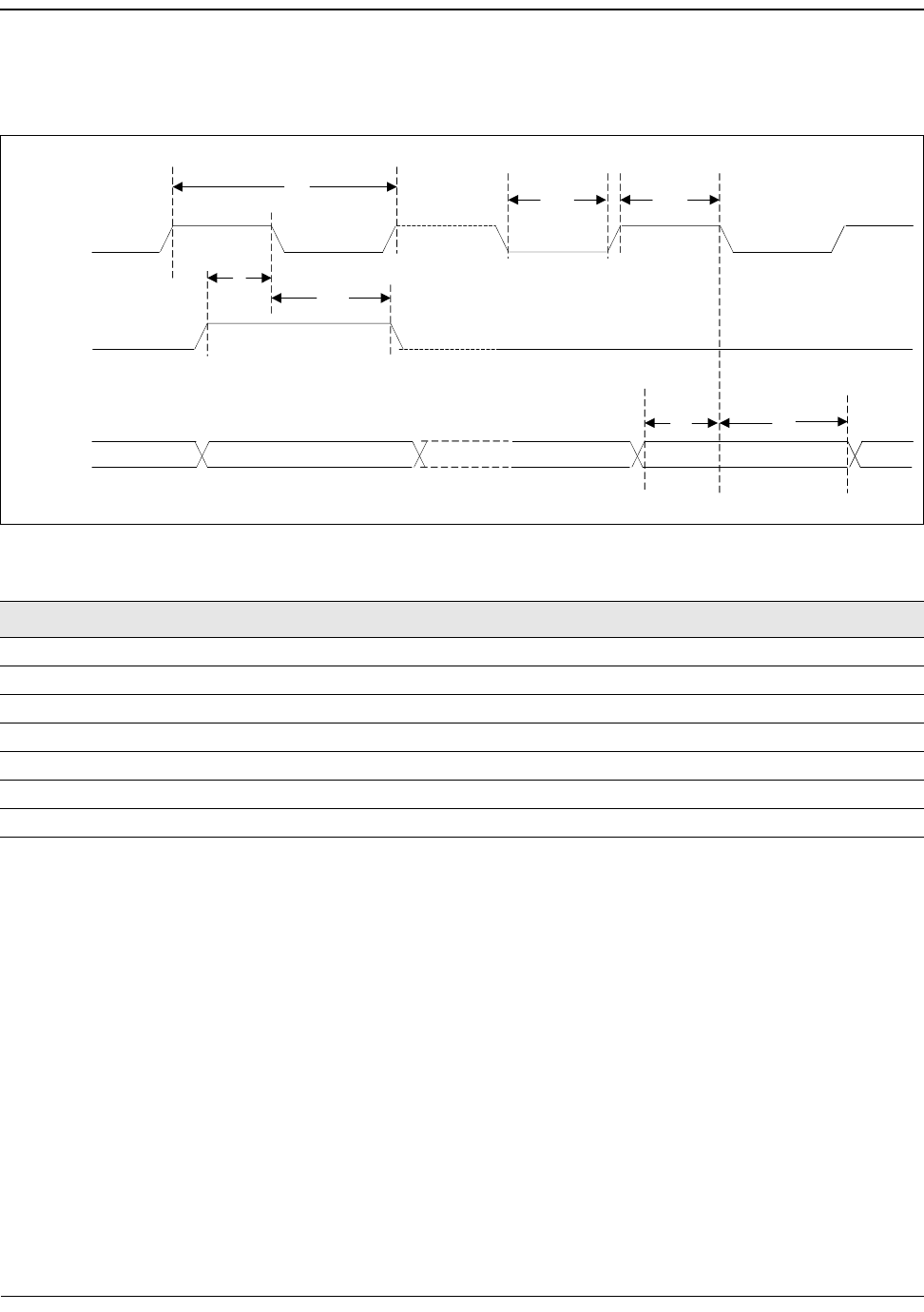

Figure 15: PCM Burst Mode Timing (Receive Only, Short Frame Sync)
Table 10: PCM Burst Mode (Receive Only, Short Frame Sync)
Reference Characteristics Minimum Typical Maximum Unit
1 PCM bit clock frequency – – 24 MHz
2 PCM bit clock LOW 20.8 – – ns
3 PCM bit clock HIGH 20.8 – – ns
4 PCM_SYNC setup 8 – – ns
5 PCM_SYNC hold 8 – – ns
6 PCM_IN setup 8 – – ns
7 PCM_IN hold 8 – – ns
PCM_BCLK
PCM_SYNC
123
4
5
PCM_IN
67
M
PCM InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 55
Long Frame Sync, Burst Mode

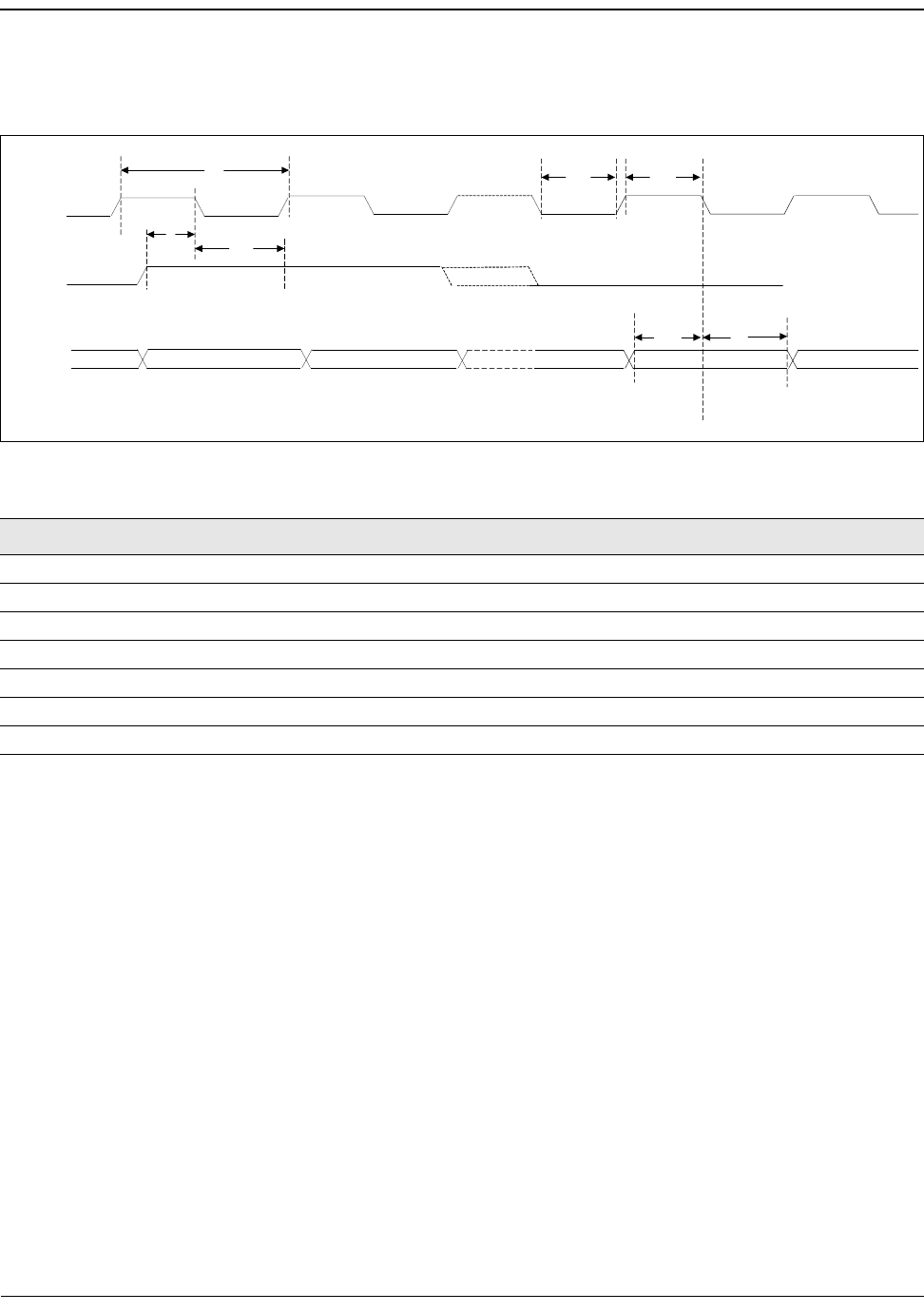

Figure 16: PCM Burst Mode Timing (Receive Only, Long Frame Sync)
Table 11: PCM Burst Mode (Receive Only, Long Frame Sync)
Reference Characteristics Minimum Typical Maximum Unit
1 PCM bit clock frequency – – 24 MHz
2 PCM bit clock LOW 20.8 – – ns
3 PCM bit clock HIGH 20.8 – – ns
4 PCM_SYNC setup 8 – – ns
5 PCM_SYNC hold 8 – – ns
6 PCM_IN setup 8 – – ns
7 PCM_IN hold 8 – – ns
PCM_BCLK
PCM_SYNC
123
4
5
PCM_IN
67
Bit 0 Bit 1
UART InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 56
UART Interface
The UART is a standard 4-wire interface (RX, TX, RTS, and CTS) with adjustable baud rates from 9600 bps to
4.0 Mbps. The interface features an automatic baud rate detection capability that returns a baud rate selection.
Alternatively, the baud rate may be selected through a vendor-specific UART HCI command.
UART has a 1040-byte receive FIFO and a 1040-byte transmit FIFO to support EDR. Access to the FIFOs is
conducted through the AHB interface through either DMA or the CPU. The UART supports the Bluetooth 4.1
UART HCI specification: H4, a custom Extended H4, and H5. The default baud rate is 115.2 Kbaud.
The UART supports the 3-wire H5 UART transport, as described in the Bluetooth specification (Three-wire
UART Transport Layer). Compared to H4, the H5 UART transport reduces the number of signal lines required
by eliminating the CTS and RTS signals.
The BCM43455 UART can perform XON/XOFF flow control and includes hardware support for the Serial Line
Input Protocol (SLIP). It can also perform wake-on activity. For example, activity on the RX or CTS inputs can
wake the chip from a sleep state.
Normally, the UART baud rate is set by a configuration record downloaded after device reset, or by automatic
baud rate detection, and the host does not need to adjust the baud rate. Support for changing the baud rate
during normal HCI UART operation is included through a vendor-specific command that allows the host to adjust
the contents of the baud rate registers. The BCM43455 UARTs operate correctly with the host UART as long as
the combined baud rate error of the two devices is within ±2%.
Table 12: Example of Common Baud Rates
Desired Rate Actual Rate Error (%)
4000000 4000000 0.00
3692000 3692308 0.01
3000000 3000000 0.00
2000000 2000000 0.00
1500000 1500000 0.00
1444444 1454544 0.70
921600 923077 0.16
460800 461538 0.16
230400 230796 0.17
115200 115385 0.16
57600 57692 0.16
38400 38400 0.00
28800 28846 0.16
19200 19200 0.00
14400 14423 0.16
9600 9600 0.00
I2S InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 57
Figure 17: UART Timing
I2S Interface
The BCM43455 supports an I2S digital audio port for Bluetooth audio. The I2S signals are:
•I
2S clock: I2S SCK
•I
2S Word Select: I2S WS
•I
2S Data Out: I2S SDO
•I
2S Data In: I2S SDI
I2S SCK and I2S WS become outputs in master mode and inputs in slave mode, while I2S SDO always stays
as an output. The channel word length is 16 bits and the data is justified so that the MSB of the left-channel data
is aligned with the MSB of the I2S bus, per the I2S specification. The MSB of each data word is transmitted one
bit clock cycle after the I2S WS transition, synchronous with the falling edge of bit clock. Left-channel data is
transmitted when I2S WS is low, and right-channel data is transmitted when I2S WS is high. Data bits sent by
the BCM43455 are synchronized with the falling edge of I2S_SCK and should be sampled by the receiver on
the rising edge of I2S_SSCK.
The clock rate in master mode is either of the following:
48 kHz x 32 bits per frame = 1.536 MHz
48 kHz x 50 bits per frame = 2.400 MHz
The master clock is generated from the input reference clock using a N/M clock divider. In the slave mode, any
clock rate is supported to a maximum of 3.072 MHz.
Table 13: UART Timing Specifications
Ref Characteristics Min. Typ. Max. Unit
1 Delay time, BT_UART_CTS_N low to BT_UART_TXD valid – – 1.5 Bit periods
2 Setup time, BT_UART_CTS_N high before midpoint of stop
bit
– – 0.5 Bit periods
3 Delay time, midpoint of stop bit to BT_UART_RTS_N high – – 0.5 Bit periods
BT_UART_CTS_N
BT_UART_RXD
BT_UART_RTS_N
1 2
Midpoint of STOP bit
BT_UART_TXD
3
Midpoint of STOP bit
I2S InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 58
I2S Timing
Note: Timing values specified in Ta b l e 14 are relative to high and low threshold levels.
Table 14: Timing for I2S Transmitters and Receivers
Transmitter Receiver
Notes
Lower LImit Upper Limit Lower Limit Upper Limit
Min. Max. Min. Max. Min. Max. Min. Max.
Clock Period T Ttr –––T
r–––a
a. The system clock period T must be greater than Ttr and Tr because both the transmitter and receiver have to be
able to handle the data transfer rate.
Master Mode: Clock generated by transmitter or receiver
HIGH tHC 0.35Ttr –––0.35T
tr –––b
b. At all data rates in master mode, the transmitter or receiver generates a clock signal with a fixed mark/space
ratio. For this reason, tHC and tLC are specified with respect to T.
LOWtLC 0.35Ttr –––0.35T
tr –––b
Slave Mode: Clock accepted by transmitter or receiver
HIGH tHC – 0.35Ttr –––0.35T
tr ––c
c. In slave mode, the transmitter and receiver need a clock signal with minimum HIGH and LOW periods so that
they can detect the signal. So long as the minimum periods are greater than 0.35Tr, any clock that meets the
requirements can be used.
LOW tLC – 0.35Ttr –––0.35T
tr ––c
Rise time tRC ––0.15T
tr –––––d
d. Because the delay (tdtr) and the maximum transmitter speed (defined by Ttr) are related, a fast transmitter driven
by a slow clock edge can result in tdtr not exceeding tRC which means thtr becomes zero or negative. Therefore,
the transmitter has to guarantee that thtr is greater than or equal to zero, so long as the clock rise-time tRC is not
more than tRCmax, where tRCmax is not less than 0.15Ttr.
Transmitter
Delay tdtr –––0.8T––––e
e. To allow data to be clocked out on a falling edge, the delay is specified with respect to the rising edge of the
clock signal and T, always giving the receiver sufficient setup time.
Hold time thtr 0–––––––d
Receiver
Setup time tsr –––––0.2T
r––f
f. The data setup and hold time must not be less than the specified receiver setup and hold time.
Hold time thr –––––0––f
I2S InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 59
Figure 18: I2S Transmitter Timing
Figure 19: I2S Receiver Timing
Note: The time periods specified in Figure 18 and Figure 19 are defined by the transmitter speed. The
receiver specifications must match transmitter performance.
SD and WS
SCK
VL= 0.8V
tLC >0.35T
tRC*
tHC >0.35T
T
VH= 2.0V
thtr >0
totr <0.8T
T = Clock period
Ttr = Minimum allowed clock period for transmitter
T = Ttr
* tRC is only relevant for transmitters in slave mode.
SD and WS
SCK VL= 0.8V
tLC > 0.35T tHC >0.35
T
VH= 2.0V
thr >0tsr >0.2T
T = Clock period
Tr= Minimum allowed clock period for transmitter
T > Tr
FM Receiver SubsystemBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 60
Section 8: FM Receiver Subsystem
FM Radio
The BCM43455 includes a completely integrated FM radio receiver with RDS/RBDS covering all FM bands from
65 MHz to 108 MHz. The receiver is controlled through commands on the HCI. FM received audio is available
in analog form or in digital form through I2S or PCM. The FM radio operates from the external clock reference.
Digital FM Audio Interfaces
The FM audio can be transmitted via the shared PCM and I2S pins, and the sampling rate is programmable.
The BCM43455 supports a three-wire PCM or I2S audio interface in either master or slave configuration. The
master or slave configuration is selected using vendor specific commands over the HCI interface. In addition,
multiple sampling rates are supported, derived from either the FM or Bluetooth clocks. In master mode, the clock
rate is either of the following:
• 48 kHz x 32 bits per frame = 1.536 MHz
• 48 kHz x 50 bits per frame = 2.400 MHz
In slave mode, any clock rate is supported up to a maximum of 3.072 MHz.
FM Over Bluetooth
The BCM43455 can output received FM audio onto Bluetooth using one of following three links: eSCO, WBS,
and A2DP. In all of the above modes, once the link has been set up, the host processor can enter sleep mode
while the BCM43455 continues to stream FM audio to the remote Bluetooth device, allowing the system current
consumption to be minimized.
eSCO
In this use case, the stereo FM audio is downsampled to 8 kHz and a mono or stereo stream is then sent through
the Bluetooth eSCO link to a remote Bluetooth device, typically a headset. Two Bluetooth voice connections
must be used to transport stereo.
Wideband Speech LinkBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 61
Wideband Speech Link
In this case, the stereo FM audio is downsampled to 16 kHz and a mono or stereo stream is then sent through
the Bluetooth wideband speech link to a remote Bluetooth device, typically a headset. Two Bluetooth voice
connections must be used to transport stereo.
A2DP
In this case, the stereo FM audio is encoded by the on-chip SBC encoder and transported as an A2DP link to a
remote Bluetooth device. Sampling rates of 48 kHz, 44.1 kHz, and 32 kHz joint stereo are supported. An A2DP
“lite” stack is implemented in the BCM43455 to support this use case, which eliminates the need to route the
SBC-encoded audio back to the host to create the A2DP packets.
Autotune and Search Algorithms
The BCM43455 supports a number of FM search and tune functions that allows the host to implement many
convenient user functions, which are accessed through the Broadcom FM stack.
• Tune to Play—Allows the FM receiver to be programmed to a specific frequency.
• Search for SNR > Threshold—Checks the power level of the available channel and the estimated SNR of
the channel to help achieve precise control of the expected sound quality for the selected FM channel.
Specifically, the host can adjust its SNR requirements to retrieve a signal with a specific sound quality, or
adjust this to return the weakest channels.
• Alternate Frequency Jump—Allows the FM receiver to automatically jump to an alternate FM channel that
carries the same information, but has a better SNR. For example, when traveling, a user may pass through
a region where a number of channels carry the same station. When the user passes from one area to the
next, the FM receiver can automatically switch to another channel with a stronger signal to spare the user
from having to manually change the channel to continue listening to the same station.
Audlo w (an)
hunt/rum
Audio FeaturesBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 62
Audio Features
A number of features are implemented in the BCM43455 to provide the best possible audio experience for the
user.
• Mono/Stereo Blend, Switch, or FME —The BCM43455 provides automatic control of the stereo or mono
settings based on the FM signal carrier-to-noise ratio (C/N). This feature is used to maintain the best
possible audio SNR based on the FM channel condition. Three modes of operation are supported:
– Blend: In this mode, fine control of stereo separation is used to achieve optimal audio quality over a
wide range of input C/N. The amount of separation is fully programmable. In Figure 20, the separation is
programmed to maintain a minimum 50 dB SNR across the blend range.
– Extended blend: In this mode, stereo separation is maximized across a wide range of input CNR.
Broadcom static suppression typically gives a static-free user experience to within 3 dB of ultimate
sensitivity.
– Switch: In this mode, the audio switches from full stereo to full mono at a predetermined level to
maintain optimal audio quality. The stereo-to-mono switch point and the mono-to-stereo switch points
are fully programmable to provide the desired amount of audio SNR. In Figure 21 on page 63, the
switch point is programmed to switch to mono to maintain a 40 dB SNR.
– FM enhancement (FME): In this mode, advanced digital signal processing in the FM receiver greatly
enhances the stereo separation of the received audio. Traditional FM receivers deliver a full stereo
signal at a high carrier-to-noise ratio (CNR) and gradually blend into mono as the CNR drops. The
Broadcom stereo extension allows full stereo separation to within 2 dB of the FM receiver sensitivity
threshold. The same signal processing delays the onset of pops at the FM sensitivity threshold and
reduces the ambient background noise by more than 20 dB in the low CNR region near sensitivity. The
result is a low-noise full stereo signal at input RF levels lower than previously achievable.
Figure 20: Audio SNR for Blend, Switch, and FME Modes
ch-mlsan-mb- (II)
E 5 E d S ‘d S a S
u!
nun clu W)
Audio Gain Ida)
soft Mute
m 15
Input C/N (dB)
Audio FeaturesBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 63
Figure 21: Stereo Separation for Blend, Switch, and FME Modes
• Soft Mute—Improves the user experience by dynamically muting the output audio proportionate to the FM
signal C/N. This prevents the user from being assaulted with a blast of static. The mute characteristic is
fully programmable to accommodate fine tuning of the output signal level. An example mute characteristic
is shown in Figure 22.
Figure 22: Example Soft Mute Characteristic
RDS/RBDSBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 64
• High Cut—A programmable high-cut filter is provided to reduce the amount of high-frequency noise
caused by static in the output audio signal. Like the soft mute circuit, it is fully programmable to allow for
any amount of high cut based on the FM signal C/N.
• Audio Pause Detect—The FM receiver monitors the magnitude of the audio signal and notifies the host
through an interrupt when the magnitude of the signal has fallen below the threshold set for a
programmable period. This feature can be used to provide alternate frequency jumps during periods of
silence to minimize disturbances to the listener. Filtering techniques are used within the audio pause
detection block to provide more robust presence-to-silence detection and silence-to-presence detection.
• Automatic Antenna Tuning—The BCM43455 has an on-chip automatic antenna tuning network. When
used with a single off-chip inductor, the on-chip circuitry automatically chooses an optimal on-chip matching
component to obtain the highest signal strength for the desired frequency. The high-Q nature of this
matching network simultaneously provides out-of-band blocking protection as well as a reduction of
radiated spurious emissions from the FM antenna. It is designed to accommodate a wide range of external
wire antennas.
RDS/RBDS
The BCM43455 integrates a RDS/RBDS modem and codec, the decoder includes programmable filtering and
buffering functions, and the encoder includes the option to encode messages to PS or RT frame format with
programmable scrolling in PS mode. The RDS/RBDS data can be read out in receive mode or delivered in
transmit mode through either the HCI interface.
In addition, the RDS/RBDS functionality supports the following:
Receive
• Block decoding, error correction and synchronization
• Flywheel synchronization feature, allowing the host to set parameters for acquisition, maintenance, and
loss of sync. (It is possible to set up the BCM43455 such that synchronization is achieved when a minimum
of two good blocks (error free) are decoded in sequence. The number of good blocks required for sync is
programmable.)
• Storage capability up to 126 blocks of RDS data
• Full or partial block B match detect and interrupt to host
• Audio pause detection with programmable parameters
• Program identification (PI) code detection and interrupt to host
• Automatic frequency jump
• Block E filtering
• Soft mute
• Signal dependent mono/stereo blend
• Programmable pre-emphasis
WLAN Global FunctionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 65
Section 9: WLAN Global Functions
WLAN CPU and Memory Subsystem
The BCM43455 WLAN section includes an integrated ARM Cortex-R4 32-bit processor with internal RAM and
ROM. The ARM Cortex-R4 is a low-power processor that features low gate count, low interrupt latency, and low-
cost debug capabilities. It is intended for deeply embedded applications that require fast interrupt response
features. Delivering more than 30% performance gain over ARM7TDMI, the ARM Cortex-R4 implements the
ARM v7-R architecture with support for the Thumb-2 instruction set.
At 0.19 µW/MHz, the Cortex-R4 is the most power efficient general-purpose microprocessor available,
outperforming 8- and 16-bit devices on MIPS/µW. It supports integrated sleep modes.
Using multiple technologies to reduce cost, the ARM Cortex-R4 offers improved memory utilization, reduced pin
overhead, and reduced silicon area. It supports independent buses for Code and Data access (ICode/DCode
and System buses), and extensive debug features including real time trace of program execution.
On-chip memory for the CPU includes 800 KB SRAM and 704 KB ROM.
One-Time Programmable Memory
Various hardware configuration parameters may be stored in an internal 6144-bit (768 bytes) One-Time
Programmable (OTP) memory, which is read by the system software after device reset. In addition, customer-
specific parameters, including the system vendor ID and the MAC address can be stored, depending on the
specific board design.
The initial state of all bits in an unprogrammed OTP device is 0. After any bit is programmed to a 1, it cannot be
reprogrammed to 0. The entire OTP array can be programmed in a single write cycle using a utility provided with
the Broadcom WLAN manufacturing test tools. Alternatively, multiple write cycles can be used to selectively
program specific bytes, but only bits which are still in the 0 state can be altered during each programming cycle.
Prior to OTP programming, all values should be verified using the appropriate editable nvram.txt file, which is
provided with the reference board design package.
GPIO Interface
The following number of general-purpose I/O (GPIO) pins are available on the WLAN section of the BCM43455
that can be used to connect to various external devices:
• WLBGA package – 15 GPIOs
Upon power-up and reset, these pins become tristated. Subsequently, they can be programmed to be either
input or output pins via the GPIO control register. In addition, the GPIO pins can be assigned to various other
functions.
External Coexistence InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 66
External Coexistence Interface
An external handshake interface is available to enable signaling between the device and an external co-located
wireless device, such as GPS or LTE to manage wireless medium sharing for optimum performance.
Figure 23 shows the WCI-2 LTE coexistence interface. See Table 13: “UART Timing Specifications,” on page 57
for UART baud rate.

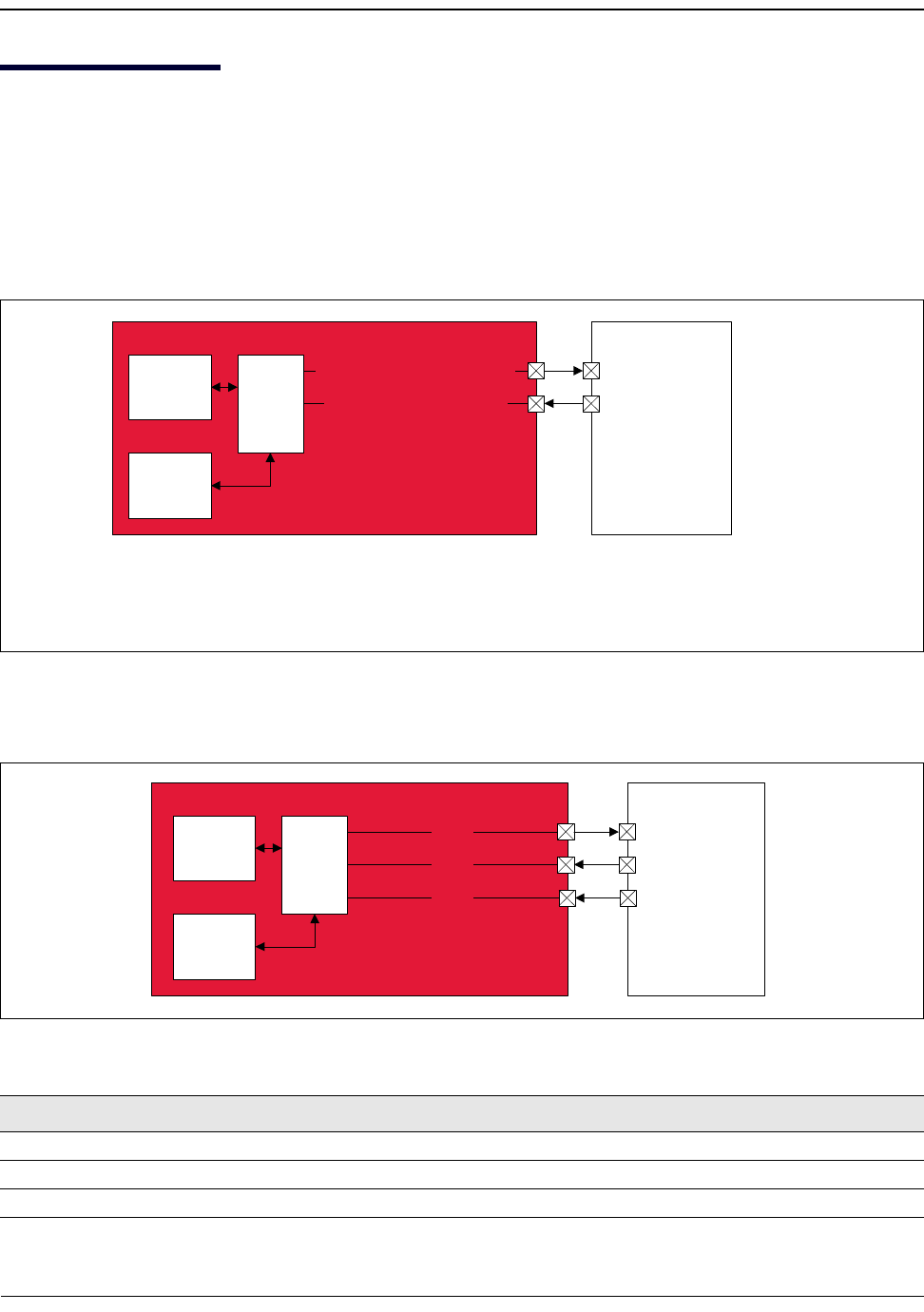

Figure 23: Broadcom GCI or BT-SIG WCI-2 LTE Coexistence Interface
Figure 24 and Table 15 on page 66 define an alternate 3-wire LTE coexistence interface.
Figure 24: 3-Wire LTE Coexistence Interface
Table 15: 3-Wire External Coexistence Interface
GPIO Name Coexistence Signal Type Comment
GPIO_2 ERCX_WL_PRIO Output Notify LTE of request to sleep
GPIO_3 ERCX_LTE_TX Input Notify WLAN RX of requirement to sleep
GPIO_4 ERCX_LTE_RX Input Notify WLAN TX to reduce TX power
LTE\IC
WLAN
BT
UART_IN
UART_OUT
SECI_OUT / BT_TXD / GPIO5
SECI_OUT/BT_TXD and SECI_IN/BT_RXD on the BCM4345X are multiplexed on GPIO5 and GPIO4, respectively.
The 2-wire LTE coexistence interface is intended for future compatibility with the BT SIG 2-wire interface that is being standardized for
Core 4.1.
ORing to generate ISM_RX_PRIORITY for ERCX_TXCONF or BT_RX_PRIORITY is achieved by setting the GPIO mask registers
appropriately.
NOTES:
SECI_IN / BT_RXD / GPIO4
GCI
BCM43455
LTE\IC
WLAN
BT
GPIO2
GPIO3
GPIO4
ERCX_WL_PRIO
ERCX_LTETX
ERCX_LTERX
ERCX
BCM43455
UART InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 67
UART Interface
A high-speed 4-wire CTS/RTS UART interface can be enabled by software as an alternate function on GPIO
pins. Provided primarily for debugging during development, this UART enables the BCM43455 to operate as
RS-232 data termination equipment (DTE) for exchanging and managing data with other serial devices. It is
compatible with the industry standard 16550 UART, and provides a FIFO size of 64 × 8 in each direction.
JTAG/SWD Interface
The BCM43455 supports IEEE 1149.1 JTAG boundary scan and reduced pin-count Serial Wire Debug (SWD)
mode to access the chip’s internal blocks and backplane for system bring-up and debugging. This interface
allows Broadcom engineers to assist customers with proprietary debug and characterization test tools. It is
highly recommended that customers provide access to at least the SWD pins on all PCB designs by using either
test points or a header.
The SWD interface uses two of the JTAG signals: TMS for bidirectional data (SWDIO) and TCK for the clock
(SWCLK). The debug access port (DAP) embedded in the ARM processor supports both SWD and JTAG
interfaces and can be switched from one to the other through a specific sequence on the TMS/SWD lines. In
addition to the ARM debug interface, an internal JTAG master on the DAP allows access to test access points
(TAPs) in the BCM43455 for hardware debugging.
WLAN Host InterfacesBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 68
Section 10: WLAN Host Interfaces
SDIO v3.0
All three package options of the BCM43455 WLAN section provide support for SDIO version 3.0, including the
new UHS-I modes:
• DS: Default speed (DS) up to 25 MHz, including 1- and 4-bit modes (3.3V signaling).
• HS: High speed up to 50 MHz (3.3V signaling).
• SDR12: SDR up to 25 MHz (1.8V signaling).
• SDR25: SDR up to 50 MHz (1.8V signaling).
• SDR50: SDR up to 100 MHz (1.8V signaling).
• SDR104: SDR up to 208 MHz (1.8V signaling)
• DDR50: DDR up to 50 MHz (1.8V signaling).
The SDIO interface also has the ability to map the interrupt signal on to a GPIO pin for applications requiring an
interrupt different from the one provided by the SDIO interface. The ability to force control of the gated clocks
from within the device is also provided. SDIO mode is enabled by strapping options. See Table 20 on page 91
for strapping options.
The following three functions are supported:
• Function 0 Standard SDIO function (Max BlockSize/ByteCount = 32B)
• Function 1 Backplane Function to access the internal system-on-chip (SoC) address space
(Max BlockSize/ByteCount = 64B)
• Function 2 WLAN Function for efficient WLAN packet transfer through DMA
(Max BlockSize/ByteCount = 512B).
Note: The BCM43455 is backward compatible with SDIO v2.0 host interfaces.
SDIO v3.0BCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 69
SDIO Pins

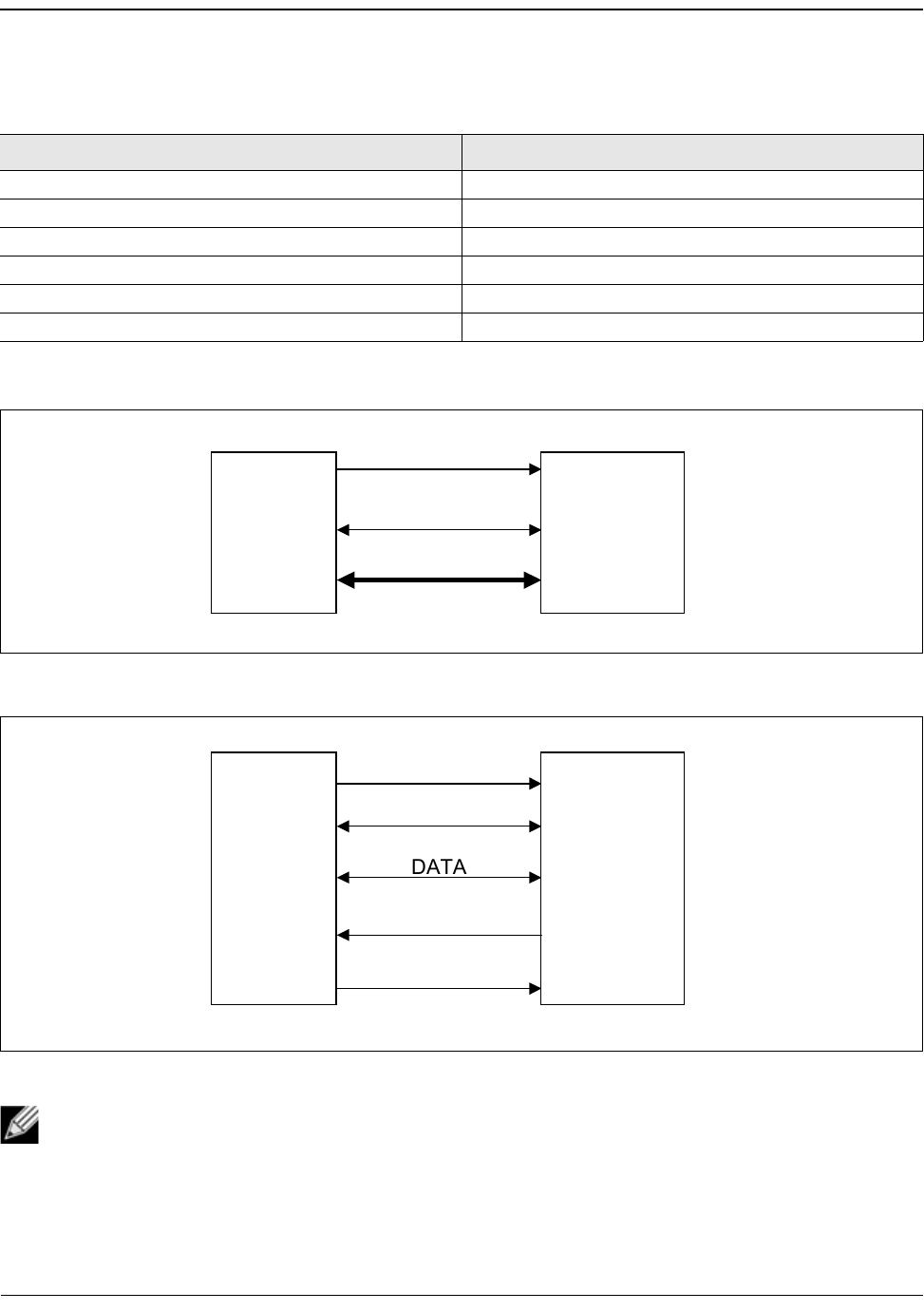

Figure 25: Signal Connections to SDIO Host (SD 4-Bit Mode)
Figure 26: Signal Connections to SDIO Host (SD 1-Bit Mode)
Table 16: SDIO Pin Description
SD 4-Bit Mode SD 1-Bit Mode
DATA0 Data line 0 DATA Data line
DATA1 Data line 1 or Interrupt IRQ Interrupt
DATA2 Data line 2 or Read Wait RW Read Wait
DATA3 Data line 3 N/C Not used
CLK Clock CLK Clock
CMD Command line CMD Command line
Note: Per Section 6 of the SDIO specification, pull-ups in the 10 k to 100 k range are required on
the four DATA lines and the CMD line. This requirement must be met during all operating states either
through the use of external pull-up resistors or through proper programming of the SDIO host’s internal
pull-ups.
SD Host
CLK
CMD
DAT[3:0]
BCM43455
SD Host
CLK
CMD
DATA
IRQ
RW
BCM43455
PCI Express InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 70
PCI Express Interface
The PCI Express (PCIe) core on the BCM43455 is a high-performance serial I/O interconnect that is protocol
compliant and electrically compatible with the PCI Express Base Specification v2.0. This core contains all the
necessary blocks, including logical and electrical functional subblocks to perform PCIe functionality and
maintain high-speed links, using existing PCI system configuration software implementations without
modification.
Organization of the PCIe core is in logical layers: Transaction Layer, Data Link Layer, and Physical Layer, as
shown in Figure 27. A configuration or link management block is provided for enumerating the PCIe
configuration space and supporting generation and reception of System Management Messages by
communicating with PCIe layers.
Each layer is partitioned into dedicated transmit and receive units that allow point-to-point communication
between the host and BCM43455 device. The transmit side processes outbound packets while the receive side
processes inbound packets. Packets are formed and generated in the Transaction and Data Link Layer for
transmission onto the high-speed links and onto the receiving device. A header is added at the beginning to
indicate the packet type and any other optional fields.

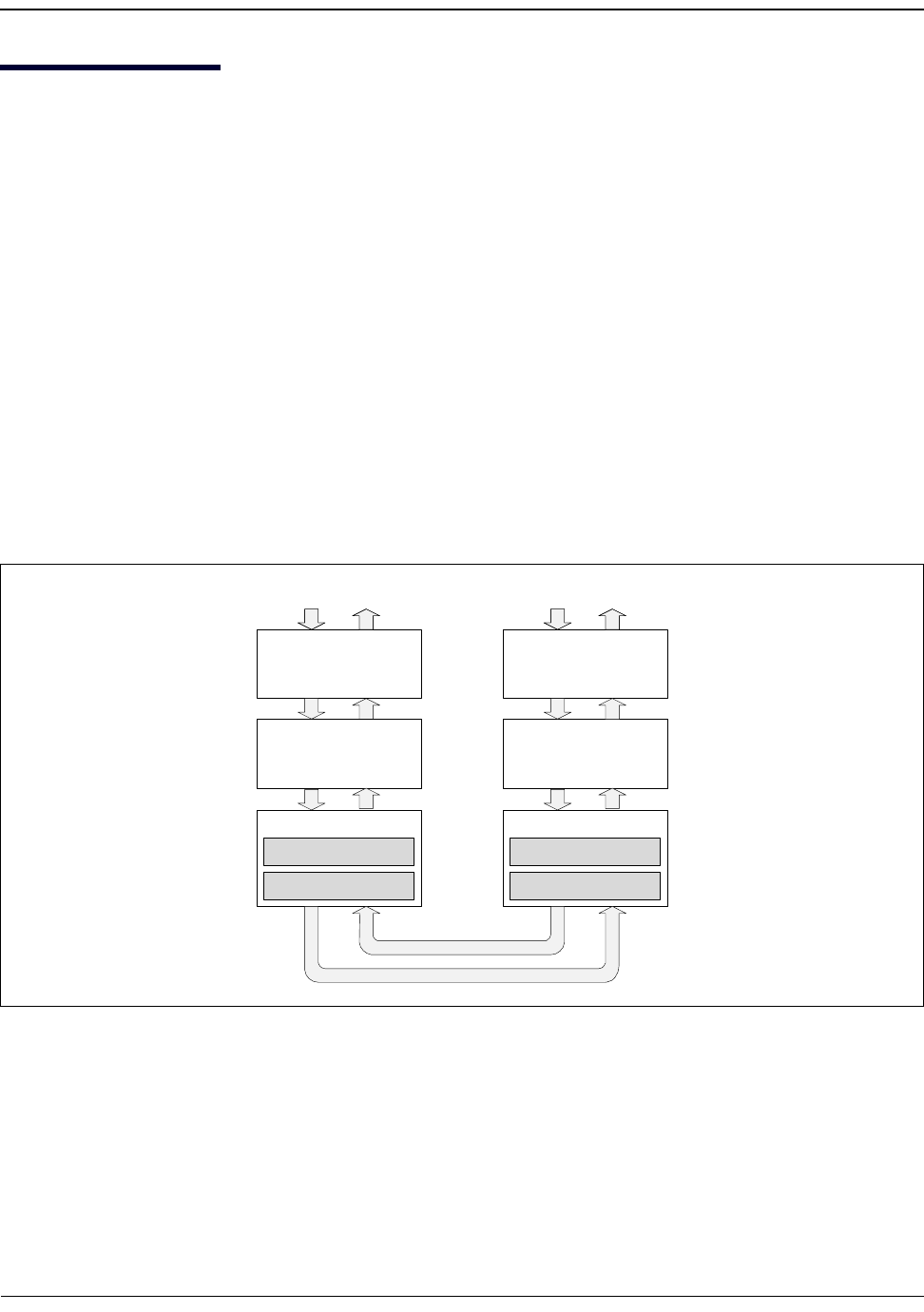

Figure 27: PCI Express Layer Model
Transaction
Layer
Data Link
Layer
Logical Subblock
Electrical Subblock
Physical Layer
Transaction
Layer
Data Link
Layer
Logical Subblock
Electrical Subblock
Physical Layer
HW/SW Interface HW/SW Interface
TX RX TX RX
PCI Express InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 71
Transaction Layer Interface
The PCIe core employs a packet-based protocol to transfer data between the host and BCM43455 device,
delivering new levels of performance and features. The upper layer of the PCIe is the Transaction Layer. The
Transaction layer is primarily responsible for assembly and disassembly of Transaction Layer Packets (TLPs).
TLP structure contains header, data payload, and End-to-End CRC (ECRC) fields, which are used to
communicate transactions, such as read and write requests and other events.
A pipelined full split-transaction protocol is implemented in this layer to maximize efficient communication
between devices with credit-based flow control of TLP, which eliminates wasted link bandwidth due to retries.
Data Link Layer
The data link layer serves as an intermediate stage between the transaction layer and the physical layer. Its
primary responsibility is to provide reliable, efficient mechanism for the exchange of TLPs between two directly
connected components on the link. Services provided by the data link layer include data exchange, initialization,
error detection and correction, and retry services.
Data Link Layer Packets (DLLPs) are generated and consumed by the data link layer. DLLPs are the
mechanism used to transfer link management information between data link layers of the two directly connected
components on the link, including TLP acknowledgment, power management, and flow control.
Physical Layer
The physical layer of the PCIe provides a handshake mechanism between the data link layer and the high-speed
signaling used for Link data interchange. This layer is divided into the logical and electrical functional subblocks.
Both subblocks have dedicated transmit and receive units that allow for point-to-point communication between
the host and BCM43455 device. The transmit section prepares outgoing information passed from the data link
layer for transmission, and the receiver section identifies and prepares received information before passing it to
the data link layer. This process involves link initialization, configuration, scrambler, and data conversion into a
specific format.
Logical Subblock
The logical sub block primary functions are to prepare outgoing data from the data link layer for transmission
and identify received data before passing it to the data link layer.
Scrambler/Descrambler
This PCIe PHY component generates pseudo-random sequence for scrambling of data bytes and the idle
sequence. On the transmit side, scrambling is applied to characters prior to the 8b/10b encoding. On the receive
side, descrambling is applied to characters after 8b/10b decoding. Scrambling may be disabled in polling and
recovery for testing and debugging purposes.
PCI Express InterfaceBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 72
8B/10B Encoder/Decoder
The PCIe core on the BCM43455 uses an 8b/10b encoder/decoder scheme to provide DC balancing,
synchronizing clock and data recovery, and error detection. The transmission code is specified in the ANSI
X3.230-1994, clause 11 and in IEEE 802.3z, 36.2.4.
Using this scheme, 8-bit data characters are treated as 3 bits and 5 bits mapped onto a 4-bit code group and a
6-bit code group, respectively. The control bit in conjunction with the data character is used to identify when to
encode one of the twelve Special Symbols included in the 8b/10b transmission code. These code groups are
concatenated to form a 10-bit symbol, which is then transmitted serially. Special Symbols are used for link
management, frame TLPs, and DLLPs, allowing these packets to be quickly identified and easily distinguished.
Elastic FIFO
An elastic FIFO is implemented in the receiver side to compensate for the differences between the transmit clock
domain and the receive clock domain, with worse case clock frequency specified at 600 ppm tolerance. As a
result, the transmit and receive clocks can shift one clock every 1666 clocks. In addition, the FIFO adaptively
adjusts the elastic level based on the relative frequency difference of the write and read clock. This technique
reduces the elastic FIFO size and the average receiver latency by half.
Electrical Subblock
The high-speed signals utilize the Common Mode Logic (CML) signaling interface with on-chip termination and
de-emphasis for best-in-class signal integrity. A de-emphasis technique is employed to reduce the effects of
Intersymbol Interference (ISI) due to the interconnect by optimizing voltage and timing margins for worst case
channel loss. This results in a maximally open “eye” at the detection point, thereby allowing the receiver to
receive data with acceptable Bit-Error Rate (BER).
To further minimize ISI, multiple bits of the same polarity that are output in succession are de-emphasized.
Subsequent same bits are reduced by a factor of 3.5 dB in power. This amount is specified by PCIe to allow for
maximum interoperability while minimizing the complexity of controlling the de-emphasis values. The high-
speed interface requires AC coupling on the transmit side to eliminate the DC common mode voltage from the
receiver. The range of AC capacitance allowed is 75 nF to 200 nF.
Configuration Space
The PCIe function in the BCM43455 implements the configuration space as defined in the PCI Express Base
Specification v2.0.
Wireless LAN MAC and PHYBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 73
Section 11: Wireless LAN MAC and PHY
IEEE 802.11ac MAC
The BCM43455 WLAN MAC is designed to support high-throughput operation with low-power consumption. It
does so without compromising the Bluetooth coexistence policies, thereby enabling optimal performance over
both networks. In addition, several power saving modes have been implemented that allow the MAC to consume
very little power while maintaining network-wide timing synchronization. The architecture diagram of the MAC
is shown in Figure 28.
The following sections provide an overview of the important modules in the MAC.
Figure 28: WLAN MAC Architecture
Embedded CPU Interface
Host Registers, DMA Engines
TX-FIFO
(32 KB)
WEP
TKIP, AES, WAPI
TXE
TX A-MPDU
RXE
PMQ
PSM
Shared Memory
(6 KB)
PSM
UCODE
Memory
EXT- IHR
IFS
Backoff, BTCX
TSF
NAV
IHR
BUS
SHM
BUS
MAC-PHY Interface
RX-FIFO
(10 KB)
RX A-MPDU
IEEE 802.11ac MACBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 74
The BCM43455 WLAN media access controller (MAC) supports features specified in the IEEE 802.11 base
standard, and amended by IEEE 802.11n. The key MAC features include:
• Enhanced MAC for supporting IEEE 802.11ac features
• Transmission and reception of aggregated MPDUs (A-MPDU) for high throughput (HT)
• Support for power management schemes, including WMM power-save, power-save multi-poll (PSMP) and
multiphase PSMP operation
• Support for immediate ACK and Block-ACK policies
• Interframe space timing support, including RIFS
• Support for RTS/CTS and CTS-to-self frame sequences for protecting frame exchanges
• Back-off counters in hardware for supporting multiple priorities as specified in the WMM specification
• Timing synchronization function (TSF), network allocation vector (NAV) maintenance, and target beacon
transmission time (TBTT) generation in hardware
• Hardware offload for AES-CCMP, legacy WPA TKIP, legacy WEP ciphers, WAPI, and support for key
management
• Support for coexistence with Bluetooth and other external radios
• Programmable independent basic service set (IBSS) or infrastructure basic service set functionality
• Statistics counters for MIB support
PSM
The programmable state machine (PSM) is a microcoded engine, which provides most of the low-level control
to the hardware, to implement the IEEE 802.11 specification. It is a microcontroller that is highly optimized for
flow control operations, which are predominant in implementations of communication protocols. The instruction
set and fundamental operations are simple and general, which allows algorithms to be optimized until very late
in the design process. It also allows for changes to the algorithms to track evolving IEEE 802.11 specifications.
The PSM fetches instructions from the microcode memory. It uses the shared memory to obtain operands for
instructions, as a data store, and to exchange data between both the host and the MAC data pipeline (via the
SHM bus). The PSM also uses a scratchpad memory (similar to a register bank) to store frequently accessed
and temporary variables.
The PSM exercises fine-grained control over the hardware engines, by programming internal hardware registers
(IHR). These IHRs are co-located with the hardware functions they control, and are accessed by the PSM via
the IHR bus.
The PSM fetches instructions from the microcode memory using an address determined by the program
counter, instruction literal, or a program stack. For ALU operations the operands are obtained from shared
memory, scratchpad, IHRs, or instruction literals, and the results are written into the shared memory, scratchpad,
or IHRs.
There are two basic branch instructions: conditional branches and ALU based branches. To better support the
many decision points in the IEEE 802.11 algorithms, branches can depend on either a readily available signals
from the hardware modules (branch condition signals are available to the PSM without polling the IHRs), or on
the results of ALU operations.
IEEE 802.11ac MACBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 75
WEP
The wired equivalent privacy (WEP) engine encapsulates all the hardware accelerators to perform the
encryption and decryption, and MIC computation and verification. The accelerators implement the following
cipher algorithms: legacy WEP, WPA TKIP, WPA2 AES-CCMP.
The PSM determines, based on the frame type and association information, the appropriate cipher algorithm to
be used. It supplies the keys to the hardware engines from an on-chip key table. The WEP interfaces with the
TXE to encrypt and compute the MIC on transmit frames, and the RXE to decrypt and verify the MIC on receive
frames.
TXE
The transmit engine (TXE) constitutes the transmit data path of the MAC. It coordinates the DMA engines to
store the transmit frames in the TXFIFO. It interfaces with WEP module to encrypt frames, and transfers the
frames across the MAC-PHY interface at the appropriate time determined by the channel access mechanisms.
The data received from the DMA engines are stored in transmit FIFOs. The MAC supports multiple logical
queues to support traffic streams that have different QoS priority requirements. The PSM uses the channel
access information from the IFS module to schedule a queue from which the next frame is transmitted. Once
the frame is scheduled, the TXE hardware transmits the frame based on a precise timing trigger received from
the IFS module.
The TXE module also contains the hardware that allows the rapid assembly of MPDUs into an A-MPDU for
transmission. The hardware module aggregates the encrypted MPDUs by adding appropriate headers and pad
delimiters as needed.
RXE
The receive engine (RXE) constitutes the receive data path of the MAC. It interfaces with the DMA engine to
drain the received frames from the RXFIFO. It transfers bytes across the MAC-PHY interface and interfaces with
the WEP module to decrypt frames. The decrypted data is stored in the RXFIFO.
The RXE module contains programmable filters that are programmed by the PSM to accept or filter frames
based on several criteria such as receiver address, BSSID, and certain frame types.
The RXE module also contains the hardware required to detect A-MPDUs, parse the headers of the containers,
and disaggregate them into component MPDUS.
IFS
The IFS module contains the timers required to determine interframe space timing including RIFS timing. It also
contains multiple backoff engines required to support prioritized access to the medium as specified by WMM.
The interframe spacing timers are triggered by the cessation of channel activity on the medium, as indicated by
the PHY. These timers provide precise timing to the TXE to begin frame transmission. The TXE uses this
information to send response frames or perform transmit frame-bursting (RIFS or SIFS separated, as within a
TXOP).
IEEE 802.11ac PHYBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 76
The backoff engines (for each access category) monitor channel activity, in each slot duration, to determine
whether to continue or pause the backoff counters. When the backoff counters reach 0, the TXE gets notified,
so that it may commence frame transmission. In the event of multiple backoff counters decrementing to 0 at the
same time, the hardware resolves the conflict based on policies provided by the PSM.
The IFS module also incorporates hardware that allows the MAC to enter a low-power state when operating
under the IEEE power save mode. In this mode, the MAC is in a suspended state with its clock turned off. A
sleep timer, whose count value is initialized by the PSM, runs on a slow clock and determines the duration over
which the MAC remains in this suspended state. Once the timer expires the MAC is restored to its functional
state. The PSM updates the TSF timer based on the sleep duration ensuring that the TSF is synchronized to
the network.
The IFS module also contains the PTA hardware that assists the PSM in Bluetooth coexistence functions.
TSF
The timing synchronization function (TSF) module maintains the TSF timer of the MAC. It also maintains the
target beacon transmission time (TBTT). The TSF timer hardware, under the control of the PSM, is capable of
adopting timestamps received from beacon and probe response frames in order to maintain synchronization
with the network.
The TSF module also generates trigger signals for events that are specified as offsets from the TSF timer, such
as uplink and downlink transmission times used in PSMP.
NAV
The network allocation vector (NAV) timer module is responsible for maintaining the NAV information conveyed
through the duration field of MAC frames. This ensures that the MAC complies with the protection mechanisms
specified in the standard.
The hardware, under the control of the PSM, maintains the NAV timer and updates the timer appropriately based
on received frames. This timing information is provided to the IFS module, which uses it as a virtual carrier-
sense indication.
MAC-PHY Interface
The MAC-PHY interface consists of a data path interface to exchange RX/TX data from/to the PHY. In addition,
there is an programming interface, which can be controlled either by the host or the PSM to configure and control
the PHY.
IEEE 802.11ac PHY
The BCM43455 WLAN Digital PHY is designed to comply with IEEE 802.11ac and IEEE 802.11a/b/g/n single-
stream specifications to provide wireless LAN connectivity supporting data rates from 1 Mbps to 433.3 Mbps for
low-power, high-performance handheld applications.
IEEE 802.11ac PHYBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 77
The PHY has been designed to work in the presence of interference, radio nonlinearity, and various other
impairments. It incorporates optimized implementations of the filters, FFT and Viterbi decoder algorithms.
Efficient algorithms have been designed to achieve maximum throughput and reliability, including algorithms for
carrier sense/rejection, frequency/phase/timing acquisition and tracking, channel estimation and tracking. The
PHY receiver also contains a robust IEEE 802.11b demodulator. The PHY carrier sense has been tuned to
provide high throughput for IEEE 802.11g/11b hybrid networks with Bluetooth coexistence. It has also been
designed for shared single antenna systems between WL and BT to support simultaneous RX-RX.
The key PHY features include:
• Programmable data rates from MCS0–MCS9 in 20, 40, and 80 MHz channels, as specified in
IEEE 802.11ac.
• Supports Optional Short GI and Green Field modes in TX and RX.
• TX and RX LDPC for improved range and power efficiency.
• All scrambling, encoding, forward error correction, and modulation in the transmit direction and inverse
operations in the receive direction.
• Supports IEEE 802.11h/k for worldwide operation.
• Advanced algorithms for low power, enhanced sensitivity, range, and reliability.
• Algorithms to improve performance in presence of Bluetooth.
• Automatic gain control scheme for blocking and non blocking application scenario for cellular applications.
• Closed loop transmit power control.
• Digital RF chip calibration algorithms to handle CMOS RF chip non-idealities.
• On-the-fly channel frequency and transmit power selection.
• Supports per-packet RX antenna diversity.
• Available per-packet channel quality and signal strength measurements.
• Designed to meet FCC and other worldwide regulatory requirements.
Figure 29: WLAN PHY Block Diagram
Filters
and
Radio
Comp
Frequency
and Timing
Synch
Carrier Sense,
AGC, and Rx
FSM
Radio
Control
Block
Common
Logic
Block
Filters
and
Radio
Comp
AFE
and
Radio
MAC
Interface
Buffers
OFDM
Demodulate Viterbi Decoder
TX
FSM
PA Comp
Modulation
and Coding
Frame and
Scramble
FFT/IFFT
CCK/DSSS
Demodulate
Descramble
and Deframe
COEX
Modulate/
Spread
WLAN Radio SubsystemBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 78
Section 12: WLAN Radio Subsystem
The BCM43455 includes an integrated dual-band WLAN RF transceiver that has been optimized for use in
2.4 GHz and 5 GHz Wireless LAN systems. It has been designed to provide low-power, low-cost, and robust
communications for applications operating in the globally available 2.4 GHz unlicensed ISM or 5 GHz U-NII
bands. The transmit and receive sections include all on-chip filtering, mixing, and gain control functions.
Ten RF control signals are available to drive external RF switches and support optional external power amplifiers
and low-noise amplifiers for each band. See the reference board schematics for further details.
A block diagram of the radio subsystem is shown in Figure 30 on page 79. Note that integrated on-chip baluns
(not shown) convert the fully differential transmit and receive paths to single-ended signal pins.
Receiver Path
The BCM43455 has a wide dynamic range, direct conversion receiver that employs high order on-chip channel
filtering to ensure reliable operation in the noisy 2.4 GHz ISM band or the entire 5 GHz U-NII band. An on-chip
low-noise amplifier (LNA) in the 2.4 GHz path is shared between the Bluetooth and WLAN receivers, while the
5 GHz receive path has a dedicated on-chip LNA. Control signals are available that can support the use of
optional LNAs for each band, which can increase the receive sensitivity by several dB.
Transmit Path
Baseband data is modulated and upconverted to the 2.4 GHz ISM or 5-GHz U-NII bands, respectively. Linear
on-chip power amplifiers are included, which are capable of delivering high output powers while
meeting IEEE 802.11ac and IEEE 802.11a/b/g/n specifications without the need for external PAs. When using
the internal PAs, closed-loop output power control is completely integrated. As an option, external PAs can be
used for even higher output power, in which case the closed-loop output power control is provided by means of
a-band and g-band TSSI inputs from external power detectors.
Calibration
The BCM43455 features dynamic and automatic on-chip calibration to continually compensate for temperature
and process variations across components. These calibration routines are performed periodically in the course
of normal radio operation. Examples of some of the automatic calibration algorithms are baseband filter
calibration for optimum transmit and receive performance, and LOFT calibration for carrier leakage reduction.
In addition, I/Q Calibration, R Calibration, and VCO Calibration are performed on-chip. No per-board calibration
is required in manufacturing test, which helps to minimize the test time and cost in large volume production.
F F
®®x®® ®®m®®
CalibrationBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 79
Figure 30: Radio Functional Block Diagram
Gm
BT
LOGEN
WL
LOGEN
BT PLL
WL PLL
WLAN BB
BT BB
CLB
Voltage
Regulators
BT
LPO/Ext LPO/RCAL
WL ADC
BT ADC
BT DAC
WL PA WL PGA WL TX G-Mixer
WL DAC
WL A-PA WL A-PAD WL A-PGA
WL TX A-Mixer
WL TXLPF
WL RXLPF
WL RX A-Mixer
WL RX G-Mixer
WL A-LNA11 WL A-LNA12
SLNA WL G-LNA12
BT LNA Load
BT LNA GM
BT PA
BT RX Mixer
BT TX Mixer
BT RXLPF
BT TXLPF
Shared XO
WL TXLPF
WL DAC
WL ADC
WL RXLPF
WL ATX
WL GRX
WL GTX
WL ARX
BT TX
BT RX
BT ADC
BT RXLPF
BT DAC
Ball Map and Pin DescriptionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 80
Section 13: Ball Map and Pin Descriptions
Ball Map
Figure 31: 140-Ball WLBGA Map—Bottom View (Balls Facing Up)
1110987654321
APCIE_TDN PCIE_RDN PCIE_RDP SDIO_CLK
SDIO_DAT
A_3
LDO_VDDB
AT5V
VOUT_3P3
LDO_VDD1
P5
SR_VDDBA
T5V
SR_PVSS A
B
PCIE_REF
CLKP
PCIE_TDP
PCIE_RXT
X_AVDD1P
2
PCIE_CLK
REQ_L
SDIO_DAT
A_1
SDIO_DAT
A_2
VOUT_BTL
DO2P5
VOUT_LNL
DO
VOUT_CLD
O
VOUT_PCI
ELDO
SR_VLX B
C
PCIE_REF
CLKN
PCIE_PLL_
AVDD1P2
PCIE_VSS VDDC
SDIO_DAT
A_0
SDIO_CMD VSSC
WL_REG_
ON
BT_REG_O
N
PMU_AVSS GPIO_0 C
DGPIO_13 GPIO_14 NC1 PERST_L PCI_PME_
LVDDIO_SD VDDIO GPIO_2 GPIO_1 GPIO_3 GPIO_6 D
ENC2
AVSS_BBP
LL
AVDD_BBP
LL
NC3 VDDIO_RF
RF_SWCT
RL_8
JTAG_SEL GPIO_4 GPIO_5 VDDC GPIO_7 E
F
RF_SW_CT
RL_0
RF_SW_CT
RL_1
VSSC VDDC
RF_SWCT
RL_4
RF_SWCT
RL_7
VSSC GPIO_9 GPIO_10 BT_VDDC LPO_IN F
G
WRF_XTAL
_XON
WRF_XTAL
_GND1P2
RF_SW_CT
RL_2
RF_SW_CT
RL_3
RF_SWCT
RL_5
RF_SWCT
RL_6
GPIO_8 BT_VDDO
BT_PCM_S
YNC
VSSC
BT_PCM_I
N
G
H
WRF_XTAL
_XOP
WRF_XTAL
_VDD1P35
WRF_XTAL
_VDD1P2
WRF_SYN
TH_VDD3P
3
BT_GPIO_
3
BT_GPIO_
4NC
BT_PCM_O
UT
BT_I2S_DO
BT_PCM_C
LK
H
J
WRF_PMU
_VDD1P35
WRF_SYN
TH_VDD1P
2
WRF_SYN
TH_GND
WRF_VCO
_GND
BT_GPIO_
2
BT_UART_
CTS_N
VDDC BT_VDDC BT_I2S_W
SBT_I2S_DI
BT_I2S_CL
K
J
K
WRF_RX5
G_GND
WRF_AFE_
VDD1P35
WRF_GEN
ERAL_GND
WRF_EXT_
TSSIA
GPIO_15 GPIO_16 VSSC BT_GPIO_
5
BT_UART_
RTS_N
BT_UART_
TXD
BT_UART_
RXD
K
L
WRF_RFIN
_5G
WRF_GEN
ERAL2_GN
D
WRF_AFE_
GND
WRF_GPAI
O_OUT
BT_LNAVD
D1P2
BT_IFVSS
BT_PLLVS
S
BT_CLK_R
EQ
BT_HOST_
WAKE
VSSC BT_VDDC L
M
WRF_PAO
UT_5G
WRF_PA_
GND3P3
WRF_TXMI
X_VDD
WRF_RX2
G_GND
BT_LNAVS
S
BT_PAVSS
BT_PLLVD
D1P2
FM_PLLVS
S
FM_RFVSS
FM_PLLVD
D1P2
BT_DEV_W
AKE
M
N
WRF_PA_V
DD3P3
WRF_PAO
UT_2G
WRF_RFIN
_2G
BT_RF
BT_PAVDD
2P5
BT_IFVDD1
P2
FM_RFIN
FM_RFVDD
1P2
FM_AOUT2 FM_AOUT1 N
1110987654321
Pin List by Pin NumberBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 81
Pin List by Pin Number
Ta b l e 1 7 lists BCM43455 pins by pin number. For a list of BCM43455 pins by pin name, see Table 18 on
page 83.
Table 17: WLBGA Pin List by Pin Number
Ball Name
A1 SR_PVSS
A2 SR_VDDBAT5V
A3 LDO_VDD1P5
A4 VOUT_3P3
A5 LDO_VDDBAT5V
A6 SDIO_DATA_3
A7 SDIO_CLK
A8 PCIE_RDP
A9 PCIE_RDN
A10 PCIE_TDN
A11 –
B1 SR_VLX
B2 VOUT_PCIELDO
B3 VOUT_CLDO
B4 VOUT_LNLDO
B5 VOUT_BTLDO2P5
B6 SDIO_DATA_2
B7 SDIO_DATA_1
B8 PCIE_CLKREQ_L
B9 PCIE_RXTX_AVDD1P2
B10 PCIE_TDP
B11 PCIE_REFCLKP
C1 GPIO_0
C2 PMU_AVSS
C3 BT_REG_ON
C4 WL_REG_ON
C5 VSSC
C6 SDIO_CMD
C7 SDIO_DATA_0
C8 VDDC
C9 PCIE_VSS
C10 PCIE_PLL_AVDD1P2
C11 PCIE_REFCLKN
D1 GPIO_6
D2 GPIO_3
D3 GPIO_1
D4 GPIO_2
D5 VDDIO
D6 VDDIO_SD
D7 PCI_PME_L
D8 PERST_L
D9 NC1
D10 GPIO_14
D11 GPIO_13
E1 GPIO_7
E2 VDDC
E3 GPIO_5
E4 GPIO_4
E5 JTAG_SEL
E6 RF_SW_CTRL_8
E7 VDDIO_RF
E8 NC3
E9 AVDD_BBPLL
E10 AVSS_BBPLL
E11 NC2
F1 LPO_IN
F2 BT_VDDC
F3 GPIO_10
F4 GPIO_9
F5 VSSC
F6 RF_SW_CTRL_7
F7 RF_SW_CTRL_4
F8 VDDC
F9 VSSC
F10 RF_SW_CTRL_1
F11 RF_SW_CTRL_0
Table 17: WLBGA Pin List by Pin Number (Cont.)
Ball Name
Pin List by Pin NumberBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 82
G1 BT_PCM_IN
G2 VSSC
G3 BT_PCM_SYNC
G4 BT_VDDO
G5 GPIO_8
G6 RF_SW_CTRL_6
G7 RF_SW_CTRL_5
G8 RF_SW_CTRL_3
G9 RF_SW_CTRL_2
G10 WRF_XTAL_GND1P2
G11 WRF_XTAL_XON
H1 BT_PCM_CLK
H2 BT_I2S_DO
H3 BT_PCM_OUT
H4 NC
H5 BT_GPIO_4
H6 BT_GPIO_3
H7 –
H8 WRF_SYNTH_VDD3P3
H9 WRF_XTAL_VDD1P2
H10 WRF_XTAL_VDD1P35
H11 WRF_XTAL_XOP
J1 BT_I2S_CLK
J2 BT_I2S_DI
J3 BT_I2S_WS
J4 BT_VDDC
J5 VDDC
J6 BT_UART_CTS_N
J7 BT_GPIO_2
J8 WRF_VCO_GND
J9 WRF_SYNTH_GND
J10 WRF_SYNTH_VDD1P2
J11 WRF_PMU_VDD1P35
K1 BT_UART_RXD
K2 BT_UART_TXD
K3 BT_UART_RTS_N
K4 BT_GPIO_5
K5 VSSC
K6 GPIO_16
Table 17: WLBGA Pin List by Pin Number (Cont.)
Ball Name
K7 GPIO_15
K8 WRF_EXT_TSSIA
K9 WRF_GENERAL_GND
K10 WRF_AFE_VDD1P35
K11 WRF_RX5G_GND
L1 BT_VDDC
L2 VSSC
L3 BT_HOST_WAKE
L4 BT_CLK_REQ
L5 BT_PLLVSS
L6 BT_IFVSS
L7 BT_LNAVDD1P2
L8 WRF_GPAIO_OUT
L9 WRF_AFE_GND
L10 WRF_GENERAL2_GND
L11 WRF_RFIN_5G
M1 BT_DEV_WAKE
M2 FM_PLLVDD1P2
M3 FM_RFVSS
M4 FM_PLLVSS
M5 BT_PLLVDD1P2
M6 BT_PAVSS
M7 BT_LNAVSS
M8 WRF_RX2G_GND
M9 WRF_TXMIX_VDD
M10 WRF_PA_GND3P3
M11 WRF_PAOUT_5G
N1 FM_AOUT1
N2 FM_AOUT2
N3 FM_RFVDD1P2
N4 FM_RFIN
N5 BT_IFVDD1P2
N6 BT_PAVDD2P5
N7 BT_RF
N8 WRF_RFIN_2G
N9 WRF_PAOUT_2G
N10 –
N11 WRF_PA_VDD3P3
Table 17: WLBGA Pin List by Pin Number (Cont.)
Ball Name
Pin List by Pin NameBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 83
Pin List by Pin Name
Ta b l e 1 8 lists BCM43455 pins by pin name. For a list of BCM43455 pins by pin number, see Table 17 on
page 81.
Table 18: WLBGA Pin List by Pin Name
Name Ball
AVDD_BBPLL E9
AVSS_BBPLL E10
BT_CLK_REQ L4
BT_DEV_WAKE M1
BT_GPIO_2 J7
BT_GPIO_3 H6
BT_GPIO_4 H5
BT_GPIO_5 K4
BT_HOST_WAKE L3
BT_I2S_CLK J1
BT_I2S_DI J2
BT_I2S_DO H2
BT_I2S_WS J3
BT_IFVDD1P2 N5
BT_IFVSS L6
BT_LNAVDD1P2 L7
BT_LNAVSS M7
BT_PAVDD2P5 N6
BT_PAVSS M6
BT_PCM_CLK H1
BT_PCM_IN G1
BT_PCM_OUT H3
BT_PCM_SYNC G3
BT_PLLVDD1P2 M5
BT_PLLVSS L5
BT_REG_ON C3
BT_RF N7
BT_UART_CTS_N J6
BT_UART_RTS_N K3
BT_UART_RXD K1
BT_UART_TXD K2
BT_VDDC F2
BT_VDDC J4
BT_VDDC L1
BT_VDDO G4
FM_AOUT1 N1
FM_AOUT2 N2
FM_PLLVDD1P2 M2
FM_PLLVSS M4
FM_RFIN N4
FM_RFVDD1P2 N3
FM_RFVSS M3
GPIO_0 C1
GPIO_1 D3
GPIO_2 D4
GPIO_3 D2
GPIO_4 E4
GPIO_5 E3
GPIO_6 D1
GPIO_7 E1
GPIO_8 G5
GPIO_9 F4
GPIO_10 F3
GPIO_13 D11
GPIO_14 D10
GPIO_15 K7
GPIO_16 K6
JTAG_SEL E5
LDO_VDD1P5 A3
LDO_VDDBAT5V A5
LPO_IN F1
NC H4
NC1 D9
NC2 E11
NC3 E8
PCIE_CLKREQ_L B8
Table 18: WLBGA Pin List by Pin Name (Cont.)
Name Ball
Pin List by Pin NameBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 84
PCIE_PLL_AVDD1P2 C10
PCIE_RDN A9
PCIE_RDP A8
PCIE_REFCLKN C11
PCIE_REFCLKP B11
PCIE_RXTX_AVDD1P2 B9
PCIE_TDN A10
PCIE_TDP B10
PCIE_VSS C9
PCI_PME_L D7
PERST_L D8
PMU_AVSS C2
RF_SW_CTRL_0 F11
RF_SW_CTRL_1 F10
RF_SW_CTRL_2 G9
RF_SW_CTRL_3 G8
RF_SW_CTRL_4 F7
RF_SW_CTRL_5 G7
RF_SW_CTRL_6 G6
RF_SW_CTRL_7 F6
RF_SW_CTRL_8 E6
SDIO_CLK A7
SDIO_CMD C6
SDIO_DATA_0 C7
SDIO_DATA_1 B7
SDIO_DATA_2 B6
SDIO_DATA_3 A6
SR_PVSS A1
SR_VDDBAT5V A2
SR_VLX B1
VDDC C8
VDDC E2
VDDC F8
VDDC J5
VDDIO D5
VDDIO_RF E7
VDDIO_SD D6
VOUT_3P3 A4
VOUT_BTLDO2P5 B5
Table 18: WLBGA Pin List by Pin Name (Cont.)
Name Ball
VOUT_CLDO B3
VOUT_LNLDO B4
VOUT_PCIELDO B2
VSSC C5
VSSC F5
VSSC F9
VSSC G2
VSSC K5
VSSC L2
WL_REG_ON C4
WRF_AFE_GND L9
WRF_AFE_VDD1P35 K10
WRF_EXT_TSSIA K8
WRF_GENERAL2_GND L10
WRF_GENERAL_GND K9
WRF_GPAIO_OUT L8
WRF_PAOUT_2G N9
WRF_PAOUT_5G M11
WRF_PA_GND3P3 M10
WRF_PA_VDD3P3 N11
WRF_PMU_VDD1P35 J11
WRF_RFIN_2G N8
WRF_RFIN_5G L11
WRF_RX2G_GND M8
WRF_RX5G_GND K11
WRF_SYNTH_GND J9
WRF_SYNTH_VDD1P2 J10
WRF_SYNTH_VDD3P3 H8
WRF_TXMIX_VDD M9
WRF_VCO_GND J8
WRF_XTAL_GND1P2 G10
WRF_XTAL_VDD1P2 H9
WRF_XTAL_VDD1P35 H10
WRF_XTAL_XON G11
WRF_XTAL_XOP H11
–A11
–H7
–N10
Table 18: WLBGA Pin List by Pin Name (Cont.)
Name Ball
Pin DescriptionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 85
Pin Descriptions
The signal name, type, and description of each pin in the BCM43455 is listed in Table 19. The symbols shown
under Type indicate pin directions (I/O = bidirectional, I = input, O = output) and the internal pull-up/pull-down
characteristics (PU = weak internal pull-up resistor and PD = weak internal pull-down resistor), if any.
Table 19: Signal Descriptions
Signal Name WLBGA Ball Type Description
WLAN and Bluetooth Receive RF Signal Interface
WRF_RFIN_2G N8 I 2.4 GHz Bluetooth and WLAN receiver
shared input.
WRF_RFIN_5G L11 I 5 GHz WLAN receiver input.
WRF_PAOUT_2G N9 O 2.4 GHz WLAN PA output.
WRF_PAOUT_5G M11 O 5 GHz WLAN PA output.
WRF_EXT_TSSIA K8 I 5 GHz TSSI input from an optional
external power amplifier/power detector.
WRF_GPAIO_OUT L8 I/O GPIO or 2.4 GHz TSSI input from an
optional external power amplifier/power
detector.
RF Switch Control Lines
RF_SW_CTRL_0 F11 O Programmable RF switch control lines.
The control lines are programmable via
the driver and NVRAM file.
RF_SW_CTRL_1 F10 O
RF_SW_CTRL_2 G9 O
RF_SW_CTRL_3 G8 O
RF_SW_CTRL_4 F7 O
RF_SW_CTRL_5 G7 O
RF_SW_CTRL_6 G6 O
RF_SW_CTRL_7 F6 O
RF_SW_CTRL_8 E6 O
WLAN PCI Express Interface
PCIE_CLKREQ_L B8 OD PCIe clock request signal which
indicates when the REFCLK to the PCIe
interface can be gated.
1 = the clock can be gated.
0 = the clock is required.
PERST_L D8 I (PU) PCIe System Reset. This input is the
PCIe reset as defined in the PCIe Base
Specification Version 1.1.
PCIE_RDN A9 I Receiver differential pair (×1 lane).
PCIE_RDP A8 I
PCIE_REFCLKN C11 I PCIe differential clock inputs (negative
and positive), 100 MHz differential.
PCIE_REFCLKP B11 I
PCIE_TDN A10 O Transmitter differential pair (×1 lane).
PCIE_TDP B10 O
Pin DescriptionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 86
PCI_PME_L D7 OD PCI power management event output.
Used to request a change in the device
or system power state. The assertion
and deassertion of this signal is
asynchronous to the PCIe reference
clock. This signal has an open-drain
output structure, as per the PCI Bus
Local Bus Specification, Revision 2.3.
WLAN SDIO Bus Interface
Note: These signals can also have alternate functionality depending on package and host interface mode.
SDIO_CLK A7 I SDIO clock input.
SDIO_CMD C6 I/O SDIO command line.
SDIO_DATA_0 C7 I/O SDIO data line 0.
SDIO_DATA_1 B7 I/O SDIO data line 1.
SDIO_DATA_2 B6 I/O SDIO data line 2.
SDIO_DATA_3 A6 I/O SDIO data line 3.
WLAN GPIO Interface
Note: The GPIO signals can be multiplexed via software and the JTAG_SEL pin to behave as various specific
functions.
GPIO_0 C1 I/O
Programmable GPIO pins:
GPIO_2 is TCK/SWCLK if
JTAG_SEL = 1
GPIO_3 is TMS/SWDIO if
JTAG_SEL = 1
GPIO_4 is TDIO if JTAG_SEL = 1
GPIO_5 is TDO if JTAG_SEL = 1
GPIO_6 is TRST_L if JTAG_SEL = 1
GPIO_1 D3 I/O
GPIO_2 D4 I/O
GPIO_3 D2 I/O
GPIO_4 E4 I/O
GPIO_5 E3 I/O
GPIO_6 D1 I/O
GPIO_7 E1 I/O
GPIO_8 G5 I/O
GPIO_9 F4 I/O
GPIO_10 F3 I/O
GPIO_13 D11 I/O
GPIO_14 D10 I/O
GPIO_15 K7 I/O
GPIO_16 K6 I/O
Table 19: Signal Descriptions (Cont.)
Signal Name WLBGA Ball Type Description
Pin DescriptionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 87
JTAG/SWD Interface
JTAG_SEL E5 I/O JTAG select. This pin must be
connected to ground if the
JTAG/SWD interface is not used. It must
be high to select
SWD OR JTAG. When JTAG_SEL = 1:
• GPIO_2 is TCK/SWCLK
• GPIO_3 is TMS/SWDIO
• GPIO_4 is TDIO
• GPIO_5 is TDO
• GPIO_6 is TRST_L
Clocks
WRF_XTAL_XOP H11 I XTAL oscillator input.
WRF_XTAL_XON G11 O XTAL oscillator output.
LPO_IN F1 I External sleep clock input (32.768 kHz).
BT_CLK_REQ L4 O Reference clock request (shared by BT
and WLAN).
Bluetooth/FM Transceiver
BT_RF N7 O Bluetooth PA output.
FM_RFIN N4 I FM radio antenna port.
FM_AOUT1 N1 O FM DAC output 1.
FM_AOUT2 N2 O FM DAC output 2.
Bluetooth PCM
BT_PCM_CLK H1 I/O PCM or SLIMbus clock; can be master
(output) or slave (input).
BT_PCM_IN G1 I PCM data input or SLIMbus transport
sensing.
BT_PCM_OUT H3 O PCM data output.
BT_PCM_SYNC G3 I/O PCM sync; can be master (output) or
slave (input), or SLIMbus data.
Bluetooth UART
BT_UART_CTS_N J6 I UART clear-to-send. Active-low clear-to-
send signal for the HCI UART interface.
BT_UART_RTS_N K3 O UART request-to-send. Active-low
request-to-send signal for the HCI UART
interface. BT LED control pin.
BT_UART_RXD K1 I UART serial input. Serial data input for
the HCI UART interface. BT RF disable
pin 2.
BT_UART_TXD K2 O UART serial output. Serial data output
for the HCI UART interface.
Table 19: Signal Descriptions (Cont.)
Signal Name WLBGA Ball Type Description
Pin DescriptionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 88
Bluetooth/FM I2S
BT_I2S_CLK J1 I/O I2S clock, can be master (output) or
slave (input).
BT_I2S_DI J2 I/O I2S data input.
BT_I2S_DO H2 I/O I2S data output.
BT_I2S_WS J3 I/O I2S WS; can be master (output) or slave
(input).
Bluetooth GPIO
BT_GPIO_2 J7 I/O Bluetooth general-purpose I/O.
BT_GPIO_3 H6 I/O Bluetooth general-purpose I/O.
BT_GPIO_4 H5 I/O Bluetooth general-purpose I/O.
BT_GPIO_5 K4 I/O Bluetooth general-purpose I/O.
Miscellaneous
WL_REG_ON C4 I Used by PMU to power-up or power
down the internal BCM43455 regulators
used by the WLAN section. Also, when
deasserted, this pin holds the WLAN
section in reset. This pin has an internal
200 k pull-down resistor that is
enabled by default. It can be disabled
through programming.
BT_REG_ON C3 I Used by PMU to power-up or power
down the internal BCM43455 regulators
used by the Bluetooth/FM section. Also,
when deasserted, this pin holds the
Bluetooth/FM section in reset. This pin
has an internal 200 k pull-down
resistor that is enabled by default. It can
be disabled through programming.
BT_DEV_WAKE M1 I/O Bluetooth DEV_WAKE.
BT_HOST_WAKE L3 I/O Bluetooth HOST_WAKE.
Integrated Voltage Regulators
SR_VDDBAT5V A2 I VBAT.
SR_VLX B1 O CBUCK switching regulator output.
Refer to Table 44 on page 130 for details
of the inductor and capacitor required on
this output.
LDO_VDD1P5 A3 I LNLDO input.
LDO_VDDBAT5V A5 I LDO VBAT.
WRF_XTAL_VDD1P35 H10 I XTAL LDO input (1.35V).
WRF_XTAL_VDD1P2 H9 O XTAL LDO output (1.2V).
VOUT_LNLDO B4 O Output of LNLDO.
VOUT_CLDO B3 O Output of core LDO.
VOUT_BTLDO2P5 B5 O Output of BT LDO.
Table 19: Signal Descriptions (Cont.)
Signal Name WLBGA Ball Type Description
Pin DescriptionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 89
VOUT_3P3 A4 O LDO 3.3V output.
Bluetooth Supplies
BT_PAVDD2P5 N6 PWR Bluetooth PA power supply.
BT_LNAVDD1P2 L7 PWR Bluetooth LNA power supply.
BT_IFVDD1P2 N5 PWR Bluetooth IF block power supply.
BT_PLLVDD1P2 M5 PWR Bluetooth RF PLL power supply.
FM Transceiver Supplies
FM_RFVDD1P2 N3 PWR FM RF power supply.
FM_PLLVDD1P2 M2 PWR FM PLL power supply.
WLAN Supplies
WRF_SYNTH_VDD3P3 H8 PWR Synthesizer VDD 3.3V supply.
WRF_PA_VDD3P3 N11 PWR 2 GHz and 5 GHz PA 3.3V VBAT supply.
WRF_PMU_VDD1P35 J11 PWR PMU 1.35V supply.
WRF_TXMIX_VDD M9 PWR 3.3V supply for the TX Mix.
WRF_SYNTH_VDD1P2 J10 PWR 1.2V supply for the synthesizer.
WRF_AFE_VDD1P35 K10 PWR 1.35V supply for the AFE.
Miscellaneous Supplies
VDDC C8, E2, F8, J5 PWR 1.2V core supply for the WLAN.
VDDIO D5 PWR 1.8V–3.3V VDDIO supply for the WLAN.
Must be directly connected to
PMU_VDDO and BT_VDDO on the
PCB.
BT_VDDC F2, J4, L1 PWR 1.2V core supply for the BT.
BT_VDDO G4 PWR 1.8V–3.3V VDDIO supply for the BT.
Must be directly connected to
PMU_VDDO and VDDIO on the PCB.
VDDIO_SD D6 PWR 1.8V–3.3V supply for the SDIO pads.
VDDIO_RF E7 PWR IO supply for the RF switch control pads
(3.3V).
AVDD_BBPLL E9 PWR 1.2V supply for the baseband PLL.
PCIE_PLL_AVDD1P2 C10 PWR 1.2V supply for the PCIe PLL.
VOUT_PCIELDO B2 PWR 1.2V supply for the PCIe.
PCIE_RXTX_AVDD1P2 B9 PWR 1.2V supply for the PCIe TX/RX.
Ground
WRF_VCO_GND J8 GND VCO/LOGEN ground.
WRF_AFE_GND L9 GND AFE ground.
WRF_XTAL_GND1P2 G10 GND XTAL ground.
WRF_RX2G_GND M8 GND RX 2 GHz ground.
WRF_RX5G_GND K11 GND RX 5 GHz ground.
WRF_PA_GND3P3 M10 GND PA ground.
WRF_GENERAL_GND K9 GND General ground.
Table 19: Signal Descriptions (Cont.)
Signal Name WLBGA Ball Type Description
Pin DescriptionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 90
WRF_GENERAL2_GND L10 GND General ground.
WRF_SYNTH_GND J9 GND Ground.
VSSC C5, F5, F9,
G2, K5, L2
GND Core ground for WLAN and BT.
SR_PVSS A1 GND Power ground.
PMU_AVSS C2 GND Quiet ground.
BT_PAVSS M6 GND Bluetooth PA ground.
BT_LNAVSS M7 GND Bluetooth LNA ground.
BT_IFVSS L6 GND Bluetooth IF block ground.
BT_PLLVSS L5 GND Bluetooth PLL ground.
FM_PLLVSS M4 GND FM PLL ground.
FM_RFVSS M3 GND FM RF ground.
AVSS_BBPLL E10 GND Baseband PLL ground.
PCIE_VSS C9 GND PCIe ground.
No Connect
NC1 D9 – No connect.
NC2 E11
NC3 E8
NC H4 – No connect.
Depopulated Pins
– A11, H7, N10 – –
Table 19: Signal Descriptions (Cont.)
Signal Name WLBGA Ball Type Description
WLAN GPIO Signals and Strapping OptionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 91
WLAN GPIO Signals and Strapping Options
This section describes WLAN GPIO signals and strapping options. The pins are sampled at power-on reset
(POR) to determine the various operating modes. Sampling occurs a few milliseconds after an internal POR or
deassertion of the external POR. After the POR, each pin assumes the GPIO or alternative function specified
in the signal descriptions table. Each strapping option pin has an internal pull-up (PU) or pull-down (PD) resistor
that determines the default mode. To change the mode, connect an external PU resistor to VDDIO or a PD
resistor to GND, using a 10 k resistor or less.
Note: Refer to the reference board schematics for more information.
Table 20: Strapping Options
Pin Name Strap WLBGA
Ball
Default Internal
Pull During
Strap Description
GPIO_7 sdio_padvddio E1 1 Default pull = 1.
SDIO interface voltage.
1 = 1.8V,
0 = 3.3V.
Default is 1.8V.
GPIO_16 host_iface_sdio K6 0 Default is PCIe. Pull high during
POR to select SDIO.
Broadcom®
November 5, 2015 • 43455-DS109-R Page 92
WLAN GPIO Signals and Strapping Options
BROADCOM CONFIDENTIAL
BCM43455 Preliminary Data Sheet
Multiplexed Bluetooth GPIO Signals
The Bluetooth GPIO pins (BT_GPIO_0 to BT_GPIO_7) are multiplexed pins and can be programmed to be used as GPIOs or for other Bluetooth interface
signals such as I2S. The specific function for a given BT_GPIO_X pin is chosen by programming the Pad Function Control register for that specific pin.
Ta b l e 2 1 shows the possible options for each BT_GPIO_X pin. Note that each BT_GPIO_X pin's Pad Function Control register setting is independent
(BT_GPIO_5 can be set to pad function 7 at the same time that BT_GPIO_3 is set to pad function 0). When the Pad Function Control register is set to
0, the BT_GPIOs do not have specific functions assigned to them and behave as generic GPIOs. The A_GPIO_X pins described below are multiplexed
behind the BCM43455's PCM and I2S interface pins.
Table 21: GPIO Multiplexing Matrix
Pin Name
Pad Function Control Register Setting
0 1 2 3 4 5 6 7 15
BT_UART_CTS_N UART_CTS_N – – – – – – A_GPIO[1] –
BT_UART_RTS_N UART_RTS_N – – – – – – A_GPIO[0] –
BT_UART_RXD UART_RXD – – – – – – GPIO[5] –
BT_UART_TXD UART_TXD – – – – – – GPIO[4] –
BT_PCM_IN A_GPIO[3] PCM_IN PCM_IN HCLK – – – I2S_SSDI/MSDI SF_MISO
BT_PCM_OUT A_GPIO[2] PCM_OUT PCM_OUT LINK_IND – I2S_MSDO – I2S_SSDO SF_MOSI
BT_PCM_SYNC A_GPIO[1] PCM_SYNC PCM_SYNC HCLK – I2S_MWS – I2S_SWS SF_SPI_CSN
BT_PCM_CLK A_GPIO[0] PCM_CLK PCM_CLK – – I2S_MSCK – I2S_SSCK SF_SPI_CLK
BT_I2S_DO A_GPIO[5] PCM_OUT – – I2S_SSDO I2S_MSDO – STATUS –
BT_I2S_DI A_GPIO[6] PCM_IN – HCLK I2S_SSDI/MSDI – – TX_CON_FX –
BT_I2S_WS GPIO[7] PCM_SYNC – LINK_IND – I2S_MWS – I2S_SWS –
BT_I2S_CLK GPIO[6] PCM_CLK – – INT_LPO I2S_MSCK – I2S_SSCK –
BT_GPIO_5 GPIO[5] HCLK – I2S_MSCK I2S_SSCK – – CLK_REQ –
BT_GPIO_4 GPIO[4] LINK_IND – I2S_MSDO I2S_SSDO – – – –
BT_GPIO_3 GPIO[3] – – I2S_MWS I2S_SWS – – – –
BT_GPIO_2 GPIO[2] – – – I2S_SSDI/MSDI – – – –
BT_CLK_REQ WL/BT_CLK_REQ – – – – – – A_GPIO[7] –
WLAN GPIO Signals and Strapping OptionsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 93
The multiplexed GPIO signals are described in Tab le 22.
Table 22: Multiplexed GPIO Signals
Pin Name Type Description
UART_CTS_N I Host UART clear to send.
UART_RTS_N O Device UART request to send.
UART_RXD I Device UART receive data.
UART_TXD O Host UART transmit data.
PCM_IN I PCM data input.
PCM_OUT O PCM data output.
PCM_SYNC I/O PCM sync signal, can be master (output) or slave (input).
PCM_CLK I/O PCM clock, can be master (output) or slave (input).
GPIO[7:0] I/O General-purpose I/O.
A_GPIO[7:0] I/O A group general-purpose I/O.
I2S_MSDO O I2S master data output.
I2S_MWS O I2S master word select.
I2S_MSCK O I2S master clock.
I2S_SSCK I I2S slave clock.
I2S_SSDO O I2S slave data output.
I2S_SWS I I2S slave word select.
I2S_SSDI/MSDI I I2S slave/master data input.
STATUS O Signals Bluetooth priority status.
TX_CON_FX I WLAN-BT coexist. Transmission confirmation; permission for BT to transmit.
RF_ACTIVE O WLAN-BT coexist. Asserted (logic high) during local BT RX and TX slots.
LINK_IND O BT receiver/transmitter link indicator.
CLK_REQ O WLAN/BT clock request output.
SF_SPI_CLK O SFlash SCLK: serial clock (output from master).
SF_MISO I SFlash MISO; SOMI: master input, slave output (output from slave).
SF_MOSI O SFlash MOSI; SIMO: master output, slave input (output from master).
SF_SPI_CSN O SFlash SS: slave select (active low, output from master).
Broadcom®
November 5, 2015 • 43455-DS109-R Page 94
I/O States
BROADCOM CONFIDENTIAL
BCM43455 Preliminary Data Sheet
I/O States
The following notations are used in Table 23:
• I: Input signal
• O: Output signal
• I/O: Input/Output signal
•PU = Pulled up
• PD = Pulled down
• NoPull = Neither pulled up nor pulled down
Table 23: I/O States
Name I/O KeeperaActive Mode Low Power State/Sleep
(All Power Present)
Power-downb
(BT_REG_ON and
WL_REG_ON Held Low)
Out-of-Reset;
Before SW Download
(BT_REG_ON High;
WL_REG_ON High)
(WL_REG_ON High and
BT_REG_ON = 0) and
VDDIOs Are Present Power Rail
WL_REG_ON I N Input; PD (pull-down can
be disabled)
Input; PD (pull-down can
be disabled)
Input; PD (of 200K) Input; PD (of 200K) Input; PD (of 200K) –
BT_REG_ON I N Input; PD (pull down can
be disabled)
Input; PD (pull down can
be disabled)
Input; PD (of 200K) Input; PD (of 200K) Input; PD (of 200K) –
BT_CLK_REQ I/O Y Open drain or push-pull
(programmable). Active
high.
Open drain or push-pull
(programmable). Active
high
High-Z, NoPull Open drain. Active high Open drain. Active high. BT_VDDO
BT_HOST_WAKE I/O Y Input/Output; PU, PD,
NoPull (programmable)
Input/Output; PU, PD,
NoPull (programmable)
High-Z, NoPull Input, PU Input, PD BT_VDDO
BT_DEV_WAKE I/O Y Input/Output; PU, PD,
NoPull (programmable)
Input; PU, PD, NoPull
(programmable)
High-Z, NoPull Input, PD Input, PD BT_VDDO
BT_GPIO_2,
BT_GPIO_3
I/O Y Input/Output; PU, PD,
NoPull (programmable)
Input/Output; PU, PD,
NoPull (programmable)
High-Z, NoPull Input, PD Input, PD BT_VDDO
BT_GPIO_4,
BT_GPIO_5
I/O Y Input/Output; PU, PD,
NoPull (programmable)
Input/Output; PU, PD,
NoPull (programmable)
High-Z, NoPull Input, PU Input, PU BT_VDDO
BT_UART_CTS_N I Y Input; NoPull Input; NoPull High-Z, NoPull Input; PU Input; PU BT_VDDO
BT_UART_RTS_N O Y Output; NoPull Output; NoPull High-Z, NoPull Input; PU Input; PU BT_VDDO
BT_UART_RXD I Y Input; PU Input; NoPull High-Z, NoPull Input; PU Input; PU BT_VDDO
BT_UART_TXD O Y Output; NoPull Output; NoPull High-Z, NoPull Input; PU Input; PU BT_VDDO
SDIO_DATA[0:3] I/O N Input/Output; PU (SDIO
Mode)
Input; PU (SDIO Mode) High-Z, NoPull Input; PU (SDIO Mode) Input; PU (SDIO Mode) WL_VDDIO
Broadcom®
November 5, 2015 • 43455-DS109-R Page 95
I/O States
BROADCOM CONFIDENTIAL
BCM43455 Preliminary Data Sheet
SDIO_CMD I/O N Input/Output; PU (SDIO
Mode)
Input; PU (SDIO Mode) High-Z, NoPull Input; PU (SDIO Mode) Input; PU (SDIO Mode) WL_VDDIO
SDIO_CLK I N Input; NoPull Input; noPull High-Z, NoPull Input; noPull Input; noPull WL_VDDIO
BT_PCM_CLK I/O Y Input; NoPullcInput; NoPullcHigh-Z, NoPull Input, PD Input, PD BT_VDDO
BT_PCM_IN I/O Y Input; NoPullc Input; NoPullcHigh-Z, NoPull Input, PD Input, PD BT_VDDO
BT_PCM_OUT I/O Y Input; NoPullc Input; NoPullcHigh-Z, NoPull Input, PD Input, PD BT_VDDO
BT_PCM_SYNC I/O Y Input; NoPull cInput; NoPullcHigh-Z, NoPull Input, PD Input, PD BT_VDDO
BT_I2S_WS I/O Y Input; NoPulldInput; NoPulldHigh-Z, NoPull Input, PD Input, PD BT_VDDO
BT_I2S_CLK I/O Y Input; NoPulldInput; NoPulldHigh-Z, NoPull Input, PD Input, PD BT_VDDO
BT_I2S_DI I/O Y Input; NoPulldInput; NoPulldHigh-Z, NoPull Input, PD Input, PD BT_VDDO
BT_I2S_DO I/O Y Input; NoPulldInput; NoPulldHigh-Z, NoPull Input, PD Input, PD BT_VDDO
GPIO_0 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: PD])
Input/Output; PU, PD,
NoPull (programmable
[Default: PD])
High-Z, NoPull Input; PD Input; PD WL_VDDIO
GPIO_1 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
GPIO_2 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
GPIO_3 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: PD])
Input/Output; PU, PD,
NoPull (programmable
[Default: PD])
High-Z, NoPull Input; PD Input; PD WL_VDDIO
GPIO_4 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
GPIO_5 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: PD])
Input/Output; PU, PD,
NoPull (programmable
[Default: PD])
High-Z, NoPull Input; PD Input; PD WL_VDDIO
GPIO_6 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
GPIO_7 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
Table 23: I/O States (Cont.)
Name I/O KeeperaActive Mode Low Power State/Sleep
(All Power Present)
Power-downb
(BT_REG_ON and
WL_REG_ON Held Low)
Out-of-Reset;
Before SW Download
(BT_REG_ON High;
WL_REG_ON High)
(WL_REG_ON High and
BT_REG_ON = 0) and
VDDIOs Are Present Power Rail
Broadcom®
November 5, 2015 • 43455-DS109-R Page 96
I/O States
BROADCOM CONFIDENTIAL
BCM43455 Preliminary Data Sheet
GPIO_8 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: PD])e
Input/Output; PU, PD,
NoPull (programmable
[Default: PD])e
High-Z, NoPull Input; PDeInput; PDeWL_VDDIO
GPIO_9 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: PD])
Input/Output; PU, PD,
NoPull (programmable
[Default: PD])
High-Z, NoPull Input; PD Input; PD WL_VDDIO
GPIO_10 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
GPIO_13 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
GPIO_14 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
GPIO_15 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
GPIO_16 I/O Y Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
Input/Output; PU, PD,
NoPull (programmable
[Default: NoPull])
High-Z, NoPull Input; NoPull Input; NoPull WL_VDDIO
RF_SW_CTRL
[0:8]
I/O Y Output; NoPull Output; NoPull High-Z Output; NoPull Output; NoPull VDDIO_RF
a. Keeper column: N = pad has no keeper. Y = pad has a keeper. Keeper is always active except in power-down state. If there is no keeper, and it is an input
and there is NoPull, then the pad should be driven to prevent leakage due to floating pad (SDIO_CLK, for example).
b. In the power-down state (xx_REG_ON=0): High-Z; NoPull => the pad is disabled because power is not supplied.
c. Depending on whether the PCM interface is enabled and the configuration of PCM is in master or slave mode, it can be either output or input.
d. Depending on whether the I2S interface is enabled and the configuration of I2S is in master or slave mode, it can be either output or input.
e. NoPull when in SDIO mode.
Table 23: I/O States (Cont.)
Name I/O KeeperaActive Mode Low Power State/Sleep
(All Power Present)
Power-downb
(BT_REG_ON and
WL_REG_ON Held Low)
Out-of-Reset;
Before SW Download
(BT_REG_ON High;
WL_REG_ON High)
(WL_REG_ON High and
BT_REG_ON = 0) and
VDDIOs Are Present Power Rail
DC CharacteristicsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 97
Section 14: DC Characteristics
Absolute Maximum Ratings
Note: Values in this data sheet are design goals and are subject to change based on the results of
device characterization.
Caution! The absolute maximum ratings in Table 24 indicate levels where permanent damage to the
device can occur, even if these limits are exceeded for only a brief duration. Functional operation is
not guaranteed under these conditions. Operation at absolute maximum conditions for extended
periods can adversely affect long-term reliability of the device.
Table 24: Absolute Maximum Ratings
Rating Symbol Value Unit
DC supply for the VBAT and PA driver supply VBAT –0.5 to +6.0 V
DC supply voltage for digital I/O VDDIO –0.5 to 3.9 V
DC supply voltage for RF switch I/Os VDDIO_RF –0.5 to 3.9 V
DC input supply voltage for CLDO and LNLDO – –0.5 to 1.575 V
DC supply voltage for RF analog VDDRF –0.5 to 1.32 V
DC supply voltage for core VDDC –0.5 to 1.32 V
WRF_TCXO_VDD – –0.5 to 3.63 V
Maximum undershoot voltage for I/Oa
a. Duration not to exceed 25% of the duty cycle.
Vundershoot –0.5 V
Maximum overshoot voltage for I/OaVovershoot VDDIO + 0.5 V
Maximum junction temperature Tj 125 °C
Environmental RatingsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 98
Environmental Ratings
The environmental ratings are shown in Table 25.
Electrostatic Discharge Specifications
Extreme caution must be exercised to prevent electrostatic discharge (ESD) damage. Proper use of wrist and
heel grounding straps to discharge static electricity is required when handling these devices. Always store
unused material in its antistatic packaging.
Table 25: Environmental Ratings
Characteristic Value Units Conditions/Comments
Ambient Temperature (TA) –30 to +85 °C Functional operationa
a. Functionality is guaranteed across this ambient temperature range. Optimal RF performance specified in the
data sheet, however, is guaranteed only for –20°C to 75°C.
Storage Temperature –40 to +125 °C –
Relative Humidity Less than 60 % Storage
Less than 85 % Operation
Table 26: ESD Specifications
Pin Type Symbol Condition Minimum
ESD Rating Unit
ESD
Handling Reference:
NQY00083, Section 3.4,
Group D9, Table B
ESD_HAND_HBM Human body model contact discharge
per JEDEC EID/JESD22-A114
1kV
CDM ESD_HAND_CDM Charged device model contact
discharge per JEDEC EIA/JESD22-
C101
250 V
Recommended Operating Conditions and DC CharacteristicsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 99
Recommended Operating Conditions and DC Characteristics
Caution! Functional operation is not guaranteed outside of the limits shown in Table 27. Operation
outside these limits for extended periods can adversely affect long-term reliability of the device.
Note: For DC absolute maximum rating (AMR), see Table 24 on page 97.
Table 27: Recommended Operating Conditions and DC Characteristics
Parameter Symbol
Value
UnitMinimum Typical Maximum
DC supply voltage for VBAT VBAT 3.0a
a. The BCM43455 is functional across this range of voltages. Optimal RF performance specified in the data sheet,
however, is guaranteed only for 3.2V < VBAT < 4.8V.
–5.25 b
b. The maximum continuous voltage is 5.25V.
V
DC supply voltage for core VDD 1.14 1.2 1.26 V
DC supply voltage for RF blocks in chip VDDRF 1.14 1.2 1.26 V
DC supply voltage for TCXO input buffer WRF_TCXO_VDD 1.62 1.8 1.98 V
DC supply voltage for digital I/O VDDIO 1.62 – 3.63 V
DC supply voltage for RF switch I/Os VDDIO_RF 3.13 3.3 3.46 V
External TSSI input TSSI 0.15 – 0.95 V
Internal POR threshold Vth_POR 0.4 – 0.7 V
Other Digital I/O Pins
For VDDIO = 1.8V:
Input high voltage VIH 0.65 × VDDIO ––V
Input low voltage VIL – – 0.35 × VDDIO V
Output high voltage @ 2 mA VOH VDDIO – 0.45 ––V
Output low voltage @ 2 mA VOL ––0.45 V
For VDDIO = 3.3V:
Input high voltage VIH 2.00 ––V
Input low voltage VIL ––0.80 V
Output high voltage @ 2 mA VOH VDDIO – 0.4 ––V
Output low Voltage @ 2 mA VOL ––0.40 V
RF Switch Control Output Pinsc
c. Programmable 2 mA to 16 mA drive strength. Default is 10 mA.
For VDDIO_RF = 3.3V:
Output high voltage @ 2 mA VOH VDDIO – 0.4 ––V
Output low voltage @ 2 mA VOL ––0.40 V
Output capacitance COUT – – 5 pF
EM
Bluetooth RF SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 100
Section 15: Bluetooth RF Specifications
Unless otherwise stated, limit values apply for the conditions specified in Table 25: “Environmental Ratings,” on
page 98 and Table 27: “Recommended Operating Conditions and DC Characteristics,” on page 99. Typical
values apply for the following conditions:
• VBAT = 3.6V
• Ambient temperature +25°C

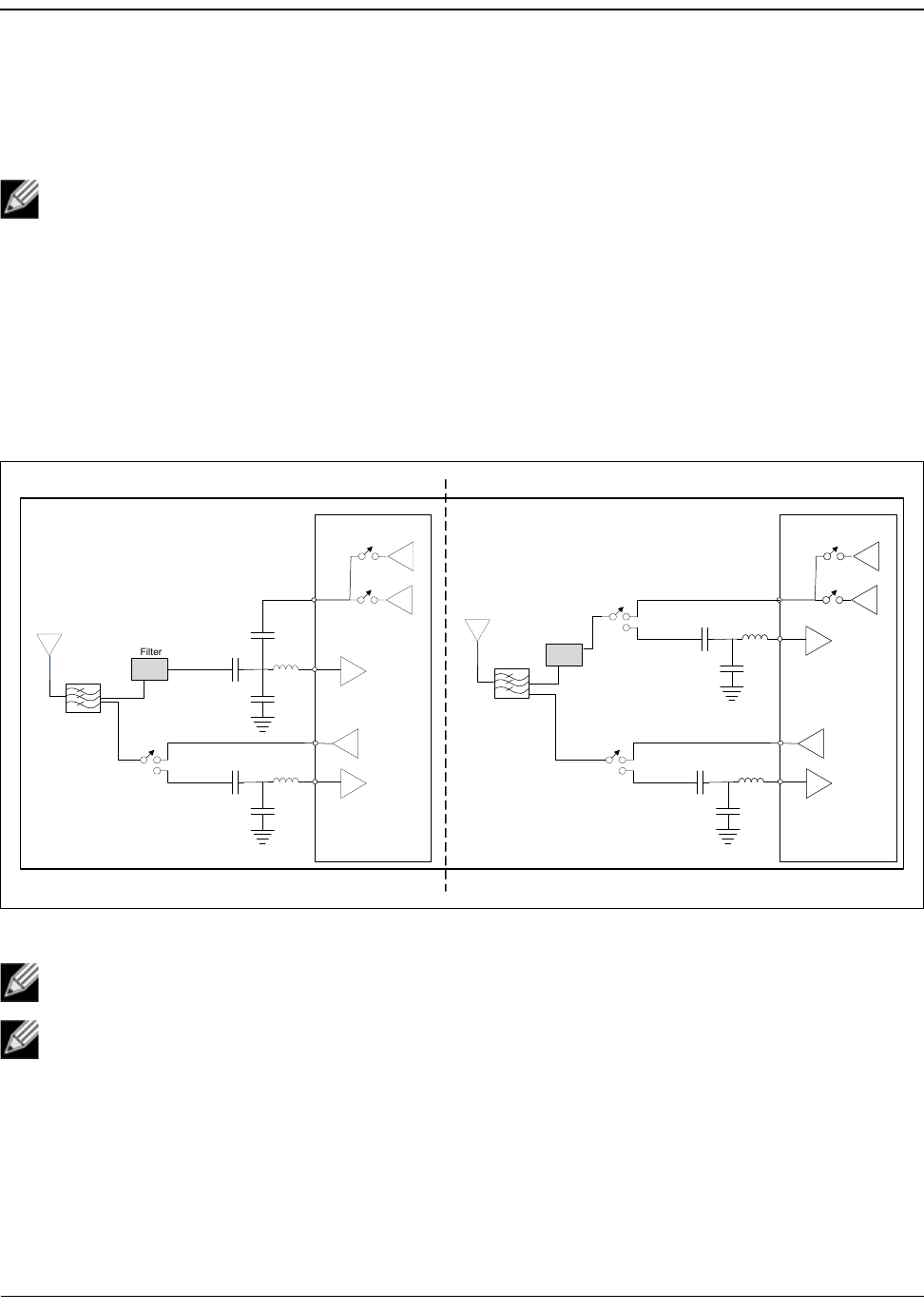

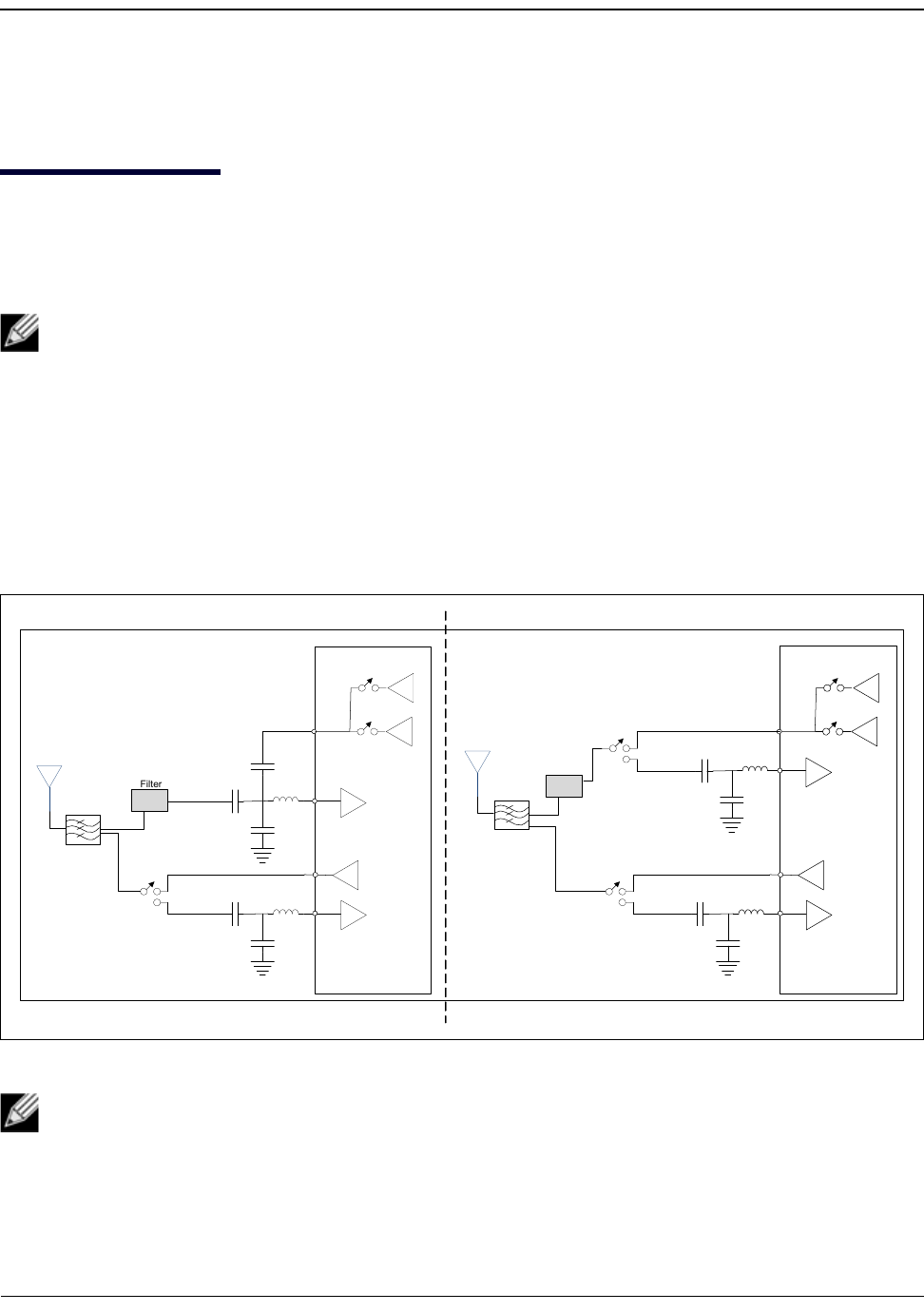

Figure 32: Port Locations for Bluetooth Testing
Note: Values in this data sheet are design goals and are subject to change based on device
characterization results.
Note: All Bluetooth specifications are measured at the chip port, unless otherwise defined.
Note: The specifications in Table 28 on page 101 are measured at the chip port input, unless
otherwise defined.
Optional
Filter
BT
PA
2G
PA
LNA
5G
LNA
2G
5G
PA
Diplexer
Chip
Port
Antenna
Port
Antenna
Port
2.4G Configured with iTR
RF Port
Optional Filter
BT
PA
2G
PA
LNA
5G
LNA
2G
5G
PA
Diplexer
RF Port
Chip
Port
2.4G Configured with eTR
Chip
Port
Chip
Port
Chip
Port
Chip
Port
Chip
Port
Chip
Port
RF Port
Bluetooth RF SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 101
Table 28: Bluetooth Receiver RF Specifications
Parameter Conditions Minimum Typical Maximum Unit
General
Frequency range – 2402 – 2480 MHz
RX sensitivityaGFSK, 0.1% BER, 1 Mbps – –93.5 – dBm
/4-DQPSK, 0.01% BER,
2 Mbps
– –95.5 – dBm
8-DPSK, 0.01% BER,
3 Mbps
– –89.5 – dBm
Input IP3 – –16 – – dBm
Maximum input at RF port – – – –20 dBm
RX LO Leakage
2.4 GHz band – – – –90 dBm
Interference Performanceb
C/I co-channel GFSK, 0.1% BER – – 11 dB
C/I 1 MHz adjacent channelGFSK, 0.1% BER––0dB
C/I 2 MHz adjacent channel GFSK, 0.1% BER – – –30 dB
C/I 3 MHz adjacent channel GFSK, 0.1% BER – – –40 dB
C/I image channel GFSK, 0.1% BER – – –9 dB
C/I 1-MHz adjacent to image
channel
GFSK, 0.1% BER – – –20 dB
C/I co-channel /4-DQPSK, 0.1% BER – – 13 dB
C/I 1 MHz adjacent channel /4-DQPSK, 0.1% BER––0dB
C/I 2 MHz adjacent channel /4-DQPSK, 0.1% BER – – –30 dB
C/I 3 MHz adjacent channel /4-DQPSK, 0.1% BER – – –40 dB
C/I image channel /4-DQPSK, 0.1% BER – – –7 dB
C/I 1 MHz adjacent to image
channel
/4-DQPSK, 0.1% BER – – –20 dB
C/I co-channel 8-DPSK, 0.1% BER – – 21 dB
C/I 1 MHz adjacent channel8-DPSK, 0.1% BER––5dB
C/I 2 MHz adjacent channel 8-DPSK, 0.1% BER – – –25 dB
C/I 3 MHz adjacent channel 8-DPSK, 0.1% BER – – –33 dB
C/I Image channel 8-DPSK, 0.1% BER––0dB
C/I 1 MHz adjacent to image
channel
8-DPSK, 0.1% BER – – –13 dB
Bluetooth RF SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 102
Out-of-Band Blocking Performance (CW)
30–2000 MHz 0.1% BER – –10 – dBm
2000–2399 MHz 0.1% BER – –27 – dBm
2498–3000 MHz 0.1% BER – –27 – dBm
3000 MHz–12.75 GHz 0.1% BER – –10 – dBm
Out-of-Band Blocking Performance, Modulated Interferer
GFSK (1 Mbps) c
698–716 MHz WCDMA – –14 – dBm
776–849 MHz WCDMA – –14 – dBm
824–849 MHz GSM850 – –14 – dBm
824–849 MHz WCDMA – –14 – dBm
880–915 MHz E-GSM – –13 – dBm
880–915 MHz WCDMA – –13 – dBm
1710–1785 MHz GSM1800 – –18 – dBm
1710–1785 MHz WCDMA – –17 – dBm
1850–1910 MHz GSM1900 – –20 – dBm
1850–1910 MHz WCDMA – –19 – dBm
1880–1920 MHz TD-SCDMA – –20 – dBm
1920–1980 MHz WCDMA – –20 – dBm
2010–2025 MHz TD–SCDMA – –20 – dBm
2500–2570 MHz WCDMA – –23 – dBm
2500–2570 MHzdBand 7 – –25 – dBm
2300–2400 MHzeBand 40 – –35.2 – dBm
2570–2620 MHzfBand 38 – –21 – dBm
2545–2575 MHzgXGP Band – –22 – dBm
/4-DPSK (2 Mbps) c
698–716 MHz WCDMA – –10 – dBm
776–794 MHz WCDMA – –10 – dBm
824–849 MHz GSM850 – –11 – dBm
824–849 MHz WCDMA – –11 – dBm
880–915 MHz E-GSM – –10 – dBm
880–915 MHz WCDMA – –10 – dBm
1710–1785 MHz GSM1800 – –16 – dBm
1710–1785 MHz WCDMA – –16 – dBm
1850–1910 MHz GSM1900 – –17 – dBm
1850–1910 MHz WCDMA – –16 – dBm
1880–1920 MHz TD-SCDMA – –18 – dBm
Table 28: Bluetooth Receiver RF Specifications (Cont.)
Parameter Conditions Minimum Typical Maximum Unit
Bluetooth RF SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 103
1920–1980 MHz WCDMA – –17 – dBm
2010–2025 MHz TD-SCDMA – –19 – dBm
2500–2570 MHz WCDMA – –23 – dBm
2500–2570 MHzdBand 7 – –24.4 – dBm
2300–2400 MHzeBand 40 – –36.5 – dBm
2570–2620 MHzfBand 38 – –21 – dBm
2545–2575 MHzgXGP Band – –22 – dBm
8-DPSK (3 Mbps) c
698-716 MHz WCDMA – –13 – dBm
776-794 MHz WCDMA – –13 – dBm
824-849 MHz GSM850 – –13 – dBm
824-849 MHz WCDMA – –14 – dBm
880-915 MHz E-GSM – –13 – dBm
880-915 MHz WCDMA – –13 – dBm
1710-1785 MHz GSM1800 – –18 – dBm
1710-1785 MHz WCDMA – –17 – dBm
1850-1910 MHz GSM1900 – –19 – dBm
1850-1910 MHz WCDMA – –19 – dBm
1880-1920 MHz TD-SCDMA – –19 – dBm
1920-1980 MHz WCDMA – –19 – dBm
2010-2025 MHz TD-SCDMA – –20 – dBm
2500-2570 MHz WCDMA – –23 – dBm
2500–2570 MHzdBand 7 – –24.7 – dBm
2300–2400 MHzeBand 40 – –36.7 – dBm
2570–2620 MHzfBand 38 – –21 – dBm
2545–2575 MHzgXGP Band – –22 – dBm
Table 28: Bluetooth Receiver RF Specifications (Cont.)
Parameter Conditions Minimum Typical Maximum Unit
Bluetooth RF SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 104
Spurious Emissions
30 MHz–1 GHz – –95 –62 dBm
1–12.75 GHz – –70 –47 dBm
851–894 MHz – –147 – dBm/Hz
925–960 MHz – –147 – dBm/Hz
1805–1880 MHz – –147 – dBm/Hz
1930–1990 MHz – –147 – dBm/Hz
2110–2170 MHz – –147 – dBm/Hz
a. Dirty TX is off.
b. The maximum value represents the actual Bluetooth specification required for Bluetooth qualification as defined
in the version 4.1 specification.
c. 3 dB receiver desense.
d. 2560 MHz performance is used.
e. 2360 MHz performance is used.
f. 2580 MHz performance is used.
g. 2555 MHz performance is used.
Table 29: Bluetooth Transmitter RF Specifications
Parameter Conditions Minimum Typical Maximum Unit
Note: The specifications in this table are measured at the Bluetooth chip port output, unless otherwise defined.
General
Frequency range 2402 – 2480 MHz
Basic rate (GFSK) TX power at Bluetooth – 12 – dBm
QPSK TX Power at Bluetooth – 8 – dBm
8PSK TX Power at Bluetooth – 8 – dBm
Power control step – 2 4 8 dB
Note: Output power is with TCA and TSSI enabled.
GFSK In-Band Spurious Emissions
–20 dBc BW – – 0.93 1 MHz
EDR In-Band Spurious Emissions
1.0 MHz < |M – N| < 1.5 MHz M – N = the frequency range for
which the spurious emission is
measured relative to the
transmit center frequency.
– –38 –26 dBc
1.5 MHz < |M – N| < 2.5 MHz – –31 –20 dBm
|M – N| 2.5 MHza– –43 –40 dBm
Table 28: Bluetooth Receiver RF Specifications (Cont.)
Parameter Conditions Minimum Typical Maximum Unit
Bluetooth RF SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 105
Out-of-Band Spurious Emissions
30 MHz to 1 GHz – – – –36 b, c dBm
1 GHz to 12.75 GHz – – – –30 b, d, e dBm
1.8 GHz to 1.9 GHz – – – –47 dBm
5.15 GHz to 5.3 GHz – – – –47 dBm
GPS Band Spurious Emissions
Spurious emissions – – –103 – dBm
Out-of-Band Noise Floor f
65–108 MHz FM RX – –147 – dBm/Hz
776–794 MHz CDMA2000 – –146 – dBm/Hz
869–960 MHz cdmaOne, GSM850 – –146 – dBm/Hz
925–960 MHz E-GSM – –146 – dBm/Hz
1570–1580 MHz GPS – –146 – dBm/Hz
1805–1880 MHz GSM1800 – –144 – dBm/Hz
1930–1990 MHz GSM1900, cdmaOne, WCDMA – –143 – dBm/Hz
2110–2170 MHz WCDMA – –137 – dBm/Hz
2500–2570 MHz Band 7 – –130 – dBm/Hz
2300–2400 MHz Band 40 – –130 – dBm/Hz
2570–2620 MHz Band 38 – –132 – dBm/Hz
2545–2575 MHz XGP Band – –135 – dBm/Hz
a. The typical number is measured at ± 3 MHz offset.
b. The maximum value represents the value required for Bluetooth qualification as defined in the v4.1 specification.
c. The spurious emissions during Idle mode are the same as specified in Table 29 on page 104.
d. Specified at the Bluetooth Antenna port.
e. Meets this specification using a front-end band-pass filter.
f. Transmitted power in cellular and FM bands at the antenna port. See Figure 32 on page 100 for location of the
port.
Table 29: Bluetooth Transmitter RF Specifications (Cont.)
Parameter Conditions Minimum Typical Maximum Unit
Bluetooth RF SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 106
Table 30: Local Oscillator Performance
Parameter Minimum Typical Maximum Unit
LO Performance
Lock time – 72 – s
Initial carrier frequency tolerance – ±25 ±75 kHz
Frequency Drift
DH1 packet – ±8 ±25 kHz
DH3 packet – ±8 ±40 kHz
DH5 packet – ±8 ±40 kHz
Drift rate – 5 20 kHz/50 µs
Frequency Deviation
00001111 sequence in payloada
a. This pattern represents an average deviation in payload.
140 155 175 kHz
10101010 sequence in payloadb
b. Pattern represents the maximum deviation in payload for 99.9% of all frequency deviations.
115 140 – kHz
Channel spacing – 1 – MHz
Table 31: BLE RF Specifications
Parameter Conditions Minimum Typical Maximum Unit
Frequency range – 2402 – 2480 MHz
RX sensea
a. Dirty TX is Off.
GFSK, 0.1% BER, 1 Mbps – –96.5 – dBm
TX powerb
b. The BLE TX power cannot exceed 10 dBm EIRP specification limit. The front-end losses and antenna gain/loss
must be factored in so as not to exceed the limit.
– – 8.5 – dBm
Mod Char: delta F1 average – 225 255 275 kHz
Mod Char: delta F2 max.c
c. At least 99.9% of all delta F2 max. frequency values recorded over 10 packets must be greater than 185 kHz.
–230––%
Mod Char: ratio – 0.8 1 – %
M onl
|+
FM Receiver SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 107
Section 16: FM Receiver Specifications
Unless otherwise stated, limit values apply for the conditions specified in Table 25: “Environmental Ratings,” on
page 98 and Table 27: “Recommended Operating Conditions and DC Characteristics,” on page 99. Typical
values apply for the following conditions:
• VBAT = 3.6V
• Ambient temperature +25°C
Table 32: FM Receiver Specifications
Parameter ConditionsaMinimum Typical Maximum Units
RF Parameters
Operating frequencybFrequencies inclusive 65 – 108 MHz
SensitivitycFM only
SNR > 26 dB
––1– dBV EMF
–0.9– V EMF
––7– dBV
Receiver adjacent
channel selectivityc, d
Measured for 30 dB SNR at the audio output with best tune.
Signal of interest: 23 dBV EMF (14.1 V EMF),
At ± 200 kHz. – 51 – dB
At ± 400 kHz – 62 – dB
Intermediate signal plus
noise-to-noise ratio
(S+N)/Nc
Vin = 20 dBV EMF (10 V EMF) 45 53 – dB
Intermodulation
performancec, d
Blocker level increased until desired at
30 dB SNR
Wanted Signal: 33 dBV EMF (45 V
EMF)
Modulated Interferer: At fWanted
+400 kHz and +4MHz
CW Interferer: At fWanted + 800 kHz and
+8MHz
–55– dBc
AM suppression, monocVin = 23 dBV EMF (14.1 V EMF)
AM at 400 Hz with m = 0.3
No A-weighted or any other filtering
applied.
40 – – dB
RDS
RDS Sensitivity e, fRDS deviation = 1.2 kHz – 16 – dBV EMF
–6.3– V EMF
–10– dBV
RDS deviation = 2 kHz – 12 – dBV EMF
–4– V EMF
–6– dBV
FM Receiver SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 108
RDS selectivityfWanted Signal: 33 dBV EMF (45 V EMF), 2 kHz RDS deviation with best tune
Interferer: f = 40 kHz, fmod = 1 kHz
±200 kHz – 49 – dB
±300 kHz – 52 – dB
±400 kHz – 52 – dB
RF input impedance – 1.5 – – k
Antenna tuning capacitor – 2.5 – 30 pF
Maximum input levelcSNR > 26 dB – – 113 dBV EMF
––446mV EMF
––107dBV
RF conducted emissions Local oscillator breakthrough measured
on the reference port
–––55dBm
869–894 MHz, 925–960 MHz,
1805–1880 MHz, 1930–1990 MHz.
GPS
–––90dBm
RF blocking levels at the
FM antenna input 40 dB
SNR (assumes a 50 at
the radio input and
excludes spurs)
GSM850, E-GSM (std), BW = 0.2 MHz,
824–849 MHz
880–915 MHz
–5– dBm
GSM850, E-GSM (edge),
BW = 0.2 MHz,
824–849 MHz
880–915 MHz
––4– dBm
GSM DCS 1800, PCS 1900 (std/edge),
BW = 0.2 MHz,
1710–1785 MHz
1850–1910 MHz
–12– dBm
WCDMA: II(I), III (IV, X),
BW = 5 MHz,
1850–1980 MHz (1920–1980 MHz),
1710–1785 MHz (1710–1755 MHz,
1710–1770 MHz)
–12– dBm
Table 32: FM Receiver Specifications (Cont.)
Parameter ConditionsaMinimum Typical Maximum Units
FM Receiver SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 109
–WCDMA: V(VI), VIII, XII, XIII, XIV,
BW = 5 MHz,
824–849 MHz (830–840 MHz),
880–915 MHz
–1– dBm
CDMA2000, cdmaOne,
BW = 1.25 MHz,
824–849 MHz,
887–925 MHz,
776–794 MHz
––3– dBm
CDMA2000, cdmaOne,
BW = 1.25 MHz,
1850–1910 MHz,
1750–1780 MHz,
1920–1980 MHz
–12– dBm
Bluetooth, BW = 1 MHz,
2402–2480 MHz
–11– dBm
IEEE 802.11g/b, BW = 20 MHz,
2400–2483.5 MHz
–11– dBm
IEEE 802.11a, BW = 20 MHz,
4915–5825 MHz
–6– dBm
2500–2570 MHz Band 7 – 11 – dBm
2300–2400 MHz Band 40 – 11 – dBm
2570–2620 MHz Band 38 – 11 – dBm
2545–2575 MHz XGP Band – 11 – dBm
Tuning
Frequency step – 10 – – kHz
Settling time Single-frequency switch in any direction
to a frequency within the bands 88–
108 MHz or 76–90 MHz. Time
measured to within 5 kHz of the final
frequency.
– 150 – s
Search time Total time for an automatic search to
sweep from 88–108 MHz or 76–90 MHz
(and reverse direction) assuming no
channels are found.
––8 sec
General Audio
Audio output levelg– –14.5 – –12.5 dBFS
Maximum audio output
levelh
–––0dBFS
Audio DAC output levelg–72–88mVrms
Maximum DAC audio
output levelh
– – 333 – mVrms
Audio DAC output level
differencei
––1–1dB
Table 32: FM Receiver Specifications (Cont.)
Parameter ConditionsaMinimum Typical Maximum Units
FM Receiver SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 110
Left and right AC mute FM input signal fully muted with DAC
enabled
60 – – dB
Left and right hard mute FM input signal fully muted with DAC
disabled
80 – – dB
Soft mute attenuation and
start level
Muting is performed dynamically
proportional to the FM wanted input
signal C/N. The muting characteristic is
fully programmable. Refer to “Audio
Features” on page 62 for further details.
––– –
Maximum signal plus
noise-to-noise ratio
(S + N)/N, mono i
––68–dB
Maximum signal plus
noise-to-noise ratio
(S + N) ÷ N, stereog
––64–dB
Total harmonic distortion,
mono
Vin = 66 dBV EMF (2 mV EMF),
f = 75 kHz, fmod = 400 Hz
––1.5%
f = 75 kHz, fmod = 1 kHz – – –60 %
f = 75 kHz, fmod = 3 kHz – – 0.8 %
f = 100 kHz, fmod = 1 kHz – – 1.0 %
Total harmonic distortion,
stereo
Vin = 66 dBV EMF (2 mV EMF)
f = 67.5 kHz, fmod = 1 kHz, f
Pilot = 7.5 kHz, L = R
––1.5%
Audio spurious productsiRange from 300 Hz to 15 kHz, with
respect to 1 kHz tone
–––60dBc
Audio bandwidth, upper
(–3 dB point)
Vin = 66 dBV EMF (2 mV EMF)
f = 8 kHz, for 50 s
15 – – kHz
Audio bandwidth, lower
(–3 dB point)
––20Hz
Audio in-band ripple 100 Hz to 13 kHz,
Vin = 66 dBV EMF (2 mV EMF)
f = 8 kHz, for 50 s
–0.5 – 0.5 dB
De-emphasis time
constant tolerance
With respect to 50 and 75 s – – ±5 %
RSSI range With 1 dB resolution and ± 5 dB
accuracy at room temp
3–83dBV EMF
1.41 – 1.41E + 04 V EMF
–3 – 77 dBV
Stereo Decoder
Stereo channel
separation
Forced Stereo mode
Vin = 66 dBV EMF (2 mV EMF),
f = 67.5 kHz, fmod = 1 kHz,
f Pilot = 6.75 kHz
R = 0, L = 1
–48– dB
Table 32: FM Receiver Specifications (Cont.)
Parameter ConditionsaMinimum Typical Maximum Units
FM Receiver SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 111
Mono stereo blend and
switching
Blending and switching is dynamically
proportional to the FM wanted input
signal C/N. The blending and switching
characteristics are fully programmable.
Refer to “Audio Features” on page 62
for further details.
–
–– –
Pilot suppression Vin = 66 dBV EMF (2 mV EMF),
f = 75 kHz, fmod = 1 kHz
46 – – dB
Pause detection
Audio level at which a
pause is detected
Relative to 1 kHz tone, f = 22.5 kHz – – – –
Four values in 3 dB steps –21 – –12 dB
Audio pause duration Four values 20 – 40 ms
a. Following conditions are applied to all relevant tests unless otherwise indicated: Pre-emphasis and de-emphasis
of 50 us, R = L for mono, DAC Load > 20 k, BAF = 300 Hz to 15 kHz, and A-weighted filtering applied.
b. Contact Broadcom regarding applications that operate between 65 and 76 MHz.
c. Wanted Signal: f = 22.5 kHz, and fmod = 1 kHz.
d. Interferer: f = 22.5 kHz, and fmod = 1 kHz.
e. RDS sensitivity numbers are for 87.5–108 MHz only.
f. Vin = f = 32 kHz, fmod = 1 kHz, f Pilot = 7.5 kHz, and 95% of blocks decoded with no errors after correction
g. Vin = 66 dBV EMF (2 mV EMF), f = 22.5 kHz, fmod = 1 kHz, and f Pilot = 6.75 kHz.
h. Vin = 66 dBV EMF (2 mV EMF), f = 100 kHz, fmod = 1 kHz, and f Pilot = 6.75 kHz.
i. Vin = 66 dBV EMF (2 mV EMF), f = 22.5 kHz, and fmod = 1 kHz.
Table 32: FM Receiver Specifications (Cont.)
Parameter ConditionsaMinimum Typical Maximum Units
WLAN RF SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 112
Section 17: WLAN RF Specifications
Introduction
The BCM43455 includes an integrated dual-band direct conversion radio that supports the 2.4 GHz and the
5 GHz bands. This section describes the RF characteristics of the 2.4 GHz and 5 GHz radio.
Unless otherwise stated, limit values apply for the conditions specified in Table 25: “Environmental Ratings,” on
page 98 and Table 27: “Recommended Operating Conditions and DC Characteristics,” on page 99. Typical
values apply for the following conditions:
• VBAT = 3.6V
• Ambient temperature +25°C
Figure 33: Port Locations for WLAN Testing
Note: Values in this section of the data sheet are design goals and are subject to change based on device
characterization results.
Note: Unless otherwise defined, all WLAN specifications are provided at the chip port.
Optional
Filter
BT
PA
2G
PA
LNA
5G
LNA
2G
5G
PA
Diplexer
Chip
Port
Antenna
Port
Antenna
Port
2.4G Configured with iTR
RF Port
Optional Filter
BT
PA
2G
PA
LNA
5G
LNA
2G
5G
PA
Diplexer
RF Port
Chip
Port
2.4G Configured with eTR
Chip
Port
Chip
Port
Chip
Port
Chip
Port
Chip
Port
Chip
Port
RF Port
2.4 GHz Band General RF SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 113
2.4 GHz Band General RF Specifications
WLAN 2.4 GHz Receiver Performance Specifications
Table 33: 2.4 GHz Band General RF Specifications
Item Condition Minimum Typical Maximum Unit
TX/RX switch time Including TX ramp down – – 5 µs
RX/TX switch time Including TX ramp up – – 2 µs
Power-up and power-down ramp
time
DSSS/CCK modulations – – <2 µs
Note: The specifications shown in the following table are provided at the chip port, unless otherwise
defined.
Table 34: WLAN 2.4 GHz Receiver Performance Specifications
Parameter Condition/Notes Minimum Typical Maximum Unit
Frequency range – 2400 – 2500 MHz
RX sensitivity IEEE 802.11b
(8% PER for 1024 octet
PSDU)
1 Mbps DSSS – –98.7 – dBm
2 Mbps DSSS – –96.0 – dBm
5.5 Mbps DSSS – –94.4 – dBm
11 Mbps DSSS – –90.7 – dBm
RX sensitivity IEEE 802.11g
(10% PER for 1024 octet
PSDU)
6 Mbps OFDM – –95.3 – dBm
9 Mbps OFDM – –94.3 – dBm
12 Mbps OFDM – –93.5 – dBm
18 Mbps OFDM – –90.9 – dBm
24 Mbps OFDM – –87.7 – dBm
36 Mbps OFDM – –84.4 – dBm
48 Mbps OFDM – –79.6 – dBm
54 Mbps OFDM – –78.2 – dBm
RX sensitivity IEEE 802.11n
(10% PER for 4096 octet
PSDU) a Defined for default
parameters: 800 ns GI and
non-STBC.
20 MHz channel spacing for all MCS rates
MCS0 – –94.8 – dBm
MCS1 – –92.3 – dBm
MCS2 – –89.8 – dBm
MCS3 – –86.4 – dBm
MCS4 – –83.3 – dBm
MCS5 – –78.6 – dBm
MCS6 – –76.7 – dBm
MCS7 – –74.7 – dBm
WLAN 2.4 GHz Receiver Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 114
RX sensitivity
IEEE 802.11ac
(10% PER for 4096 octet
PSDU) b Defined for default
parameters: 800 ns GI and
non-STBC
20 MHz channel spacing for all MCS rates
MCS0 – –95.0 – dBm
MCS1 – –92.3 – dBm
MCS2 – –90.1 – dBm
MCS3 – –87.0 – dBm
MCS4 – –83.6 – dBm
MCS5 – –78.7 – dBm
MCS6 – –76.8 – dBm
MCS7 – –75.9 – dBm
MCS8 – –71.5 – dBm
RX sensitivity IEEE
802.11ac with LDPC (10%
PER for 4096 octet PSDU)
at RF port. Defined for
default parameters: 800 ns
GI, LDPC coding, and non-
STBC.
20 MHz channel spacing for all MCS rates
MCS7 – –77.8 – dBm
MCS8 – –74.0 – dBm
MCS9 – –72.0 – dBm
Table 34: WLAN 2.4 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
WLAN 2.4 GHz Receiver Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 115
Blocking level for 3 dB RX
sensitivity degradation
(without external filtering)c
776–794 MHz (CDMA2000):
Blocker frequency = 794 MHz – –16 – dBm
824–849 MHzd (cdmaOne):
Blocker frequency = 849 MHz – –11 – dBm
824–849 MHz (GSM850):
Blocker frequency = 849 MHz – –11 – dBm
880–915 MHz (E-GSM):
Blocker frequency = 915 MHz – –11 – dBm
1710–1785 MHz (GSM1800):
Blocker frequency = 1785 MHz – –12 – dBm
1850–1910 MHz (GSM1900):
Blocker frequency = 1910 MHz – –13 – dBm
1850–1910 MHz (cdmaOne):
Blocker frequency = 1910 MHz – –5 – dBm
1850–1910 MHz (WCDMA):
Blocker frequency = 1910 MHz – –19 – dBm
1920–1980 MHz (WCDMA):
Blocker frequency = 1980 MHz – –19 – dBm
2300–2400 MHz (LTE band 40)
Blocker frequency = 2300 MHz – –29 – dBm
Blocker frequency = 2365 MHz – –35 – dBm
2500–2570 MHz (LTE band 7):
Blocker frequency = 2505 MHz – –39 – dBm
Blocker frequency = 2565 MHz – –35 – dBm
2570–2620 MHz (LTE band 38):
Blocker frequency = 2575 MHz – –35 – dBm
2496-2690 MHz (LTE band 41):
Blocker frequency = 2501 MHz – –42 – dBm
Blocker frequency = 2685 MHz – –17 – dBm
2545–2575 MHz (XGP Band):
Blocker frequency = 2550 MHz – –33 – dBm
In-band static CW jammer
immunity
(fc – 8 MHz < fcw < + 8 MHz)
RX PER < 1%, 54 Mbps OFDM,
1000 octet PSDU for:
(RxSens + 23 dB < Rxlevel < max.
input level)
–80 – – dBm
Input In-Band IP3 Maximum LNA gain – –10 – dBm
Minimum LNA gain – 15 – dBm
Table 34: WLAN 2.4 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
WLAN 2.4 GHz Receiver Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 116
Maximum Receive Level
@ 2.4 GHz
@ 1, 2 Mbps (8% PER, 1024 octets) –3.5 – – dBm
@ 5.5, 11 Mbps (8% PER, 1024
octets)
–9.5 – – dBm
@ 6–54 Mbps (10% PER, 1024
octets)
–9.5 – – dBm
@ MCS0–MCS7 rates (10% PER,
4095 octets)
–9.5 – – dBm
@ MCS8–MCS9 rates (10% PER,
4095 octets)
–11.5 – – dBm
Adjacent channel rejection-
DSSS
(Difference between
interfering and desired
signal at 8% PER for 1024
octet PSDU with desired
signal level as specified in
Condition/Notes)
Desired and interfering signal 30 MHz apart
1 Mbps DSSS –74 dBm 35 – – dB
2 Mbps DSSS –74 dBm 35 – – dB
Desired and interfering signal 25 MHz apart
5.5 Mbps
DSSS
–70 dBm 35 – – dB
11 Mbps
DSSS
–70 dBm 35 – – dB
Adjacent channel rejection-
OFDM
(Difference between
interfering and desired
signal (25 MHz apart) at
10% PER for 1024 octet
PSDU with desired signal
level as specified in
Condition/Notes)
6 Mbps OFDM –79 dBm 16 – – dB
9 Mbps OFDM –78 dBm 15 – – dB
12 Mbps OFDM –76 dBm 13 – – dB
18 Mbps OFDM –74 dBm 11 – – dB
24 Mbps OFDM –71 dBm 8 – – dB
36 Mbps OFDM –67 dBm 4 – – dB
48 Mbps OFDM –63 dBm 0 – – dB
54 Mbps OFDM –62 dBm –1 – – dB
Adjacent channel rejection
MCS0–MCS9 (Difference
between interfering and
desired signal (25 MHz
apart) at 10% PER for 4096
octet PSDU with desired
signal level as specified in
Condition/Notes)
MCS0 –79 dBm 16 – – dB
MCS1 –76 dBm 13 – – dB
MCS2 –74 dBm 11 – – dB
MCS3 –71 dBm 8 – – dB
MCS4 –67 dBm 4 – – dB
MCS5 –63 dBm 0 – – dB
MCS6 –62 dBm –1 – – dB
MCS7 –61 dBm –2 – – dB
MCS8 –59 dBm –4 – – dB
MCS9 –57 dBm –6 – – dB
Maximum receiver gain – – – 70 – dB
Gain control step – – – 3 – dB
RSSI accuracyeRange –95f dBm to –30 dBm –5 – 5 dB
Range above –30 dBm –8 – 8 dB
Return loss Zo = 50, across the dynamic range 10 11.5 13 dB
Receiver cascaded noise
figure
At maximum gain – 4 – dB
Table 34: WLAN 2.4 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
WLAN 2.4 GHz Transmitter Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 117
WLAN 2.4 GHz Transmitter Performance Specifications
a. Sensitivity degradations for alternate settings in MCS modes. SGI: 2 dB drop.
b. Sensitivity degradations for alternate settings in MCS modes. SGI: 2 dB drop.
c. The cellular standard listed for each band indicates the type of modulation used to generate the interfering signal
in that band for the purpose of this test. It is not intended to indicate any specific usage of each band in any
specific country.
d. The blocking levels are valid for channels 1 to 11. (For higher channels, the performance may be lower due to
third harmonic signals (3 × 824 MHz) falling within band.)
e. The minimum and maximum values shown have a 95% confidence level.
f. –95 dBm with calibration at time of manufacture, –92 dBm without calibration.
Note: Unless otherwise noted, the values shown in the following table are provided at the WLAN chip
port output.
Table 35: WLAN 2.4 GHz Transmitter Performance Specifications
Parameter Condition/Notes Minimum Typical Maximum Unit
Frequency range – 2400 – 2500 MHz
Transmitted power in
cellular and FM bands (at
+21 dBm, 100% duty cycle,
1 Mbps CCK) a
776-794 MHz (CDMA2000) – –164 – dBm/Hz
869–960 MHz (cdmaOne,
GSM850)
– –163 – dBm/Hz
1450–1495 (DAB) – –153.6 – dBm/Hz
1570–1580 MHz (GPS) – –151.2 – dBm/Hz
1592–1610 MHz (GLONASS) – –150.4 – dBm/Hz
1710–1800 (DSC-1800-Uplink) – –145 – dBm/Hz
1805–1880 MHz (GSM 1800) – –139 – dBm/Hz
1850–1910 MHz (GSM 1900) – –139 – dBm/Hz
1910–1930 MHz (TDSCDMA,LTE) – –140 – dBm/Hz
1930–1990 MHz (GSM1900,
cdmaOne, WCDMA)
– –128 – dBm/Hz
2010–2075 MHz (TDSCDMA) – –131 – dBm/Hz
2110–2170 MHz (WCDMA) – –125 – dBm/Hz
2305–2370 (LTE band 40) – –95 – dBm/Hz
2370–2400 (LTE band 40) – –80 – dBm/Hz
2496-2530 (LTE band 41) – –90 – dBm/Hz
2530-2560 (LTE band 41) – –110 – dBm/Hz
2570-2690 (LTE band 41) – –116 – dBm/Hz
5000-5900 (WLAN 5G) – –155 – dBm/Hz
WLAN 5 GHz Receiver Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 118
WLAN 5 GHz Receiver Performance Specifications
EVM Does Not Exceed
TX power at the chip port
for highest power level
setting at 25°C and
VBAT = 3.6V with spectral
mask and EVM compliance
802.11b
(DSSS/CCK)
–9 dB – 21.5 – dBm
OFDM, BPSK –8 dB – 20 – dBm
OFDM, 64QAM –25 dB – 19 – dBm
MCS7 –27 dB – 19 – dBm
MCS8 –30 dB – 17 – dBm
Phase noise 37.4 MHz crystal, integrated from
10 kHz to 10 MHz
– 0.45 – Degrees
TX power control dynamic
range
–10––dB
Closed-loop TX power
variation at highest
power level setting
Across full temperature and
voltage range. Applies to 10 dBm
to 20 dBm output power range.
––±1.5dB
Carrier suppression – 15 – – dBc
Gain control step – – 0.25 – dB
Return loss at Chip port TX Zo = 50–6–dB
a. The cellular standards listed indicate only typical usages of that band in some countries. Other standards may
also be used within those bands.
Note: Unless otherwise noted, the values shown in the following table are provided at the chip port
input.
Table 36: WLAN 5 GHz Receiver Performance Specifications
Parameter Condition/Notes Minimum Typical Maximum Unit
Frequency range – 4900 – 5845 MHz
RX sensitivity a
IEEE 802.11a (10% PER
for 1000 octet PSDU)
6 Mbps OFDM – –94.5 – dBm
9 Mbps OFDM – –93.5 – dBm
12 Mbps OFDM – –92.7 – dBm
18 Mbps OFDM – –90.1 – dBm
24 Mbps OFDM – –86.9 – dBm
36 Mbps OFDM – –83.6 – dBm
48 Mbps OFDM – –78.6 – dBm
54 Mbps OFDM – –77.4 – dBm
Table 35: WLAN 2.4 GHz Transmitter Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
WLAN 5 GHz Receiver Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 119
RX sensitivity a
IEEE 802.11n (10% PER
for 4096 octet PSDU)
Defined for default
parameters: 800 ns GI
and non-STBC.
20 MHz channel spacing for all MCS rates
MCS0 – –94.0 – dBm
MCS1 – –91.5 – dBm
MCS2 – –89.0 – dBm
MCS3 – –85.6 – dBm
MCS4 – –82.5 – dBm
MCS5 – –77.8 – dBm
MCS6 – –75.9 – dBm
MCS7 – –73.9 – dBm
RX sensitivity a
IEEE 802.11n (10% PER
for 4096 octet PSDU)
Defined for default
parameters: 800 ns GI
and non-STBC.
40 MHz channel spacing for all MCS rates
MCS0 – –92.0 – dBm
MCS1 – –89.0 – dBm
MCS2 – –86.5 – dBm
MCS3 – –83.2 – dBm
MCS4 – –79.9 – dBm
MCS5 – –75.3 – dBm
MCS6 – –73.8 – dBm
MCS7 – –72.2 – dBm
RX sensitivity a
IEEE 802.11ac (10%
PER for 4096 octet
PSDU)
Defined for default
parameters: 800 ns GI
and non-STBC.
20 MHz channel spacing for all MCS rates
MCS0 – –94.2 – dBm
MCS1 – –91.5 – dBm
MCS2 – –89.3 – dBm
MCS3 – –86.2 – dBm
MCS4 – –82.8 – dBm
MCS5 – –77.9 – dBm
MCS6 – –76.0 – dBm
MCS7 – –75.1 – dBm
MCS8 – –70.7 – dBm
RX sensitivity a
IEEE 802.11ac (10%
PER for 4096 octet
PSDU)
Defined for default
parameters: 800 ns GI
and non-STBC.
40 MHz channel spacing for all MCS rates
MCS0 – –92.3 – dBm
MCS1 – –89.3 – dBm
MCS2 – –86.9 – dBm
MCS3 – –83.6 – dBm
MCS4 – –80.2 – dBm
MCS5 – –75.6 – dBm
MCS6 – –74.0 – dBm
MCS7 – –72.6 – dBm
MCS8 – –68.3 – dBm
MCS9 – –66.7 – dBm
Table 36: WLAN 5 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
WLAN 5 GHz Receiver Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 120
RX sensitivity a
IEEE 802.11ac (10%
PER for 4096 octet
PSDU)
Defined for default
parameters: 800 ns GI
and non-STBC.
80 MHz channel spacing for all MCS rates
MCS0 – –89.0 – dBm
MCS1 – –86.0 – dBm
MCS2 – –83.3 – dBm
MCS3 – –80.1 – dBm
MCS4 – –76.8 – dBm
MCS5 – –72.2 – dBm
MCS6 – –70.9 – dBm
MCS7 – –69.2 – dBm
MCS8 – –65.2 – dBm
MCS9 – –63.6 – dBm
RX sensitivity a
IEEE 802.11ac 20/40/80
MHz channel spacing
with LDPC (10% PER for
4096 octet PSDU) at RF
port.
Defined for default
parameters: 800 ns GI,
LDPC coding and non-
STBC.
MCS7 20 MHz – –76.8 – dBm
MCS8 20 MHz – –72.9 – dBm
MCS9 20 MHz – –70.7 – dBm
MCS7 40 MHz – –74.8 – dBm
MCS8 40 MHz – –70.9 – dBm
MCS9 40 MHz – –68.9 – dBm
MCS7 80 MHz – –71.5 – dBm
MCS8 80 MHz – –67.6 – dBm
MCS9 80 MHz – –65.5 – dBm
Table 36: WLAN 5 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
WLAN 5 GHz Receiver Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 121
Blocking level for 3 dB RX
sensitivity degradation
(without external
filtering)b
776–794 MHz (CDMA2000):
Blocker frequency =
794 MHz
––21– dBm
824–849 MHzc (cdmaOne):
Blocker frequency =
849 MHz
––20– dBm
824–849 MHz (GSM850):
Blocker frequency =
849 MHz
––10– dBm
880–915 MHz (E-GSM):
Blocker frequency =
915 MHz
––12– dBm
1710–1785 MHz (GSM1800):
Blocker frequency =
1785 MHz
––13– dBm
1850–1910 MHz (GSM1900):
Blocker frequency =
1910 MHz
––13– dBm
1850–1910 MHz (cdmaOne):
Blocker frequency =
1910 MHz
––18– dBm
1850–1910 MHz (WCDMA):
Blocker frequency =
1910 MHz
––20– dBm
1920–1980 MHz (WCDMA):
Blocker frequency =
1980 MHz
––20– dBm
2300–2400 MHz (LTE band 40)
Blocker frequency =
2395 MHz
––19– dBm
2500–2570 MHz (LTE band 7):
Blocker frequency =
2565 MHz
––16– dBm
2570–2620 MHz (LTE band 38):
Blocker frequency =
2615 MHz
––16– dBm
2496-2690 MHz (LTE band 41):
Blocker frequency =
2685 MHz
––16– dBm
2545–2575 MHz (XGP Band):
Blocker frequency =
2570 MHz
––18– dBm
Table 36: WLAN 5 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
WLAN 5 GHz Receiver Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 122
Input In-Band IP3 Maximum LNA gain – –11 – dBm
Minimum LNA gain – 5 – dBm
Maximum receive level @
5.24 GHz
@ 6, 9, 12 Mbps –9.5 – – dBm
@ 18, 24, 36, 48, 54 Mbps –14.5 – – dBm
Adjacent channel
rejection
(Difference between
interfering and desired
signal (20 MHz apart) at
10% PER for 1000 octet
PSDU with desired signal
level as specified in
Condition/Notes)
6 Mbps
OFDM
–79 dBm 16 – – dB
9 Mbps
OFDM
–78 dBm 15 – – dB
12 Mbps
OFDM
–76 dBm 13 – – dB
18 Mbps
OFDM
–74 dBm 11 – – dB
24 Mbps
OFDM
–71 dBm 8 – – dB
36 Mbps
OFDM
–67 dBm 4 – – dB
48 Mbps
OFDM
–63 dBm 0 – – dB
54 Mbps
OFDM
–62 dBm –1 – – dB
65 Mbps
OFDM
–61 dBm –2 – – dB
Alternate adjacent
channel rejection
(Difference between
interfering and desired
signal (40 MHz apart) at
10% PER for 1000d octet
PSDU with desired signal
level as specified in
Condition/Notes)
6 Mbps
OFDM
–78.5 dBm 32 – – dB
9 Mbps
OFDM
–77.5 dBm 31 – – dB
12 Mbps
OFDM
–75.5 dBm 29 – – dB
18 Mbps
OFDM
–73.5 dBm 27 – – dB
24 Mbps
OFDM
–70.5 dBm 24 – – dB
36 Mbps
OFDM
–66.5 dBm 20 – – dB
48 Mbps
OFDM
–62.5 dBm 16 – – dB
54 Mbps
OFDM
–61.5 dBm 15 – – dB
65 Mbps
OFDM
–60.5 dBm 14 – – dB
Maximum receiver gain – – 65 – dB
Gain control step – – 3 – dB
Table 36: WLAN 5 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
WLAN 5 GHz Receiver Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 123
RSSI accuracyeRange –98 dBm to –30
dBm
–5 – 5 dB
Range above –30 dBm –8 – 8 dB
Return loss Zo = 50, across the
dynamic range
10 – 13 dB
Receiver cascaded noise
figure
At maximum gain – 4 – dB
a. For PCIE derate 5G RX sensitivity by 1.5 dB
b. The cellular standard listed for each band indicates the type of modulation used to generate the interfering signal
in that band for the purpose of this test. It is not intended to indicate any specific usage of each band in any
specific country.
c. The blocking levels are valid for channels 1 to 11. (For higher channels, the performance may be lower due to
third harmonic signals (3 × 824 MHz) falling within band.)
d. For 65 Mbps, the size is 4096.
e. The minimum and maximum values shown have a 95% confidence level.
Table 36: WLAN 5 GHz Receiver Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximum Unit
WLAN 5 GHz Transmitter Performance SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 124
WLAN 5 GHz Transmitter Performance Specifications
Note: Unless otherwise noted, the values shown in the following table are provided at the WLAN chip
port output.
Table 37: WLAN 5 GHz Transmitter Performance Specifications
Parameter Condition/Notes Minimum Typical Maximu
mUnit
Frequency range – 4900 – 5845 MHz
Transmitted power in
cellular and FM bands (at
+18.5 dBm, 100% duty
cycle, 6 Mbps OFDM) a
776–794 MHz (CDMA2000) – –164 – dBm/Hz
869–960 MHz (cdmaOne, GSM850) – –166 – dBm/Hz
1450–1495 (DAB) – –166 – dBm/Hz
1570–1580 MHz (GPS) – –166 – dBm/Hz
1592–1610 MHz (GLONASS) – –165.5 – dBm/Hz
1710–1800(DSC-1800-Uplink) – –135 – dBm/Hz
1805–1880 MHz (GSM 1800) – –165 – dBm/Hz
1850–1910 MHz (GSM 1900) – –165 – dBm/Hz
1910–1930 MHz (TDSCDMA, LTE) – –165 – dBm/Hz
1930–1990 MHz (GSM1900,
cdmaOne, WCDMA)
––165–dBm/Hz
2010–2075 MHz (TDSCDMA) – –164.5 – dBm/Hz
2110–2170 MHz (WCDMA) – –164 – dBm/Hz
2305–2370 (LTE band 40) – –160 – dBm/Hz
2370–2400 (LTE band 40) – –163 – dBm/Hz
2400–2500 (WLAN 2G) – –160 – dBm/Hz
2496–2530 (LTE band 41) – –161.5 – dBm/Hz
2530–2560 (LTE band 41) – –161.5 – dBm/Hz
2570–2690 (LTE band 41) – –161 – dBm/Hz
EVM Does Not Exceed
TX power at the chip port
for highest power level
setting at 25°C and
VBAT = 3.6V with spectral
mask and EVM
compliance
OFDM, BPSK –8 dB – 21.5 – dBm
OFDM, 64QAM –25 dB – 19 – dBm
MCS7 –27 dB – 19 – dBm
MCS9 –32 dB – 17 – dBm
General Spurious Emissions SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 125
General Spurious Emissions Specifications
This section provides the TX and RX spurious emissions specifications for both the WLAN 2.4 GHz and 5 GHz
bands. The recommended spectrum analyzer settings for the spurious emissions specifications are provided in
Ta b l e 3 8 .
Transmitter Spurious Emissions Specifications
The TX spurious emissions specifications in this subsection are based on the following definitions:
• AFE = VCO/16 for 2G channels
• AFE = VCO/18 for 5G 20 MHz channels
• AFE = VCO/9 for 5G 40 MHz channels
• AFE = VCO/6 for 5G 80 MHz channels
• LO = Channel frequency
Phase noise 37.4 MHz Crystal, Integrated from
10 kHz to 10 MHz
– 0.5 – Degrees
TX power control dynamic
range
–10––dB
Closed loop TX power
variation at highest power
level setting
Across full-temperature and voltage
range. Applies across 10 to 20 dBm
output power range.
––±2.0dB
Carrier suppression – 15 – – dBc
Gain control step – – 0.25 – dB
Return loss Zo = 50–6–dB
a. The cellular standards listed indicate only typical usages of that band in some countries. Other standards may
also be used within those bands.
Table 38: Recommended Spectrum Analyzer Settings
Parameter Setting
Resolution Bandwidth (RBW): 1 MHz
Video Bandwidth (VBW): 1 MHz
Sweep: Auto
Span: 100 MHz
Detector: Maximum Peak
Trace: Maximum Hold
Modulation: OFDM (Orthogonal Frequency-division Multiplexing)
Table 37: WLAN 5 GHz Transmitter Performance Specifications (Cont.)
Parameter Condition/Notes Minimum Typical Maximu
mUnit
General Spurious Emissions SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 126
2.4 GHz Band Spurious Emissions
20 MHz Channel Spacing
Note: Possible AFE combinations are as follows. The AFE=VCO/16 specifications for channel 2442
are listed in Ta b l e 3 9 .
Table 39: 2.4 GHz Band, 20 MHz Channel Spacing TX Spurious Emissions Specificationsa
a. VCO = 1.5 × Fch, where Fch is the center frequency of the channel.
Spurious Frequency Power (dBm)
Frequency (Fch; MHz) Channel 2442
Typical (dBm) Maximum (dBm)
HD2 21 –22.78 –
HD3 21 –19.54 –
HD4 21 –41.79 –
HD5 21 –61.78 –
VCO – LO 21 –55.13 –
VCO + LO 21 –63.40 –
VCO 21 –48.56 –
LO + AFE 21 –59.2 –
LO-AFE 21 –59.3 –
LO + AFE × 2 21 –68.2 –
LO – AFE × 2 21 –67.4 –
LO + XTAL × 2 21 –56.2 –
LO – XTAL × 2 21 –56.3 –
LO + XTAL × 4 21 –57.5 –
LO – XTAL × 4 21 –56.7 –
LO + XTAL × 8 21 –59.1 –
LO – XTAL × 8 21 –67.2 –
General Spurious Emissions SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 127
5 GHz Band Spurious Emissions
20 MHz Channel Spacing
Note: Possible AFE combinations are as follows. The AFE=VCO/18 specifications for channels 5180,
5500, and 5825 are listed in Ta b l e 4 0 .
Table 40: 5 GHz Band, 20 MHz Channel Spacing TX Spurious Emissions Specifications
Spurious
Frequency Power
(dBm)
CH5180a
a. VCO = (2/3) × Fch, where Fch is the center frequency of the channel.
CH5500aCH5825a
Typ.
(dBm) Max.
(dBm) Typ.
(dBm) Max.
(dBm) Typ.
(dBm) Max.
(dBm)
HD2 19 –29.33 – –32.56 – –33.14 –
HD3 19 –39.71 – –38.93 – –39.87 –
VCO 19 –49.03 – –48.35 – –46.70 –
VCO × 2 19 –55.64 – –60.40 – –64.77 –
LO + VCO 19 –63.94 – –62.80 – –62.16 –
LO – VCO 19 –81.58 – –72.56 – –70.58 –
LO – AFE 19 –62.1 – –63.3 – –60.4 –
LO + AFE 19 –57.8 – –59.6 – –60.6 –
LO – XTAL × 4 19 –60.1 – –60.1 – –58.7 –
LO + XTAL × 4 19 –57.2 – –57.4 – –58.2 –
LO – XTAL × 6 19 –63.4 – –59.3 – –61.1 –
LO + XTAL × 6 19 –60.2 – –58.9 – –60.8 –
LO – XTAL × 8 19 –66.1 – –67.3 – –63.8 –
LO + XTAL × 8 19 –64.2 – –63.8 – –65.8 –
AFE × 1219––––––
General Spurious Emissions SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 128
40 MHz Channel Spacing
Note: Possible AFE combinations are as follows. The AFE=VCO/9 specifications for channels 5190,
5510, and 5795 are listed in Ta b l e 4 1 .
Table 41: 5 GHz Band, 40 MHz Channel Spacing TX Spurious Emissions Specifications
Spurious
Frequency Power
(dBm)
CH5190ma
a. VCO = (2/3) × Fch, where Fch is the center frequency of the channel.
CH5510maCH5795ma
Typ.
(dBm) Max.
(dBm) Typ.
(dBm) Max.
(dBm) Typ.
(dBm) Max.
(dBm)
HD2 19 –33.43 – –35.53 – –36.49 –
HD3 19 –41.81 – –42.13 – –42.33 –
VCO 19 –48.36 – –47.65 – –46.93 –
VCO × 2 19 –55.87 – –59.26 – –64.45 –
LO + VCO 19 –65.58 – –64.96 – – –
LO – VCO19––––––
LO – AFE 19 –65.3 – –67.2 – –65.2 –
LO + AFE 19 –63.2 – –64.3 – –67.3 –
LO – XTAL × 4 19 –59.3 – –59.7 – –59.6 –
LO + XTAL × 4 19 –58.3 – –57.4 – –57.9 –
LO – XTAL × 6 19 –64.1 – –63.4 – –63.2 –
LO + XTAL × 6 19 –61.5 – –59.4 – –61.2 –
LO – XTAL × 8 19 –66.3 – –67.1 – –64.3 –
LO + XTAL × 8 19 –63.8 – –64.7 – –61.2 –
AFE × 12 19 –65.2 – –66.3 – –65.4 –
General Spurious Emissions SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 129
80 MHz Channel Spacing
Receiver Spurious Emissions Specifications
Note: Possible AFE combinations are as follows. The AFE=VCO/6 specifications for channels 5210,
5530, and 5775 are listed in Ta b l e 4 2 .
Table 42: 5 GHz Band, 80 MHz Channel Spacing TX Spurious Emissions Specifications
Spurious Frequency Power
(dBm)
CH5210qa
a. VCO = (2/3) × Fch, where Fch is the center frequency of the channel.
CH5530qaCH5775qa
Typ.
(dBm) Max.
(dBm) Typ.
(dBm) Max.
(dBm) Typ.
(dBm) Max.
(dBm)
HD2 19 –36.28 – –39.59 – –41.02 –
HD3 19 –45.00 – –44.82 – –46.10 –
VCO 19 –48.00 – –47.34 – –46.01 –
VCO × 2 19 –57.04 – –62.82 – –66.84 –
LO + VCO 19 –66.66 – –66.11 – –66.40 –
LO – VCO 19 – –– –– –
LO – AFE 19 –68.5 – –67.8 – –66.9 –
LO + AFE 19 –63.8 – –66.3 – –68.6 –
LO – XTAL × 4 19 – –– –– –
LO + XTAL × 4 19 – – – – – –
LO – XTAL × 6 19 – –– –– –
LO + XTAL × 6 19 – – – – – –
LO – XTAL × 8 19 – –– –– –
LO + XTAL × 8 19 – – – – – –
AFE × 12 19 – – – – – –
Table 43: 2G and 5G General Receiver Spurious Emissions
Band Frequency Range Typical Maximum Unit
2G 2.4 GHz < f < 2.5 GHz –92 – dBm
3.6 GHz < f < 3.8 GHz –75.16 – dBm
5G 5150 MHz < f < 5850 MHz –70.4 – dBm
3.45 GHz < f < 3.9 GHz –59.2 – dBm
Internal Regulator Electrical SpecificationsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 130
Section 18: Internal Regulator Electrical
Specifications
Core Buck Switching Regulator
Note: Values in this data sheet are design goals and are subject to change based on device
characterization results.
Note: Functional operation is not guaranteed outside of the specification limits provided in this section.
Table 44: Core Buck Switching Regulator (CBUCK) Specifications
Specification Notes Min. Typ. Max. Unit
Input supply voltage (DC) DC voltage range inclusive of disturbances. 3.0 3.6 5.25a
a. The maximum continuous voltage is 5.25V. Voltages up to 6.0V for up to 10 seconds, cumulative duration, over
the lifetime of the device are allowed. Voltages as high as 5.0V for up to 250 seconds, cumulative duration, over
the lifetime of the device are allowed.
V
PWM mode switching
frequency
CCM, Load > 100 mA VBAT = 3.6V –4–MHz
PWM output current – – – 600 mA
Output current limit – – 1400 – mA
Output voltage range Programmable, 30 mV steps. Default = 1.35V 1.2 1.35 1.5 V
PWM output voltage DC
accuracy
Includes load and line regulation.
Forced PWM mode.
–4–4%
PWM ripple voltage, static Measure with 20 MHz bandwidth limit.
Static Load. Max. Ripple based on VBAT = 3.6V,
Vout = 1.35V, Fsw = 4 MHz, 2.2 H inductor L >
1.05 H, Cap + Board total-ESR < 20 m, Cout > 1.9
F, ESL<200 pH
–720mVpp
PWM mode peak efficiency Peak Efficiency at 200 mA load 78 86 – %
PFM mode efficiency 10 mA load current 70 80 – %
Start-up time from power
down
VIO already ON and steady. Time from REG_ON
rising edge to CLDO reaching 1.2V.
– 400 500 s
External inductor 0806 size, 2.2 µH, DCR=0.11, ACR=1.18 @
4MHz
–2.2–H
External output capacitor Ceramic, X5R, 0402, ESR <30 m at 4 MHz,
4.7 µF ±20%, 6.3V
2.0 4.7 10b
b. Total capacitance includes those connected at the far end of the active load.
F
External input capacitor For SR_VDDBATP5V pin, ceramic, X5R, 0603,
ESR < 30 m at 4 MHz, ±4.7uF ±20%, 6.3V 0.67b4.7 – F
Input supply voltage ramp-up
time
0 to 4.3V 40 – – s
3.3V LDO (LDO3P3)BCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 131
3.3V LDO (LDO3P3)
Table 45: LDO3P3 Specifications
Specification Notes Min. Typ. Max. Units
Input supply voltage, Vin Min. = Vo + 0.2V = 3.5V dropout voltage
requirement must be met under
maximum load for performance
specifications.
3.0 3.6 5.25a
a. The maximum continuous voltage is 5.25V. Voltages up to 6.0V for up to 10 seconds, cumulative duration, over
the lifetime of the device are allowed. Voltages as high as 5.0V for up to 250 seconds, cumulative duration, over
the lifetime of the device are allowed.
V
Output current – 0.001 – 450 mA
Nominal output voltage, VoDefault = 3.3V – 3.3 – V
Dropout voltage At max. load. – – 200 mV
Output voltage DC accuracy Includes line/load regulation. –5 – +5 %
Quiescent current No load – – 100 A
Line regulation Vin from (Vo + 0.2V) to 5.25V, max. load – – 3.5 mV/V
Load regulation load from 1 mA to 450 mA – – 0.3 mV/mA
PSRR Vin Vo + 0.2V,
Vo = 3.3V, Co = 4.7 F,
Max. load, 100 Hz to 100 kHz
20––dB
LDO turn-on time Chip already powered up. – 160 250 s
External output capacitor, CoCeramic, X5R, 0402,
(ESR: 5 m–240 m), ± 10%, 10V 1.0b
b. Minimum capacitor value refers to the residual capacitor value after taking into account the part-to-part
tolerance, DC-bias, temperature, and aging.
4.7 10 F
External input capacitor For SR_VDDBATA5V pin (shared with
Bandgap) Ceramic, X5R, 0402,
(ESR: 30m-200 m), ± 10%, 10V.
Not needed if sharing VBAT capacitor
4.7 F with SR_VDDBATP5V.
–4.7–F
2.5V LDO (BTLDO2P5)BCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 132
2.5V LDO (BTLDO2P5)
Table 46: BTLDO2P5 Specifications
Specification Notes Min. Typ. Max. Units
Input supply voltage Min. = 2.5V + 0.2V = 2.7V.
Dropout voltage requirement must be
met under maximum load for
performance specifications.
3.0 3.6 5.25a
a. The maximum continuous voltage is 5.25V. Voltages up to 6.0V for up to 10 seconds, cumulative duration, over
the lifetime of the device are allowed. Voltages as high as 5.0V for up to 250 seconds, cumulative duration, over
the lifetime of the device are allowed.
V
Nominal output voltage Default = 2.5V. – 2.5 – V
Output voltage programmability Range 2.2 2.5 2.8 V
Accuracy at any step (including line/
load regulation), load > 0.1 mA.
–5–5%
Dropout voltage At maximum load. – – 200 mV
Output current – 0.1 – 70 mA
Quiescent current No load. – 8 16 A
Maximum load at 70 mA. – 660 700 A
Leakage current Power-down mode. – 1.5 5 A
Line regulation Vin from (Vo + 0.2V) to 5.25V,
maximum load.
––3.5mV/V
Load regulation Load from 1 mA to 70 mA,
Vin = 3.6V.
––0.3mV/mA
PSRR Vin Vo + 0.2V, Vo = 2.5V, Co = 2.2 F,
maximum load, 100 Hz to 100 kHz.
20––dB
LDO turn-on time Chip already powered up. – – 150 s
In-rush current Vin = Vo + 0.15V to 5.25V, Co = 2.2 F,
No load.
– – 250 mA
External output capacitor, CoCeramic, X5R, 0402,
(ESR: 5m–240 m), ±10%, 10V 0.7b
b. The minimum value refers to the residual capacitor value after taking into account part-to-part tolerance, DC-
bias, temperature, and aging.
2.2 2.64 F
External input capacitor For SR_VDDBATA5V pin (shared with
Bandgap) ceramic, X5R, 0402,
(ESR: 30–200 m), ±10%, 10V.
Not needed if sharing VBAT 4.7 F
capacitor with SR_VDDBATP5V.
–4.7–F
CLDOBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 133
CLDO
Table 47: CLDO Specifications
Specification Notes Min. Typ. Max. Units
Input supply voltage, Vin Min. = 1.2 + 0.15V = 1.35V dropout voltage
requirement must be met under maximum
load.
1.3 1.35 1.5 V
Output current – 0.2 – 200 mA
Output voltage, VoProgrammable in 10 mV steps.
Default = 1.2.V
0.95 1.2 1.26 V
Dropout voltage At max. load – – 150 mV
Output voltage DC accuracy Includes line/load regulation –4 – +4 %
Quiescent current No load – 13 – A
200 mA load – 1.24 – mA
Line Regulation Vin from (Vo + 0.15V) to 1.5V, maximum load – – 5 mV/V
Load Regulation Load from 1 mA to 300 mA – 0.02 0.05 mV/mA
Leakage Current Power down – 5 20 A
Bypass mode – 1 3 A
PSRR @1 kHz, Vin 1.35V, Co = 4.7 F 20––dB
Start-up Time of PMU VIO up and steady. Time from the REG_ON
rising edge to the CLDO reaching 1.2V.
––700s
LDO Turn-on Time LDO turn-on time when rest of the chip is up – 140 180 s
External Output Capacitor,
Co
Total ESR: 5 m–240 m1.1a
a. Minimum capacitor value refers to the residual capacitor value after taking into account the part-to-part
tolerance, DC-bias, temperature, and aging.
2.2 – F
External Input Capacitor Only use an external input capacitor at the
VDD_LDO pin if it is not supplied from CBUCK
output.
–12.2F
LNLDOBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 134
LNLDO
Table 48: LNLDO Specifications
Specification Notes Min. Typ. Max. Units
Input supply voltage, Vin Min. VIN = VO + 0.15V = 1.35V (where VO =
1.2V)dropout voltage requirement must be
met under maximum load.
1.3 1.35 1.5 V
Output Current – 0.1 – 150 mA
Output Voltage, VoProgrammable in 25 mV steps.
Default = 1.2V
1.1 1.2 1.275 V
Dropout Voltage At maximum load – – 150 mV
Output Voltage DC Accuracy Includes line/load regulation –4 – +4 %
Quiescent current No load – 44 – A
Max. load – 970 990 A
Line Regulation Vin from (Vo + 0.1V) to 1.5V, 150 mA load – – 5 mV/V
Load Regulation Load from 1 mA to 150 mA – 0.02 0.05 mV/mA
Leakage Current Power-down – – 10 A
Output Noise @30 kHz, 60–150 mA load Co = 2.2 F
@100 kHz, 60–150 mA load Co = 2.2 F
– – 60
35
nV/rt Hz
nV/rt Hz
PSRR @ 1kHz, Input > 1.35V, Co= 2.2 F, V o =
1.2V
20 – – dB
LDO Turn-on Time LDO turn-on time when rest of chip is up – 140 180 s
External Output Capacitor,
Co
Total ESR (trace/capacitor):
5 m–240 m 0.5a
a. Minimum capacitor value refers to the residual capacitor value after taking into account the part-to-part
tolerance, DC-bias, temperature, and aging.
2.2 4.7 F
External Input Capacitor Only use an external input capacitor at the
VDD_LDO pin if it is not supplied from
CBUCK output.
Total ESR (trace/capacitor): 30 m–200 m
–12.2F
PCIe LDOBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 135
PCIe LDO
Table 49: PCIe LDO Specifications
Specification Notes Min. Typ. Max. Units
Input supply voltage, Vin Min. VIN = VO + 0.15V = 1.35V (where
VO = 1.2V)dropout voltage requirement
must be met under maximum load.
1.3 1.35 1.5 V
Output Current Peak load=80 mA. Average load=35 mA 0.1 – 55 mA
Output Voltage, VoProgrammable in 25 mV steps.
Default = 1.2V
1.1 1.2 1.275 V
Dropout Voltage At maximum load – – 150 mV
Output Voltage DC Accuracy Includes line/load regulation –4 – +4 %
Quiescent current No load – 10 12 A
55 mA load – 550 570 A
Line Regulation VIN from (VO + 0.1V) to 1.5V, 150 mA load – – 5 mV/V
Load Regulation Load from 1 mA to 150 mA – 0.02 0.05 mV/mA
Leakage Current Power-down – 5 20 A
Bypass mode – 0.02 1.5 A
Output Noise @30 kHz, 60–150 mA load Co = 2.2 F
@100 kHz, 60–150 mA load Co = 2.2 F
–– 60
35
nV/rt Hz
nV/rt Hz
PSRR @ 1kHz, Input > 1.35V, Co= 2.2 F,
Vo = 1.2V
20 – – dB
LDO Turn-on Time LDO turn-on time when balance of chip is up – 140 180 s
External Output Capacitor, Co Total ESR (trace/capacitor):
5 m–240 m 0.27a
a. Minimum capacitor value refers to the residual capacitor value after taking into account the part-to-part
tolerance, DC-bias, temperature, and aging.
0.47 – F
External Input Capacitor Only use an external input capacitor at the
VDD_LDO pin if it is not supplied from
CBUCK output.
Total ESR (trace/capacitor): 30 m–200 m
–12.2F
System Power ConsumptionBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 136
Section 19: System Power Consumption
WLAN Current Consumption
The tables in this subsection show the typical, total current consumed by the BCM43455. All values shown are
with the Bluetooth core in reset mode with Bluetooth off.
2.4 GHz Mode
Note: Values in this data sheet are design goals and are subject to change based on the results of
device characterization.
Note: Unless otherwise stated, these values apply for the conditions specified in
Table 27: “Recommended Operating Conditions and DC Characteristics,” on page 99.
Table 50: 2.4 GHz Mode WLAN Power Consumption
Mode
VBAT = 3.6V, VDDIO = 1.8V, TA25°C
VBAT, mA VIO, uAa
Sleep Modes
Radio off b0.006 5
Sleep c0.020 200
IEEE Power Save: DTIM = 1, single RX d1.25 200
IEEE Power Save: DTIM = 3, single RX 0.45 200
Active RX Modes
Continuous RX mode: MCS7, HT20, 1SS e, f55 60
CRS: HT20 g50 60
WLAN Current ConsumptionBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 137
5 GHz Mode
Active TX Modes – Internal PA
Continuous TX mode: 1 Mbps @ 21.5 dBm h400 60
Continuous TX mode: MCS7, HT20, 1SS, 1 TX @ 19 dBm h350 60
a. VIO is specified with all pins idle (not switching) and not driving any loads.
b. WL_REG_ON and BT_REG_ON are both low. All supplies are present.
c. Idle, not associated, or inter-beacon.
d. Beacon Interval = 102.4 ms. Beacon duration = 1 ms @ 1 Mbps. Average current over 3× DTIM intervals.
e. Duty cycle is 100%. Carrier sense (CS) detect/packet receive.
f. Measured using packet engine test mode.
g. Carrier sense (CCA) when no carrier present.
h. Duty cycle is 100%.
Table 51: 5 GHz Mode WLAN Power Consumption
Mode
VBAT = 3.6V, VDDIO = 1.8V, TA25°C
VBAT , mA VIO, uAa
Sleep Modes
Radio off b0.006 5
Sleep c0.025 200
IEEE Power Save: DTIM = 1, single RX d1.1 200
IEEE Power Save: DTIM = 3, single RX 0.4 200
Active RX Modes
Continuous RX mode: MCS7, HT20, 1SS e, f74 60
Continuous RX mode: MCS7, HT40, 1SS e, f 82 60
Continuous RX mode: MCS9, HT40, 1SS e, f 86 60
Continuous RX mode: MCS9, HT80, 1SS e, f 117 60
CRS: HT20 g70 60
CRS: HT40 g79 60
CRS: HT80 g100 60
Active TX Modes – Internal PA
Continuous TX mode: MCS7, HT20, 1SS, 1 TX @ 19 dBm h330 60
Continuous TX mode: MCS7, HT40, 1SS, 1 TX @ 19 dBm h340 60
Continuous TX mode: MCS9, HT40, 1SS, 1 TX @ 16 dBm h270 60
Continuous TX mode: MCS9, HT80, 1SS, 1 TX @ 16 dBm h270 60
Table 50: 2.4 GHz Mode WLAN Power Consumption (Cont.)
Mode
VBAT = 3.6V, VDDIO = 1.8V, TA25°C
VBAT, mA VIO, uAa
Bluetooth Current ConsumptionBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 138
Bluetooth Current Consumption
The Bluetooth and BLE current consumption measurements are shown in Table 52.
a. VIO is specified with all pins idle (not switching) and not driving any loads.
b. WL_REG_ON and BT_REG_ON are both low. All supplies present.
c. Idle, not associated, or inter-beacon.
d. Beacon Interval = 102.4 ms. Beacon duration = 1ms @ 1Mbps. Average current over 3x DTIM intervals.
e. Duty cycle is 100%. Carrier sense (CS) detect/packet receive.
f. Measured using packet engine test mode.
g. Carrier sense (CCA) when no carrier present.
h. Duty cycle is 100%.
Note: The WLAN core is in reset (WLAN_REG_ON = low) for all measurements provided in Ta b le 52.
Note: The BT current consumption numbers are measured based on GFSK TX output power =
10 dBm.
Table 52: Bluetooth and BLE Current Consumption
Operating Mode VBAT VDDIO Units
Sleep 6 295 µA
Standard 1.28s Inquiry Scan 153 294 µA
500 ms Sniff Master 216 291 µA
DM1/DH1 Master 23.9 0.155 mA
DM3/DH3 Master 29.1 0.164 mA
DM5/DH5 Master 29.8 0.166 mA
3DH5/3DH1 Master 24.8 0.210 mA
SCO HV3 Master 11.5 0.166 mA
BLE Scana
a. No devices present. A 1.28 second interval with a scan window of 11.25 ms.
179 296 µA
BLE Adv—Unconnectable 1.00 sec 69 295 µA
BLE Connected 1 sec 1960 146 µA
Interface Timing and AC CharacteristicsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 139
Section 20: Interface Timing and AC
Characteristics
SDIO Timing
SDIO Default Mode Timing
SDIO default mode timing is shown by the combination of Figure 34 and Ta b l e 5 3 .
Figure 34: SDIO Bus Timing (Default Mode)
Table 53: SDIO Bus Timinga Parameters (Default Mode)
Parameter Symbol Minimum Typical Maximum Unit
SDIO CLK (All values are referred to minimum VIH and maximum VILb)
Frequency – Data Transfer mode fPP 0 – 25 MHz
Frequency – Identification mode fOD 0 – 400 kHz
Clock low time tWL 10 – – ns
Clock high time tWH 10 – – ns
Clock rise time tTLH – – 10 ns
Clock low time tTHL – – 10 ns
tWL tWH
fPP
tTHL
tISU
tTLH
tIH
tODLY
(max)
tODLY
(min)
Input
Output
SDIO_CLK
SDIO TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 140
Inputs: CMD, DAT (referenced to CLK)
Input setup time tISU5––ns
Input hold time tIH5––ns
Outputs: CMD, DAT (referenced to CLK)
Output delay time – Data Transfer mode tODLY 0 – 14 ns
Output delay time – Identification mode tODLY 0 – 50 ns
a. Timing is based on CL 40 pF load on CMD and Data.
b. Min (Vih) = 0.7 × VDDIO and max (Vil) = 0.2 × VDDIO.
Table 53: SDIO Bus Timinga Parameters (Default Mode) (Cont.)
Parameter Symbol Minimum Typical Maximum Unit
SDIO TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 141
SDIO High-Speed Mode Timing
SDIO high-speed mode timing is shown by the combination of Figure 35 and Ta b le 5 4 .
Figure 35: SDIO Bus Timing (High-Speed Mode)
Table 54: SDIO Bus Timinga Parameters (High-Speed Mode)
a. Timing is based on CL 40 pF load on CMD and Data.
Parameter Symbol Minimum Typical Maximum Unit
SDIO CLK (all values are referred to minimum VIH and maximum VILb)
b. Min (Vih) = 0.7 × VDDIO and max (Vil) = 0.2 × VDDIO.
Frequency – Data Transfer Mode fPP 0 – 50 MHz
Frequency – Identification Mode fOD 0 – 400 kHz
Clock low time tWL7––ns
Clock high time tWH7––ns
Clock rise time tTLH––3ns
Clock low time tTHL––3ns
Inputs: CMD, DAT (referenced to CLK) –––––
Input setup Time tISU6––ns
Input hold Time tIH2––ns
Outputs: CMD, DAT (referenced to CLK) –––––
Output delay time – Data Transfer Mode tODLY – – 14 ns
Output hold time tOH 2.5 – – ns
Total system capacitance (each line) CL – – 40 pF
tWL tWH
fPP
tTHL
tISU
tTLH
tIH
tODLY
Input
Output
50% VDD
tOH
SDIO_CLK
CARD
SDIO TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 142
SDIO Bus Timing Specifications in SDR Modes
Clock Timing
Figure 36: SDIO Clock Timing (SDR Modes)
Table 55: SDIO Bus Clock Timing Parameters (SDR Modes)
Parameter Symbol Minimum Maximum Unit Comments
–t
CLK 40 – ns SDR12 mode
20 – ns SDR25 mode
10 – ns SDR50 mode
4.8 – ns SDR104 mode
–t
CR, tCF –0.2 × t
CLK ns tCR, tCF < 2.00 ns (max) @ 100 MHz,
CCARD = 10 pF
tCR, tCF < 0.96 ns (max) @ 208 MHz,
CCARD = 10 pF
Clock duty
cycle
– 3070%–
tCLK
tCR
SDIO_CLK
tCF tCR
CARD
CARD
SDIO TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 143
Card Input Timing
Figure 37: SDIO Bus Input Timing (SDR Modes)
Table 56: SDIO Bus Input Timing Parameters (SDR Modes)
Symbol Minimum Maximum Unit Comments
SDR104 Mode
tIS 1.4 – ns CCARD = 10 pF, VCT = 0.975V
tIH 0.8 – ns CCARD = 5 pF, VCT = 0.975V
SDR50 Mode
tIS 3.00 – ns CCARD = 10 pF, VCT = 0.975V
tIH 0.8 – ns CCARD = 5 pF, VCT = 0.975V
tIS
SDIO_CLK
tIH
CMD input
DAT[3:0] input
SDIO TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 144
Card Output Timing
Figure 38: SDIO Bus Output Timing (SDR Modes up to 100 MHz)
Figure 39: SDIO Bus Output Timing (SDR Modes 100 MHz to 208 MHz)
Table 57: SDIO Bus Output Timing Parameters (SDR Modes up to 100 MHz)
Symbol Minimum Maximum Unit Comments
tODLY –7.5nst
CLK 10 ns CL= 30 pF using driver type B for SDR50
tODLY – 14.0 ns tCLK 20 ns CL= 40 pF using for SDR12, SDR25
tOH 1.5 – ns Hold time at the tODLY (min) CL= 15 pF
tODLY
SDIO_CLK
tOH
CMD input
DAT[3:0] input
tCLK
tOP
SDIO_CLK
CMD input
DAT[3:0] input
tCLK
tODW
SDIO TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 145
•tOP = +1550 ps for junction temperature of tOP = 90°C during operation.
•tOP = –350 ps for junction temperature of tOP = –20°C during operation.
•tOP = +2600 ps for junction temperature of tOP = –20°C to +125°C during operation.
Figure 40: ∆tOP Consideration for Variable Data Window (SDR 104 Mode)
Table 58: SDIO Bus Output Timing Parameters (SDR Modes 100 MHz to 208 MHz)
Symbol Minimum Maximum Unit Comments
tOP 0 2 UI Card output phase
tOP –350 +1550 ps Delay variation due to temp change after tuning
tODW 0.60 – UI tODW = 2.88 ns @ 208 MHz
ǻtOP =
1550 ps
Sampling point after tuning
ǻtOP =
–350 ps
Data valid window
Data valid window
Data valid window
Sampling point after card junction heating
by +90°C from tuning temperature
Sampling point after card junction cooling
by –20°C from tuning temperature
CLK
SDIO TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 146
SDIO Bus Timing Specifications in DDR50 Mode
Figure 41: SDIO Clock Timing (DDR50 Mode)
Table 59: SDIO Bus Clock Timing Parameters (DDR50 Mode)
Parameter Symbol Minimum Maximum Unit Comments
–t
CLK 20 – ns DDR50 mode
–t
CR,tCF – 0.2 × tCLK ns tCR, tCF < 4.00 ns (max) @50 MHz,
CCARD = 10 pF
Clock duty
cycle
–45 55 %–
tCLK
tCR
SDIO_CLK
tCF tCR
Avanab
tIsu CCARD
tIH CCARD
tIsuzx CCARD
tIHzx CCARD
ODLVZX CCARD
ODLVZX CCARD
SDIO TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 147
Data Timing
Figure 42: SDIO Data Timing (DDR50 Mode)
Table 60: SDIO Bus Timing Parameters (DDR50 Mode)
Parameter Symbol Minimum Maximum Unit Comments
Input CMD
Input setup time tISU 6–nsC
CARD < 10 pF (1 Card)
Input hold time tIH 0.8 – ns CCARD < 10 pF (1 Card)
Output CMD
Output delay time tODLY –13.7nsC
CARD < 30 pF (1 Card)
Output hold time tOH 1.5 – ns CCARD < 15 pF (1 Card)
Input DAT
Input setup time tISU2x 3–nsC
CARD < 10 pF (1 Card)
Input hold time tIH2x 0.8 – ns CCARD < 10 pF (1 Card)
Output DAT
Output delay time tODLY2x –7.5nsC
CARD < 25 pF (1 Card)
Output hold time tODLY2x 1.5 – ns CCARD < 15 pF (1 Card)
tISU2x
SDIO_CLK
DAT[3:0]
input
FPP
tIH2x tISU2x tIH2x
Invalid Invalid Invalid InvalidData Data Data
Data Data Data
tODLY2x
(min)
tODLY2x
(min)
tODLY2x (max) tODLY2x (max)
DAT[3:0]
output
In DDR50 mode, DAT[3:0] lines are sampled on both
edges of the clock (not applicable for CMD line)
Available timing
window for card
output transition
Available timing
window for host to
sample data from card
PCI Express Interface ParametersBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 148
PCI Express Interface Parameters
Table 61: PCI Express Interface Parameters
Parameter Symbol Comments Minimum Typical Maximum Unit
General
Baud rate BPS – – 5 – Gbau
d
Reference clock
amplitude
Vref LVPECL, AC coupled 1 – – V
Receiver
Differential termination ZRX-DIFF-DC Differential termination 80 100 120
DC impedance ZRX-DC DC common-mode
impedance
40 50 60
Powered down
termination (POS)
ZRX-HIGH-IMP-DC-
POS
Power-down or RESET
high impedance
100k – –
Powered down
termination (NEG)
ZRX-HIGH-IMP-DC-
NEG
Power-down or RESET
high impedance
1k – –
Input voltage VRX-DIFFp-p AC coupled, differential
p-p
175 – – mV
Jitter tolerance TRX-EYE Minimum receiver eye
width
0.4 – – UI
Differential return loss RLRX-DIFF Differential return loss 10 – – dB
Common-mode return
loss
RLRX-CM Common-mode return
loss
6––dB
Unexpected electrical
idle enter detect
threshold integration
time
TRX-IDEL-DET-DIFF-
ENTERTIME
An unexpected
electrical idle must be
recognized no longer
than this time to signal
an unexpected idle
condition.
––10ms
Signal detect threshold VRX-IDLE-DET-
DIFFp-p
Electrical idle detect
threshold
65 – 175 mV
Transmitter
Output voltage VTX-DIFFp-p Differential p-p,
programmable in 16
steps
0.8 – 1200 mV
Output voltage rise
time
VTX-RISE 20% to 80% 0.125
(2.5 GT/s)
0.15
(5 GT/s)
–– UI
Output voltage fall time VTX-FALL 80% to 20% 0.125
(2.5 GT/s)
0.15
(5 GT/s)
–– UI
PCI Express Interface ParametersBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 149
RX detection voltage
swing
VTX-RCV-DETECT The amount of voltage
change allowed during
receiver detection.
– – 600 mV
TX AC peak common-
mode voltage
(5 GT/s)
VTX-CM-AC-PP TX AC common mode
voltage (5 GT/s)
– – 100 mV
TX AC peak common-
mode voltage
(2.5 GT/s)
VTX-CM-AC-P TX AC common mode
voltage (2.5 GT/s)
––20mV
Absolute delta of DC
common-model
voltage during L0 and
electrical idle
VTX-CM-DC-ACTIVE-
IDLE-DELTA
Absolute delta of DC
common-model voltage
during L0 and electrical
idle.
0 – 100 mV
Absolute delta of DC
common-model
voltage between D+
and D-
VTX-CM-DC-LINE-
DELTA
DC offset between D+
and D-
0–25mV
Electrical idle
differential peak output
voltage
VTX-IDLE-DIFF-AC-p Peak-to-peak voltage 0 – 20 mV
TX short circuit
current
ITX-SHORT Current limit when TX
output is shorted to
ground.
––90mA
DC differential TX
termination
ZTX-DIFF-DC Low impedance defined
during signaling
(parameter is captured
for 5.0 GHz by RLTX-
DIFF)
80 – 120
Differential
return loss
RLTX-DIFF Differential
return loss
10 (min.)
for 0.05:
1.25 GHz
8 (min.) for
1.25:
2.5 GHz
–– dB
Common-mode
return loss
RLTX-CM Common-mode return
loss
6––dB
TX eye width TTX-EYE Minimum TX
eye width
0.75 – – UI
Table 61: PCI Express Interface Parameters (Cont.)
Parameter Symbol Comments Minimum Typical Maximum Unit
'H: *z': \4
gr’fi fi\ mplfi fiq' \_/ \Jfiq pfipmg/i
JTAG TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 150
JTAG Timing
SWD Timing
The probe outputs data to SWDIO on the falling edge of SWDCLK and captures data from SWDIO on the rising
edge of SWDCLK. The target outputs data to SWDIO on the rising edge of SWDCLK and captures data from
SWDIO on the rising edge of SWDCLK. SWD timing is defined through the combination of Figure 43 and
Ta b l e 63 .
Figure 43: SWD Read and Write Timing
Table 62: JTAG Timing Characteristics
Signal Name Period Output
Maximum Output
Minimum Setup Hold
TCK 125 ns – – – –
TDI – – – 20 ns 0 ns
TMS – – – 20 ns 0 ns
TDO – 100 ns 0 ns – –
JTAG_TRST 250 ns – – – –
Table 63: SWD Read and Write Timing Parameters
Parameter Description Min. Max. Units
Tcyc SWDCLK cycle time 125 – ns
Thigh SWDCLK high period 50 – ns
Tlow SWDCLK low period 50 – ns
Tos SWDIO output skew to the falling edge of SWDCLK –5 5 ns
Tis Input setup time between SWDIO and the rising edge of SWDCLK 20 – ns
Tih Input hold time between SWDIO and the rising edge of SWDCLK 0 100 ns
Stop Park
Acknowledge
Parity StartData DataTri-State
Thigh Tlow
Tri-State
Tri-State
TOS
Stop Park
Acknowledge
StartTri-State
Tri-State
Tri-State
RVI probe output to SWDIO
RVI probe output to SWDCLK
Target output to SWDIO ParityData Data
RVI probe output to SWDIO
RVI probe output to SWDCLK
Target output to SWDIO
Tih
Tis
Write Cycle
Read Cycle
Power-Up Sequence and TimingBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 151
Section 21: Power-Up Sequence and
Timing
Sequencing of Reset and Regulator Control Signals
The BCM43455 has two signals that allow the host to control power consumption by enabling or disabling the
Bluetooth, WLAN, and internal regulator blocks. These signals are described below. Additionally, diagrams are
provided to indicate proper sequencing of the signals for various operational states (see Figure 44, Figure 45
on page 152, and Figure 46 on page 153 and Figure 47 on page 153). The timing values indicated are minimum
required values; longer delays are also acceptable.
Description of Control Signals
•WL_REG_ON: Used by the PMU to power-up the WLAN section. It is also OR-gated with the BT_REG_ON
input to control the internal BCM43455 regulators. When this pin is high, the regulators are enabled and the
WLAN section is out of reset. When this pin is low the WLAN section is in reset. If both the BT_REG_ON
and WL_REG_ON pins are low, the regulators are disabled.
•BT_REG_ON: Used by the PMU (OR-gated with WL_REG_ON) to power-up the internal BCM43455
regulators. If both the BT_REG_ON and WL_REG_ON pins are low, the regulators are disabled. When this
pin is low and WL_REG_ON is high, the BT section is in reset.
Note: For both the WL_REG_ON and BT_REG_ON pins, there should be at least a 10 ms time delay
between consecutive toggles (where both signals have been driven low). This is to allow time for the
CBUCK regulator to discharge. If this delay is not followed, then there may be a VDDIO in-rush current
on the order of 36 mA during the next PMU cold start.
Note: The BCM43455 has an internal power-on reset (POR) circuit. The device will be held in reset
for a maximum of 110 ms after VDDC and VDDIO have both passed the POR threshold. Wait at least
150 ms after VDDC and VDDIO are available before initiating PCIe accesses.
Note: VBAT should not rise 10%–90% faster than 40 microseconds. VBAT should be up before or at
the same time as VDDIO. VDDIO should NOT be present first or be held high before VBAT is high.
LLL
Sequencing of Reset and Regulator Control SignalsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 152
Control Signal Timing Diagrams
Figure 44: WLAN = ON, Bluetooth = ON
Figure 45: WLAN = OFF, Bluetooth = OFF
32.678 kHz
Sleep Clock
VBAT*
VDDIO
WL_REG_ON
BT_REG_ON
90% of VH
~ 2 Sleep cycles
*Notes:
1. VBAT should not rise 10%–90% faster than 40 microseconds.
2. VBAT should be up before or at the same time as VDDIO. VDDIO should NOT be present first
or be held high before VBAT is high.
VBAT*
VDDIO
WL_REG_ON
BT_REG_ON
32.678 kHz
Sleep Clock
*Notes:
1. VBAT should not rise 10%–90% faster than 40 microseconds.
2. VBAT should be up before or at the same time as VDDIO. VDDIO should NOT be present first or be held high before
VBAT is high.
\HHIHI‘IHH‘WH‘HL
\
/
IIHHHHHHHHHIUL
Sequencing of Reset and Regulator Control SignalsBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 153
Figure 46: WLAN = ON, Bluetooth = OFF
Figure 47: WLAN = OFF, Bluetooth = ON
VBAT*
VDDIO
WL_REG_ON
BT_REG_ON
90% of VH
~ 2 Sleep cycles
32.678 kHz
Sleep Clock
*Notes:
1. VBAT should not rise 10%–90% faster than 40 microseconds.
2. VBAT should be up before or at the same time as VDDIO. VDDIO should NOT be present first or be held high before
VBAT is high.
VBAT*
VDDIO
WL_REG_ON
BT_REG_ON
90% of VH
~ 2 Sleep cycles
32.678 kHz
Sleep Clock
*Notes:
1. VBAT should not rise 10%–90% faster than 40 microseconds.
2. VBAT should be up before or at the same time as VDDIO. VDDIO should NOT be present first or be held high before
VBAT is high.
Package InformationBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 154
Section 22: Package Information
Package Thermal Characteristics
Junction Temperature Estimation and PSIJT Versus THETAJC
Package thermal characterization parameter PSI–JT (
JT) yields a better estimation of actual junction
temperature (TJ) versus using the junction-to-case thermal resistance parameter Theta–JC (JC). The reason
for this is that JC assumes that all the power is dissipated through the top surface of the package case. In actual
applications, some of the power is dissipated through the bottom and sides of the package.
JT takes into
account power dissipated through the top, bottom, and sides of the package. The equation for calculating the
device junction temperature is:
TJ = TT + P x
JT
Where:
•T
J = Junction temperature at steady-state condition (°C)
•T
T = Package case top center temperature at steady-state condition (°C)
• P = Device power dissipation (Watts)
•
JT = Package thermal characteristics; no airflow (°C/W)
Environmental Characteristics
For environmental characteristics data, see Table 25: “Environmental Ratings,” on page 98.
Table 64: Package Thermal Characteristicsa
a. No heat sink, TA = 70°C. This is an estimate, based on a 4-layer PCB that conforms to EIA/JESD51–7
(101.6 mm × 101.6 mm × 1.6 mm) and P = 1.119W continuous dissipation.
Characteristic WLBGA
JA (°C/W) (value in still air) 38.73
JB (°C/W) 1.97
JC (°C/W) 3.16
JT (°C/W) 9.3
JB (°C/W) 16.21
Maximum Junction Temperature Tj (°C) 123.6
Maximum Power Dissipation (W) 1.38
71
m
MTTQ
4r
‘CLFER
HDE
nmusloml nrtxmcts Mechanical InformationBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 155
Section 23: Mechanical Information
Figure 48: 140-Ball WLBGA Package Mechanical Information
123456789TOH
0000000000Q
0000000000000
000000000000
0000000000000
0000000000000
| a;
319
83.7. 3
man. 0.
L N
M
(om
Mechanical InformationBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 156
Figure 49: 140-Balls WLBGA Keep-out Areas for PCB Layout—Top View with Balls Facing Down
Note: No top-layer metal is allowed in keep-out areas.
Note: A DXF file for the WLBGA keep-out area is available for importation into a layout program.
Contact your Broadcom FAE for more information.
Keep out
#
Horizental
(mm)
vertical
(mm)
1
0.11 0.11
2
0.09 0.09
3
0.12 0.12
4
0.08 0.08
5
0.08 0.08
6
0.20 0.20
7
0.15 0.15
8
0.14 0.14
9
0.17 0.14
10
0.05 0.05
11
0.15 0.15
12
0.27 0.27
13
0.16 0.16
14
0.15 0.15
15
0.18 0.18
16
0.13 0.10
17
0.13 0.13
18
0.13 0.13
19
0.18 0.18
20
0.08 0.08
21
0.14 0.18
22
0.10 0.10
23
0.07 0.07
24
0.07 0.07
Ordering InformationBCM43455 Preliminary Data Sheet
BROADCOM CONFIDENTIAL
Broadcom®
November 5, 2015 • 43455-DS109-R Page 157
Section 24: Ordering Information
Table 65: Part Ordering Information
Part Number Package Description
Operating
Ambient
Temperature
BCM43455XKUBG 140-ball WLBGA
(4.47 mm × 5.27 mm,
0.4 mm pitch)
Dual-band 2.4 GHz and 5 GHz
WLAN+ BT 4.1 + FMRX
–30°C to +85°C
BCM43455HKUBG 140-ball WLBGA
(4.47 mm × 5.27 mm,
0.4 mm pitch)
Dual-band 2.4 GHz and 5 GHz
WLAN + BT 4.1 + FMRX, BSP
–30°C to +85°C
n
BROADGOM.
N w
Caw
legrything
Phone: 949-926-5000
Fax: 949-926-5203
E-mail: info@broadcom.com
Web: www.broadcom.com
Broadcom Corporation
5300 California Avenue
Irvine, CA 92617
© 2015 by BROADCOM CORPORATION. All rights reserved.
43455-DS109-R November 5, 2015
Broadcom® Corporation reserves the right to make changes without further notice to any products or
data herein to improve reliability, function, or design.
Information furnished by Broadcom Corporation is believed to be accurate and reliable. However,
Broadcom Corporation does not assume any liability arising out of the application or use of this
information, nor the application or use of any product or circuit described herein, neither does it
convey any license under its patent rights nor the rights of others.
BCM43455 Preliminary Data Sheet
®
Products related to this Datasheet
IC RF TXRX+MCU BLUTOOTH 140UFBGA
